AEM Electronics - V2 Water/Methanol Injection Kit - Multi Input - For HD Diesel and high output gasoline applications

Check products, lead time and fitting infos in the tabs below!
Sku: 30-3351
Availability: More than 10 in Stock in our US Warehouse.
Shipping time is additional.
$1,082.00
Maximum quantity available reached.
Specifications:
Manufacturer: AEM Electronics
Part Number: 30-3351
Racers with high compression naturally aspirated engines or boosted engines who are looking for an alternative to boost dependent water/methanol injection controllers have a solution in AEM's Multi-Input WMI controller. The multiple input design enables users to install AEM’s Water/Methanol Injection Kit on both high compression naturally aspirated vehicles (NA) via the MAF/IDC settings and ultra-high boost vehicles (above 35 PSI) using an external MAP sensor. The Multi-Input controller works with an external 0-5v voltage-based external MAP sensor, a frequency based input for Injector Duty Cycle (IDC), frequency-based mass airflow (MAF), or a 0-5v voltage-based MAF.

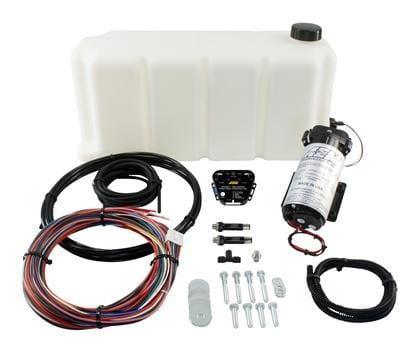

This kit includes a five-gallon tank kit with two injectors for HD Diesel and high output gasoline applications.

The AEM Water/Methanol Injection System Advantage
Water/methanol injection for gas engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation on forced induction and high compression naturally aspirated (NA) race engines. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.

Features:

Robust, Easy to Use Controller Designs
The new controller designs feature large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance. A plug is integrated into the controller housing for mating to the redesigned wiring harness’s positive-lock connector. The Boost Dependent controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back. Both controller housings feature an easy to access integrated fuse and molded mounting tabs.



Simplified Wiring
AEM’s Water/Methanol Injection kit’s wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. Both the power and ground wires for the pump are included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.



Integrated Boost Safe Feature
The controllers in AEM’s Water Methanol systems include an integrated “Boost Safe” output feature that monitors the entire injection system and triggers a ground signal via an output if it detects a voltage-related error (short, bad connection, broken wire, overheated pump, high or low voltage signal, etc.), allowing users to define their failsafe strategy from something as simple as flashing a warning light to more advanced strategies like pulling boost or ignition, or switching fuel maps on a standalone engine management system. Combined with the integral and highly accurate conductive low-fluid switch in the tank, “Boost Safe” can also put your engine in safe mode before the system runs dry. This exclusive feature is found only on AEM Water/Methanol Injection Systems.

Heavy-Duty High Pressure Injection Pump
AEM’s internally-bypassed water/methanol injection pump does not cycle on and off and provides quiet, smooth operation. It features robust construction including integral hose fittings, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery.



Low-Profile 5 Gallon Tank
AEM’s Diesel Water/Meth systems are available with or without a low-profile 5 gallon tank. The 5 Gallon tank includes a high-tech conductive low fluid level indicator with a positive lock connector and color matched wires to the wiring harness, and baffles to reduce fluid slosh.



Machined Billet Injectors and Nozzles
AEM includes one precision-machined billet injector in its gasoline Water/Methanol Injection kit. It features an integral check valve to prevent unintended fluid flow. Three billet injector nozzles are included for matching water/methanol flow to an engine’s horsepower output. Click the link for a Nozzle Flow Guide graph.



Revised Flow Control Strategy for More Linear Fluid Delivery
AEM’s engineers spent extensive time revamping the controller’s flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine’s need for water/methanol injection, which further optimizes charge air cooling and detonation control.

Monitor the methanol flow and avoid engine damage with the methanol flow gauges here
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our US Warehouse to any global location. Shipping via DHL/Fedex within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Water/Methanol Injection Advantages for Gas Engines:

Reduces Air Inlet Charge Temps
The term “liquid intercooling” with water/methanol injection refers to a highly atomized mist of water/methanol that is injected into the airstream and begins to evaporate. As it does, this evaporative effect reduces air charge temps by as much as 100 degrees, and delivers a more oxygen-rich air charge.

Reduces Detonation (Knock)
Water absorbs heat, and methanol is a cool burning, anti-knock rated fuel. When combined and introduced into the inlet stream, they can effectively increase your vehicle’s anti-knock index so you can reliably increase boost pressure and advance ignition timing using pump gas.

Reduces Carbon Deposits
Modern vehicles fitted with Exhaust Gas Recirculation (EGR) devices for emissions control promote heavy carbon build up inside the air intake. This carbon build-up can create ‘hot spots’ in the combustion chambers that can cause detonation. Water/methanol injection has a ‘steam cleaning’ effect that reduces this carbon build up, and in some cases can increase fuel economy.

Water/Methanol Injection Advantages For Diesel Engines:

Reduces Air Inlet Charge Temps
Water/methanol’s “liquid intercooling” effect on turbo Diesel engines can reduce air charge temps by as much as 100 degrees, and deliver a more oxygen-rich air charge.

Enhances Combustion & Efficiency
In addition to cooling air inlet temps, as the water absorbs heat in the combustion chamber and converts to steam, the steam’s expansion rate increases the mean effective cylinder pressure without causing dangerous pressure spikes. This effective increase in cylinder pressure combined with methanol’s promotion of complete combustion allows your Diesel engine to burn fuel more completely. When fuel is being burned more completely less is wasted, which can increase fuel economy.

Reduces Exhaust Gas Temperatures (EGTs)
Because Diesel vehicles using water/methanol injection burn fuel more completely, less un-burnt fuel is present in the exhaust manifold where it can flash ignite to increase EGTs and create particulate matter (soot). Water/methanol injection eliminates this secondary combustion of raw fuel in the exhaust manifold to reduce EGTs by up to 250 degrees, and reduces harmful particulates to extend engine life (and that expensive particulate filter).
