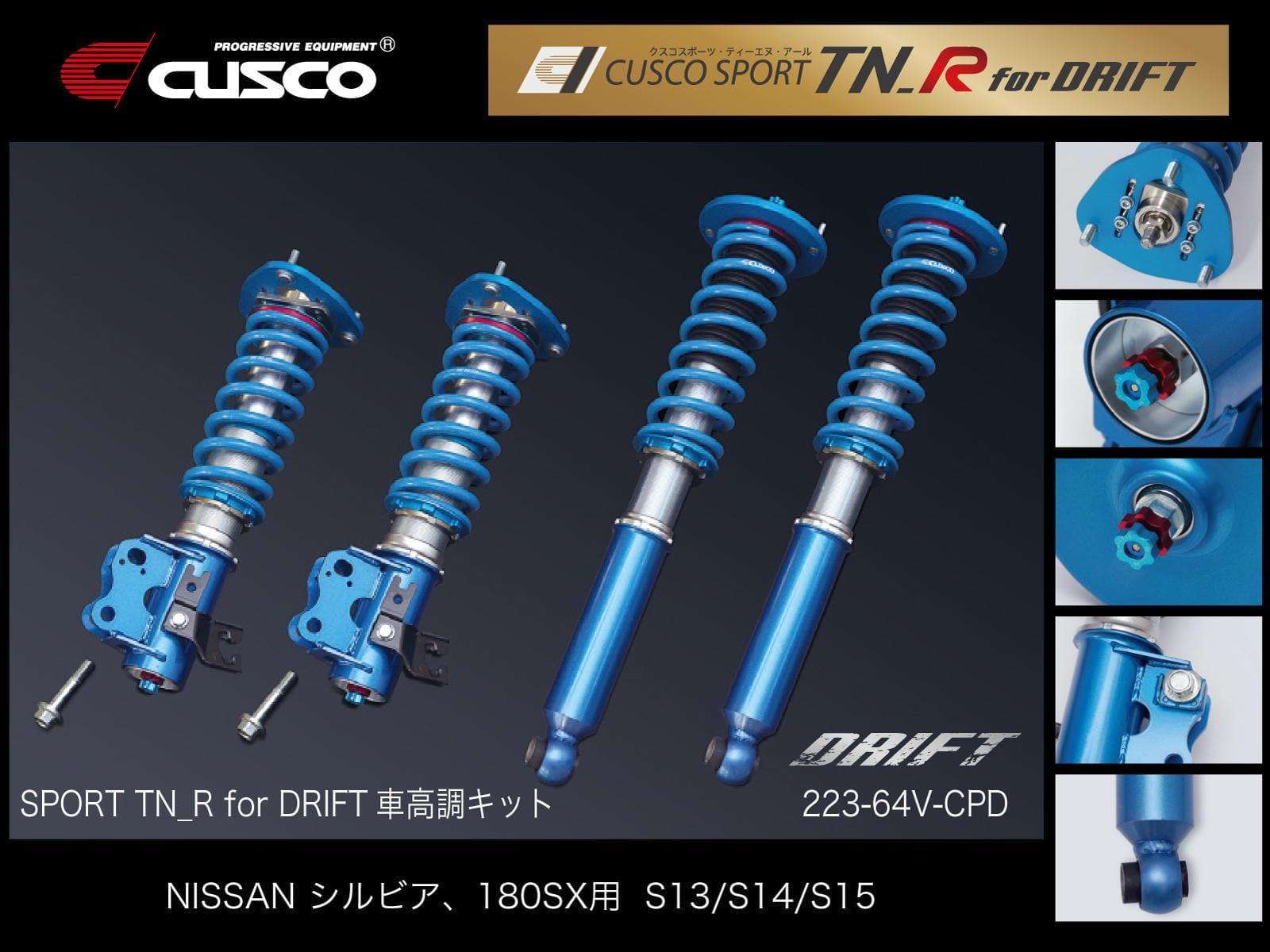

Cusco Japan - Sport R for Drift Coilover Kit - Nissan Silvia S14
Contact Us
Share this product on Socials
Regular price
$2,217.60
Regular price
-15%
$2,599.00
Sale price
$2,217.60
Description
Specifications:
Manufacturer: Cusco Japan
Part Number: 222-64R-CPD
Damping force adjustment: 1Way/24-step adjustment
Upper mount specification
Front: Camber adjustment type/Pillow Ball (option1 setting available)
Rear: Camber fixed type, pillow Ball
Recommended vehicle height adjustment width:
Front -50 to 0mm
Rear -65 to 0mm
Reference vehicle height:
Front -30mm
Rear -30mm
Maximum vehicle height adjustment width:
Front -95 to 0mm
Rear -120 to 0mm
Spring Standard rate:
Front 065-200-8kgf/mm
Rear 065-250-5kgf/mm
Spring Option rate:
Front (7/9/10kgf/mm)
Rear (4/6/7/8kgf/mm)
Option 1: Camber caster Adjustable pillow upper mount can be changed (22,000)
The SPORT R was developed for all-out track cars participating in full-scale racing, time attack competitions.
These coilovers are optimised for track compound tyres.
Monotube Construction:
By allowing for a larger diameter piston for rigidity and creating a larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.
24-Step Adjustment Range:
Patented Cusco needle-valves are precision fitted for precise adjustments .
Full Length Adjustment:
The damper body case is made to allow for maximum height adjustment without influencing the spring preloads.
As the damper stroke can be adjusted independently, the stroke/spring relation can remain ideal regardless of the height setting, enhancing the handling limits all the while providing a compliant ride and suspension functionnality.
Cusco Sport "Blue Spring":
The springs are shot-peened and wound using advanced anti-sagging metallurgy process.
Precision Crafted Upper Mounts:
These upper mounts are made with standard camber adjusments, or with Cusco's new "CC" Camber/Caster adjustable units, optimising alignment for even finer adjustments.
Inverted Piston Design:
all McPherson strut type applications come with inverted piston for superior durability and more precise performance as well.
Lower Bracket Camber Adjustment:
The lower bracket allows for additional camber to be dialed in through the use of correction bolts supplied with some McPherson type suspension units.
Manufacturer: Cusco Japan
Part Number: 222-64R-CPD
Damping force adjustment: 1Way/24-step adjustment
Upper mount specification
Front: Camber adjustment type/Pillow Ball (option1 setting available)
Rear: Camber fixed type, pillow Ball
Recommended vehicle height adjustment width:
Front -50 to 0mm
Rear -65 to 0mm
Reference vehicle height:
Front -30mm
Rear -30mm
Maximum vehicle height adjustment width:
Front -95 to 0mm
Rear -120 to 0mm
Spring Standard rate:
Front 065-200-8kgf/mm
Rear 065-250-5kgf/mm
Spring Option rate:
Front (7/9/10kgf/mm)
Rear (4/6/7/8kgf/mm)
Option 1: Camber caster Adjustable pillow upper mount can be changed (22,000)
The SPORT R was developed for all-out track cars participating in full-scale racing, time attack competitions.
These coilovers are optimised for track compound tyres.
Monotube Construction:
By allowing for a larger diameter piston for rigidity and creating a larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.
24-Step Adjustment Range:
Patented Cusco needle-valves are precision fitted for precise adjustments .
Full Length Adjustment:
The damper body case is made to allow for maximum height adjustment without influencing the spring preloads.
As the damper stroke can be adjusted independently, the stroke/spring relation can remain ideal regardless of the height setting, enhancing the handling limits all the while providing a compliant ride and suspension functionnality.
Cusco Sport "Blue Spring":
The springs are shot-peened and wound using advanced anti-sagging metallurgy process.
Precision Crafted Upper Mounts:
These upper mounts are made with standard camber adjusments, or with Cusco's new "CC" Camber/Caster adjustable units, optimising alignment for even finer adjustments.
Inverted Piston Design:
all McPherson strut type applications come with inverted piston for superior durability and more precise performance as well.
Lower Bracket Camber Adjustment:
The lower bracket allows for additional camber to be dialed in through the use of correction bolts supplied with some McPherson type suspension units.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part Fits :
Silvia | S14 Zenki | 1993-1996 | TC | SR20DET | I4
Silvia | S14 Kouki | 1996-1998 | TC | SR20DET | I4
Silvia | S14 Zenki | 1993-1996 | NA | SR20DE | I4
Silvia | S14 Kouki | 1996-1998 | NA | SR20DE | I4
Silvia | S14 Zenki | 1993-1996 | TC | SR20DET | I4
Silvia | S14 Kouki | 1996-1998 | TC | SR20DET | I4
Silvia | S14 Zenki | 1993-1996 | NA | SR20DE | I4
Silvia | S14 Kouki | 1996-1998 | NA | SR20DE | I4
