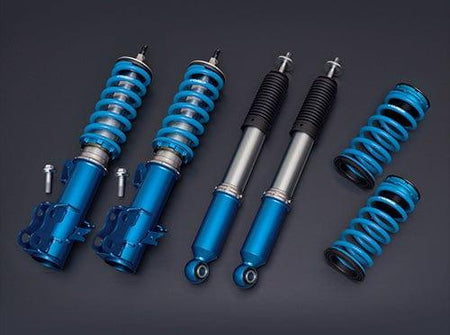

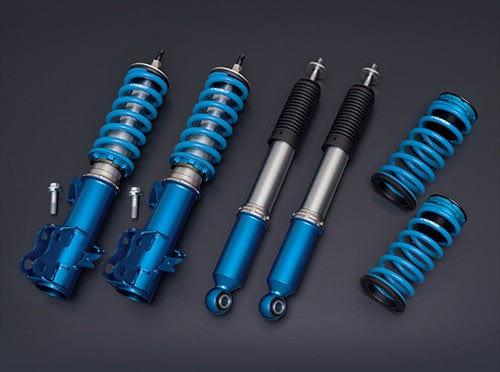

Cusco Japan - Sport S Coilover Kit - Honda Civic Type R FD2R
Contact Us
Share this product on Socials
Regular price
$2,217.60
Regular price
-15%
$2,599.00
Sale price
$2,217.60
Description
Specifications:
Manufacturer: Cusco Japan
Part Number: 329-64S-CN
Front: Full length adjustable
Rear: Stacking spacer adjustable
[24 levels of front and rear damping force adjustment] [ Upper mount] ?
Front: Camber adjustable pillow upper mount ?
Rear: Upper mountless [Front camber adjustment] ?Upper mount + Lower bracket knuckle eccentric bolt adjustment
Adjustment range -1.5° to -4.5° (reference value) [Standard spring]
Front: 8 kgf/mm (065-200-08E)
Rear: 8 kgf/mm (065-180-08E) ) [Optional rate spring]
Front: 7,9,10,11 kgf/mm
Rear: 5,6,7,9,10,11 kgf/mm
[Recommended vehicle height adjustment width*]
Front: -40 to -1 0mm
Rear: -40~-10mm
[Reference vehicle height]
Front: -20mm
Rear: -25mm
[Maximum vehicle height adjustment width]
Front: -65~0mm
Rear: -55~-10mm
The SPORT S was developed following the SPORT R specifications, but with damping force, sprint rates and stroke geared toward the streets, making them the ultimate weapon for users who like to track their daily car, without sacrificing too much on the comfort side.
To make the coilovers more street friendly, the rear upper mounts are made from reinforced rubber, increasing the ride comfort while reducing the noise.
Monotube Construction:
By allowing for a larger diameter piston for rigidity and creating a larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.
24-Step Adjustment Range:
Patented Cusco needle-valves are precision fitted for precise adjustments .
Full Length Adjustment:
The damper body case is made to allow for maximum height adjustment without influencing the spring preloads.
As the damper stroke can be adjusted independently, the stroke/spring relation can remain ideal regardless of the height setting, enhancing the handling limits all the while providing a compliant ride and suspension functionnality.
Cusco Sport "Blue Spring":
The springs are shot-peened and wound using advanced anti-sagging metallurgy process.
Precision Crafted Upper Mounts:
These upper mounts are made with standard camber adjusments, or with Cusco's new "CC" Camber/Caster adjustable units, optimising alignment for even finer adjustments.
Inverted Piston Design:
all McPherson strut type applications come with inverted piston for superior durability and more precise performance as well.
Lower Bracket Camber Adjustment:
The lower bracket allows for additional camber to be dialed in through the use of correction bolts supplied with some McPherson type suspension units.
Manufacturer: Cusco Japan
Part Number: 329-64S-CN
Front: Full length adjustable
Rear: Stacking spacer adjustable
[24 levels of front and rear damping force adjustment] [ Upper mount] ?
Front: Camber adjustable pillow upper mount ?
Rear: Upper mountless [Front camber adjustment] ?Upper mount + Lower bracket knuckle eccentric bolt adjustment
Adjustment range -1.5° to -4.5° (reference value) [Standard spring]
Front: 8 kgf/mm (065-200-08E)
Rear: 8 kgf/mm (065-180-08E) ) [Optional rate spring]
Front: 7,9,10,11 kgf/mm
Rear: 5,6,7,9,10,11 kgf/mm
[Recommended vehicle height adjustment width*]
Front: -40 to -1 0mm
Rear: -40~-10mm
[Reference vehicle height]
Front: -20mm
Rear: -25mm
[Maximum vehicle height adjustment width]
Front: -65~0mm
Rear: -55~-10mm
The SPORT S was developed following the SPORT R specifications, but with damping force, sprint rates and stroke geared toward the streets, making them the ultimate weapon for users who like to track their daily car, without sacrificing too much on the comfort side.
To make the coilovers more street friendly, the rear upper mounts are made from reinforced rubber, increasing the ride comfort while reducing the noise.
Monotube Construction:
By allowing for a larger diameter piston for rigidity and creating a larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.
24-Step Adjustment Range:
Patented Cusco needle-valves are precision fitted for precise adjustments .
Full Length Adjustment:
The damper body case is made to allow for maximum height adjustment without influencing the spring preloads.
As the damper stroke can be adjusted independently, the stroke/spring relation can remain ideal regardless of the height setting, enhancing the handling limits all the while providing a compliant ride and suspension functionnality.
Cusco Sport "Blue Spring":
The springs are shot-peened and wound using advanced anti-sagging metallurgy process.
Precision Crafted Upper Mounts:
These upper mounts are made with standard camber adjusments, or with Cusco's new "CC" Camber/Caster adjustable units, optimising alignment for even finer adjustments.
Inverted Piston Design:
all McPherson strut type applications come with inverted piston for superior durability and more precise performance as well.
Lower Bracket Camber Adjustment:
The lower bracket allows for additional camber to be dialed in through the use of correction bolts supplied with some McPherson type suspension units.
