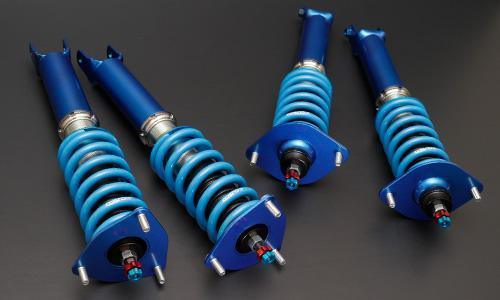

Cusco Japan - Sport TN-S Coilover Kit - Mazda MX-5 Miata Roadster NB

Check products, lead time and fitting infos in the tabs below!
Sku: 404 64W CN
Vendor: Cusco Japan
Availability: Made to Order 45 to 60 days Lead Time.
Shipping time is additional. Choose your option in the cart page.
$2,347.60 $2,723.00
Maximum quantity available reached.
Specifications:
Manufacturer: Cusco Japan
Part Number: 404 64W CN
Type: Sport TN.S Ref 404 64W CN
Front Specs: 24 steps Full-length Adjustable
Recommended Height F/R: -50 to -15 ? -50 to -5
Maximum adjustment F/R: -65 to 0 ? -50 to -5
Spring Rates (Kg): 8 or (7/9/10/11/12/14)

Rear Specs: 24 steps Full-length Adjustable
Spring Rates (Kg): 6 or (5/7/8/9/10/12)
Options:
Additional Infos:

The SPORT TN-S was developed following the SPORT R specifications, but with damping force, sprint rates and stroke geared toward the streets, making them the ultimate weapon for users who like to track their daily car, without sacrificing too much on the comfort side.
These coilovers are equipped with Cusco's TNS "Twin Needle System", which allows independent adjustment of compression and rebound
To make the coilovers more street friendly, the rear upper mounts are made from reinforced rubber, increasing the ride comfort while reducing the noise.

Monotube Construction:
By allowing for a larger diameter piston for rigidity and creating a larger volume chamber, the system allows for higher range of piston speeds, and finer level of damper control at all stroke speeds.

TNS 24-Step Adjustment Range:
Thanks to the TNS "Twin Needle System", it is possible to adjust both the Compression and Rebound independently by 24 steps each, delivering the most precise settings possible.

Full Length Adjustment:
The damper body case is made to allow for maximum height adjustment without influencing the spring preloads.
As the damper stroke can be adjusted independently, the stroke/spring relation can remain ideal regardless of the height setting, enhancing the handling limits all the while providing a compliant ride and suspension functionnality.

Cusco Sport "Blue Spring":
The springs are shot-peened and wound using advanced anti-sagging metallurgy process.

Precision Crafted Upper Mounts:
These upper mounts are made with standard camber adjusments, or with Cusco's new "CC" Camber/Caster adjustable units, optimising alignment for even finer adjustments.

Inverted Piston Design:
all McPherson strut type applications come with inverted piston for superior durability and more precise performance as well.

Lower Bracket Camber Adjustment:
The lower bracket allows for additional camber to be dialed in through the use of correction bolts supplied with some McPherson type suspension units.
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

MX-5 Miata Roadster | NB6C Zenki | 1998-2000 | NA | B6-ZE | I4
MX-5 Miata Roadster | NB6C Kouki | 2000-2005 | NA | B6-ZE | I4
MX-5 Miata Roadster | NB8C | 1998-2000 | NA | BP-ZE | I4
MX-5 Miata Roadster | NB8C | 2004-2005 | TC | BP-ZET | I4
