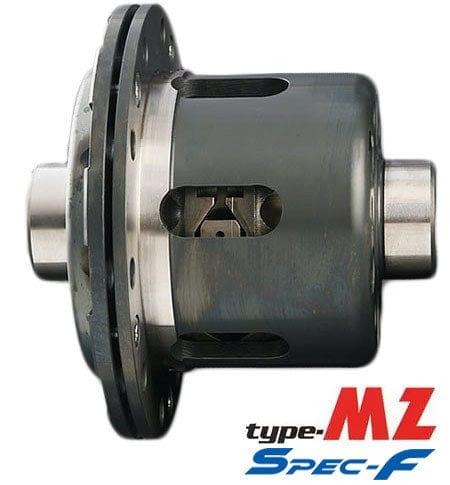

Cusco Japan Type Mz Spec F - 1 way (1&2way) Rear LSD - Nissan Silvia - S13 (MT)
Specifications:
Manufacturer: Cusco Japan
Part Number: LSD 264 ETB
LSD Model: Type Mz Spec F
LSD Type: 1 way (1&2way)
Transmission Type: MT
Position: Rear
IMPORTANT: Read the fitting tab to ensure this part fits on your car!!
The Spec-F LSD feature a special flat friction clutch plates which translates to a milder initial engagement when acceleration is ON or OFF. This setup is perfect for rear wheel drive setups in circuit situations, as well as minimizing power loss for low horsepowered vehicles. The Spec-F retains the Type MZ specs yet increases smoothness in cornering due to its FFP (Flat Friction Plate). These plates increase oil passage and therefore give a very polyvalent LSD for sunday racers, but also street roads.
The type MZ is perfect for a mid to high power vehicules. With its 24 plates within its assembly, this LSD ensure a better torque and power distribution during hard cornering. Its Lower response is of great benefit to your drivetrain durability and perfect to keep perfect control in sharp cornering and/or drifting.
Type MZ limited slip differential is designed where the activation pressure opposes the direction of the initial torque with the utilization of the cone spring. The LSD operation first becomes engaged when the opposing pressures start working against one another.
The Type MZ features the highest rated initial torque rating than the rest of any other Cusco LSD models. This is due to the high pressure cone spring which engages full clutch pack lock at a linear rate.
Pressure ring features dual profiles to switch between (1 way & 1.5 way) (1 way & 2 way) (1.5 way & 2 way) without purchasing additional components!Activates under acceleration while the under-steer under deceleration is less than on a 2 way LSD. Recommended for those who have a hard time with under-steer.
All Cusco limited slip differentials have the option of adjusting the responsiveness and the locking characteristics the LSD by the combinaion of each plate and its designation of how it is stacked. Cusco's exclusive clutch plate grooves are cut radially enabling instant oil movement, thus improving efficiency and durability. The pressure ring contact surface is polished for an even and flat contact with the clutch plates. The exclusive Cusco Oil Through System enhances great oil circulation and supply to the necessary areas when used with the Cusco LSD Oil.
Manufacturer: Cusco Japan
Part Number: LSD 264 ETB
LSD Model: Type Mz Spec F
LSD Type: 1 way (1&2way)
Transmission Type: MT
Position: Rear
IMPORTANT: Read the fitting tab to ensure this part fits on your car!!
The Spec-F LSD feature a special flat friction clutch plates which translates to a milder initial engagement when acceleration is ON or OFF. This setup is perfect for rear wheel drive setups in circuit situations, as well as minimizing power loss for low horsepowered vehicles. The Spec-F retains the Type MZ specs yet increases smoothness in cornering due to its FFP (Flat Friction Plate). These plates increase oil passage and therefore give a very polyvalent LSD for sunday racers, but also street roads.
The type MZ is perfect for a mid to high power vehicules. With its 24 plates within its assembly, this LSD ensure a better torque and power distribution during hard cornering. Its Lower response is of great benefit to your drivetrain durability and perfect to keep perfect control in sharp cornering and/or drifting.
Type MZ limited slip differential is designed where the activation pressure opposes the direction of the initial torque with the utilization of the cone spring. The LSD operation first becomes engaged when the opposing pressures start working against one another.
The Type MZ features the highest rated initial torque rating than the rest of any other Cusco LSD models. This is due to the high pressure cone spring which engages full clutch pack lock at a linear rate.
Pressure ring features dual profiles to switch between (1 way & 1.5 way) (1 way & 2 way) (1.5 way & 2 way) without purchasing additional components!Activates under acceleration while the under-steer under deceleration is less than on a 2 way LSD. Recommended for those who have a hard time with under-steer.
All Cusco limited slip differentials have the option of adjusting the responsiveness and the locking characteristics the LSD by the combinaion of each plate and its designation of how it is stacked. Cusco's exclusive clutch plate grooves are cut radially enabling instant oil movement, thus improving efficiency and durability. The pressure ring contact surface is polished for an even and flat contact with the clutch plates. The exclusive Cusco Oil Through System enhances great oil circulation and supply to the necessary areas when used with the Cusco LSD Oil.
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :
Silvia | S13 | 1988-1991 | TC | CA18DET | I4
Silvia | S13 | 1988-1993 | NA | CA18DE | I4
Silvia | S13 | 1988-1991 | TC | CA18DET | I4
Silvia | S13 | 1988-1993 | NA | CA18DE | I4
