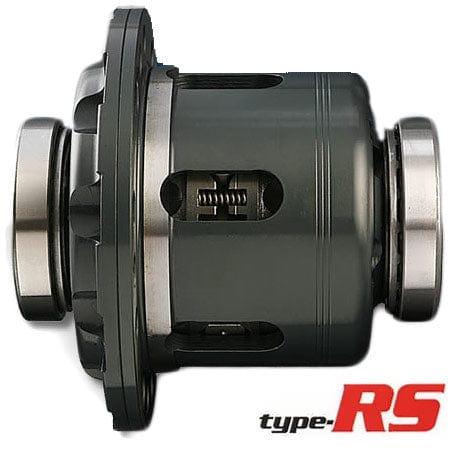

Cusco Japan Type Rs - 1 way (1&2way) Rear LSD - Subaru Impreza WRX - GC8 APPLIED F to G (MT)
Specifications:
Manufacturer: Cusco Japan
Part Number: LSD 183 F
LSD Model: Type Rs
LSD Type: 1 way (1&2way)
Transmission Type: MT
Position: Rear
IMPORTANT: Read the fitting tab to ensure this part fits on your car!!
The type RS LSD is perfect for low to mid power vehicule. With a lower amount of plates in its assembly, this lsd is highly reactive and ensure low resistance resulting in better clutch response, pedal feel, durability and low clungging noise.
In the RS Model, the activation pressure is applied to the same direction of the initial torque with the utilization of a coil spring. Therefore, the initial torque is set lower than the MZ model enables a smoother and quicker initial clutch plates engagement from a non operational to a fully functioning state even despite a low initial torque rating is set. The virtues of a low initial torque setting is that it enables a smooth turn even while the LSD mechanism is not activated. Because of the coil spring design, it provides overall gentle and stable operation.
These RS Springs apply constant pressure against the clutch plates at all times, resulting in minimal loss of initial torque over time.
Pressure ring features dual profiles to switch between (1 way & 1.5 way) (1 way & 2 way) (1.5 way & 2 way) without purchasing additional components!Activates under acceleration while the under-steer under deceleration is less than on a 2 way LSD. Recommended for those who have a hard time with under-steer.
All Cusco limited slip differentials have the option of adjusting the responsiveness and the locking characteristics the LSD by the combinaion of each plate and its designation of how it is stacked. Cusco's exclusive clutch plate grooves are cut radially enabling instant oil movement, thus improving efficiency and durability. The pressure ring contact surface is polished for an even and flat contact with the clutch plates. The exclusive Cusco Oil Through System enhances great oil circulation and supply to the necessary areas when used with the Cusco LSD Oil.
Manufacturer: Cusco Japan
Part Number: LSD 183 F
LSD Model: Type Rs
LSD Type: 1 way (1&2way)
Transmission Type: MT
Position: Rear
IMPORTANT: Read the fitting tab to ensure this part fits on your car!!
The type RS LSD is perfect for low to mid power vehicule. With a lower amount of plates in its assembly, this lsd is highly reactive and ensure low resistance resulting in better clutch response, pedal feel, durability and low clungging noise.
In the RS Model, the activation pressure is applied to the same direction of the initial torque with the utilization of a coil spring. Therefore, the initial torque is set lower than the MZ model enables a smoother and quicker initial clutch plates engagement from a non operational to a fully functioning state even despite a low initial torque rating is set. The virtues of a low initial torque setting is that it enables a smooth turn even while the LSD mechanism is not activated. Because of the coil spring design, it provides overall gentle and stable operation.
These RS Springs apply constant pressure against the clutch plates at all times, resulting in minimal loss of initial torque over time.
Pressure ring features dual profiles to switch between (1 way & 1.5 way) (1 way & 2 way) (1.5 way & 2 way) without purchasing additional components!Activates under acceleration while the under-steer under deceleration is less than on a 2 way LSD. Recommended for those who have a hard time with under-steer.
All Cusco limited slip differentials have the option of adjusting the responsiveness and the locking characteristics the LSD by the combinaion of each plate and its designation of how it is stacked. Cusco's exclusive clutch plate grooves are cut radially enabling instant oil movement, thus improving efficiency and durability. The pressure ring contact surface is polished for an even and flat contact with the clutch plates. The exclusive Cusco Oil Through System enhances great oil circulation and supply to the necessary areas when used with the Cusco LSD Oil.
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :
Impreza WRX | GC8 APPLIED F | 1998-1999 | TC | EJ207 | H4
Impreza WRX | GC8 APPLIED G | 1999-2000 | TC | EJ207 | H4
Fits Suretrac differential oem gearbox.
Impreza WRX | GC8 APPLIED F | 1998-1999 | TC | EJ207 | H4
Impreza WRX | GC8 APPLIED G | 1999-2000 | TC | EJ207 | H4
Fits Suretrac differential oem gearbox.
