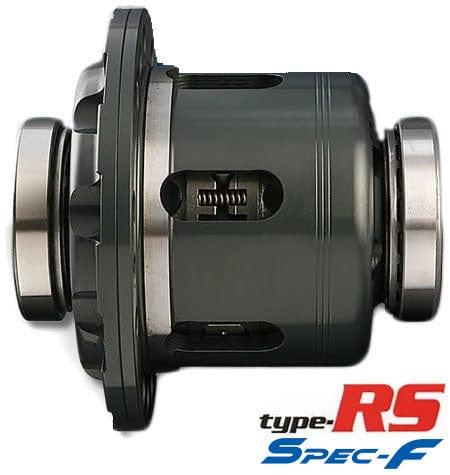

Cusco Japan Type Rs Spec F - 1 way (1&2way) Rear LSD - Nissan Skyline GT-R - BCNR33 (MT)

Check products, lead time and fitting infos in the tabs below!
Sku: LSD 169 FT
Vendor: Cusco Japan
Availability: Usually ships within 10 to 20 days.
Shipping time is additional. Choose your option in the cart page.
$1,087.50 $1,276.00
Maximum quantity available reached.
Specifications:
Manufacturer: Cusco Japan
Part Number: LSD 169 FT
LSD Model: Type Rs Spec F
LSD Type: 1 way (1&2way)
Transmission Type: MT
Position: Rear
IMPORTANT: Read the fitting tab to ensure this part fits on your car!!

The Spec-F LSD feature a special flat friction clutch plates which translates to a milder initial engagement when acceleration is ON or OFF. This setup is perfect for rear wheel drive setups in circuit situations, as well as minimizing power loss for low horsepowered vehicles. The Spec-F retains the Type Rs specs yet increases smoothness in cornering due to its FFP (Flat Friction Plate). These plates increase oil passage and therefore give a very polyvalent LSD for sunday racers, but also street roads.

In the RS Model, the activation pressure is applied to the same direction of the initial torque with the utilization of a coil spring. Therefore, the initial torque is set lower than the MZ model enables a smoother and quicker initial clutch plates engagement from a non operational to a fully functioning state even despite a low initial torque rating is set. The virtues of a low initial torque setting is that it enables a smooth turn even while the LSD mechanism is not activated. Because of the coil spring design, it provides overall gentle and stable operation.

These RS Springs apply constant pressure against the clutch plates at all times, resulting in minimal loss of initial torque over time.

Pressure ring features dual profiles to switch between (1 way & 1.5 way) (1 way & 2 way) (1.5 way & 2 way) without purchasing additional components!Activates under acceleration while the under-steer under deceleration is less than on a 2 way LSD. Recommended for those who have a hard time with under-steer.

All Cusco limited slip differentials have the option of adjusting the responsiveness and the locking characteristics the LSD by the combinaion of each plate and its designation of how it is stacked. Cusco's exclusive clutch plate grooves are cut radially enabling instant oil movement, thus improving efficiency and durability. The pressure ring contact surface is polished for an even and flat contact with the clutch plates. The exclusive Cusco Oil Through System enhances great oil circulation and supply to the necessary areas when used with the Cusco LSD Oil.
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

Skyline GT-R | BCNR33 Zenki | 1995-1996 | TT | RB26DETT | I6
Skyline GT-R | BCNR33 Chuki | 1996-1997 | TT | RB26DETT | I6
Skyline GT-R | BCNR33 Kouki | 1997-1998 | TT | RB26DETT | I6
( except active LSD)
