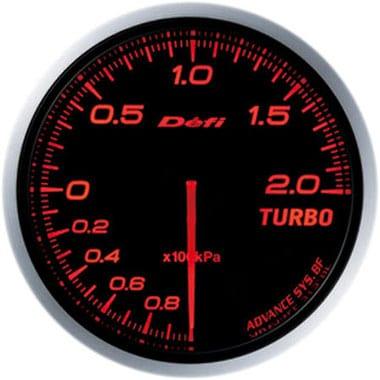

Defi Amber Advance BF Boost Gauge - 60mm - 2 Bar

Check products, lead time and fitting infos in the tabs below!
Sku: DF09902
Vendor: Defi
Availability: Usually ships within 20 to 30 days.
Shipping time is additional. Choose your option in the cart page.
$247.00 $272.00
Maximum quantity available reached.
Specifications:
Manufacturer: Defi
Part Number: DF09902
Information Displayed: Boost
Type: Advance System
Comunication: Analog
Dimension: 60mm
Illumination Colour: Amber
Reading limitation : -100kPa to +200kPa
Unit: Metric

Defi-Link Meter ADVANCE BF is gauge series which need to be connected to Defi-Link ADVANCE Control Unit (DF07703).ADVANCE BFs are electronic blacked out gauges which are high response and refined design. When the car is off they have a black face with no numbers on them. As soon as the car is turned on, the gauges light up and are in full effect.

Main Features:
-Stepping motor: STS26/VS2
-Illumination color: white/amber red/blue (in USDM models, only amber red is available)
-Illumination ON/OFF: interlocked with vehicle illumination switch
-LED illumination
-Indicator output
-Built-in indicators
-Driving data can be recorded & replayed
-Opening mode/Ending mode
-Size: 60mm/80mm tachometer
-Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8

Included in this kit will be:
-Gauge 1pc
-Sensor 1pc
-Sensor wire (8 1/5ft) 1pc
-Power supply wire (3 1/3ft) 1pc
-Meter cup 1pc
-Regular position bezel 1pc
-Double sided tape 1pc
-Buffer 1pc
-Mounting bracket 1pc
-Hardware
