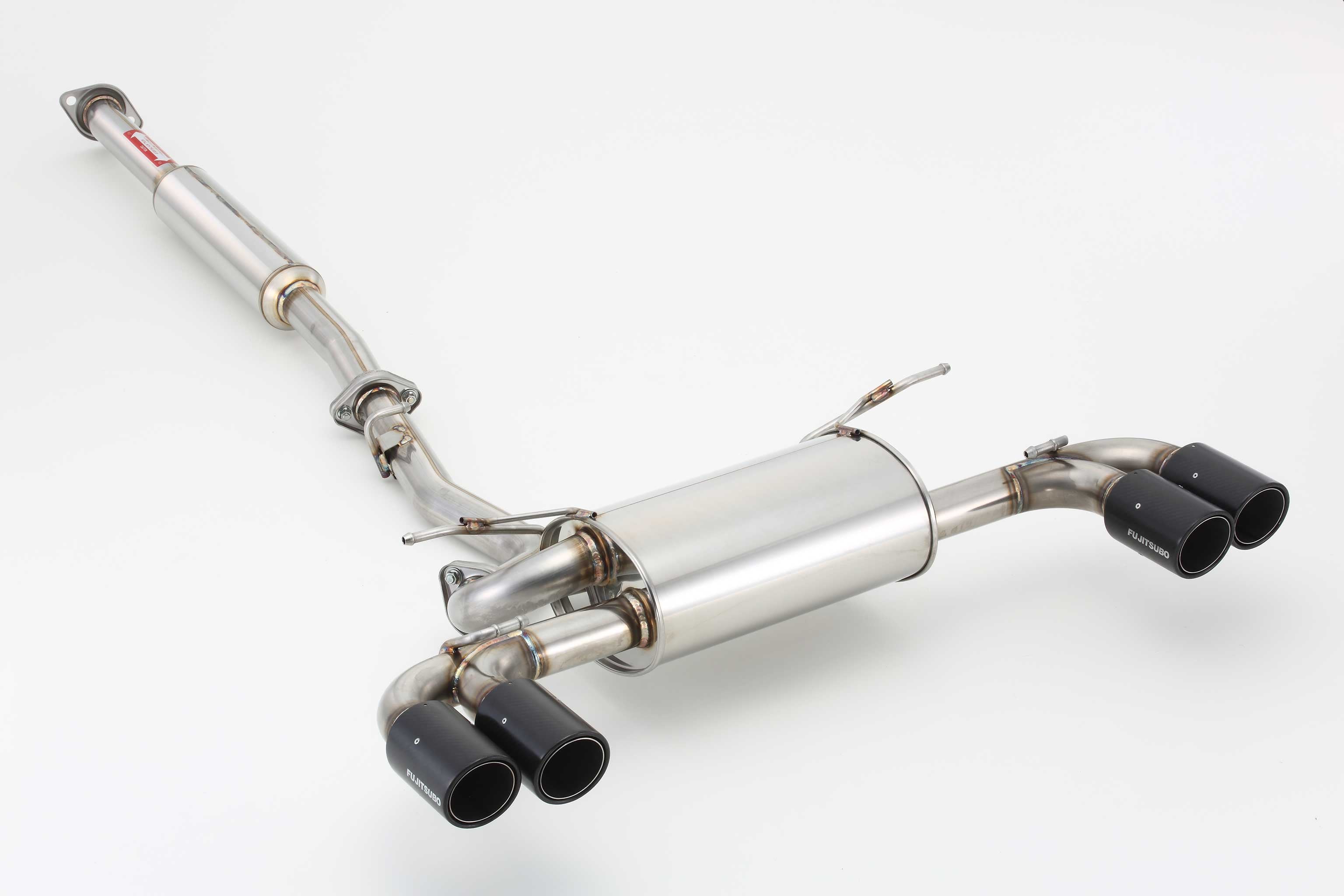

FUJITSUBO A-RM+c Exhaust (For TRD Aero) – Toyota 86 ZN6 Pre-Facelift (FA20) - 260-23114
FUJITSUBO A-RM+c Exhaust (For TRD Aero) – Toyota 86 ZN6 Pre-Facelift (FA20) - 260-23114

FUJITSUBO A-RM+c Exhaust (For TRD Aero) – Toyota 86 ZN6 Pre-Facelift (FA20)

Brand: Fujitsubo
SKU: 260-23114
Availability: Contact us for availability
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$1,661.30
-21% $2,091.00 $1,661.30

Description

FUJITSUBO A-RM+c (For TRD Aero) – ZN6 86 (Pre-Facelift)

Model focused on exhaust efficiency, improving power & torque in the mid-to-high RPM range and emphasizing weight reduction.

Product Overview

  • Product Name: A-RM+c (For TRD Aero)
  • Item Number (Part No.): 260-23114
  • Price (JPY): ¥247,500 (base ¥225,000)
  • Authorized Number: JQR20163156 FA20
  • JAN Code: 4944997224147
  • Application: ZN6 86 (Pre-Facelift)

Vehicle Fitment

  • Chassis: DBA-ZN6
  • Engine: FA20
  • Year: H24.4–H28.7 (2012.4–2016.7)

Notes

  • For vehicles fitted with TRD rear bumper spoiler (MS343-1800?-??) only
  • Not compatible with OEM (stock) rear bumper vehicles
  • Pre-facelift only (–H28.07)
  • AT/MT compatible
  • Carbon tail end model (W tail, dual exit left/right)

Specifications

  • Type: Stainless + Carbon
  • Tailtip Style: ?92 Round Slash (Carbon, W R/L)
  • Pipe Diameter: ?60.5

Included Fitting Parts

  • 080-36000 O-Ring Gasket ×2
  • M10×20 Flange Bolt & Nut Set ×4
  • 109-00092 Carbon Tail Set (?92) ×4

Optional (Paid)

  • EXH+ Titanium Finisher ?92 (Burnt Gradient)

Performance / Test Data (STD vs FUJITSUBO)

Item STD FUJITSUBO
Acceleration (40km/h?100km/h, 3rd) 2.9 sec 2.9 sec
Peak Power 130.2 kW (177.1 ps) / 6700 rpm 131.4 kW (178.7 ps) / 6890 rpm
Peak Torque 195 N·m (19.9 kg·m) / 4820 rpm 197 N·m (20.1 kg·m) / 4900 rpm
Muffler Weight 17.9 kg 17.2 kg
Idling Exhaust Noise 60 dB 62 dB
Proximity Exhaust Noise (5250 rpm) 84 dB 91 dB
Exhaust Noise @ 3000 rpm 74 dB 78 dB
Exhaust Noise @ 5000 rpm 82 dB 86 dB
Exhaust Noise @ 4000–6000 rpm 88 dB 95 dB

Ground Clearance (Reference)

  • Roof Height: 1275 mm (inspection certificate: 1300 mm)
  • Measurement Point: Mid pipe section
  • Reference Distance: 174 mm behind rear axle
  • Minimum Ground Clearance: 100 mm
