Home » FUJITSUBO A-RM+c Exhaust – Subaru BRZ ZC6 / Toyota 86 ZN6 (FA20)

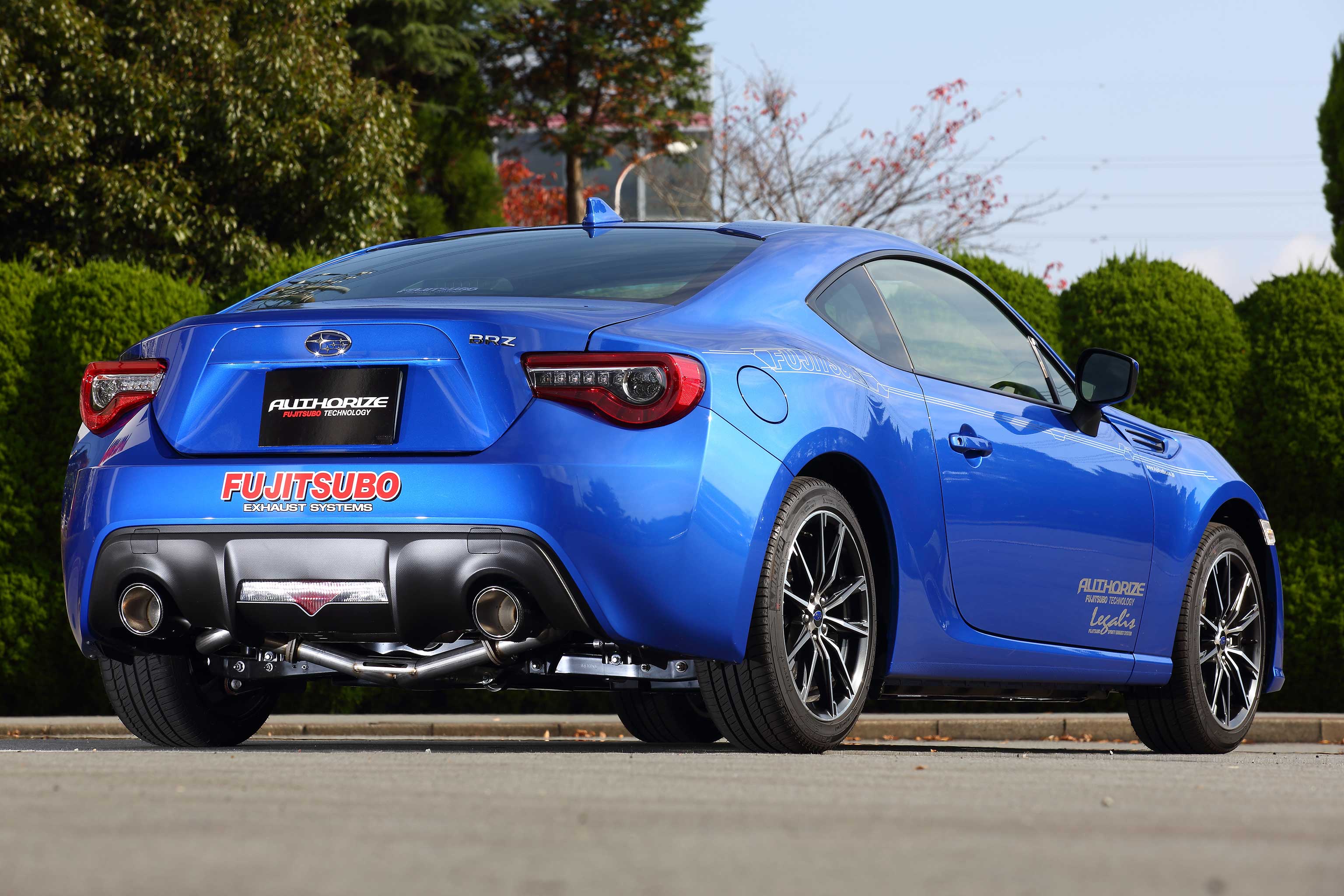

FUJITSUBO A-RM+c Exhaust – Subaru BRZ ZC6 / Toyota 86 ZN6 (FA20) - 260-23118
FUJITSUBO A-RM+c Exhaust – Subaru BRZ ZC6 / Toyota 86 ZN6 (FA20) - 260-23118

FUJITSUBO A-RM+c Exhaust – Subaru BRZ ZC6 / Toyota 86 ZN6 (FA20)

Brand: Fujitsubo
SKU: 260-23118
Availability: Contact us for availability
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$1,355.60
-21% $1,706.00 $1,355.60

Description

FUJITSUBO A-RM+c – ZC6 BRZ / ZN6 86 (Stainless + Carbon)

Model focused on exhaust efficiency, improving power & torque in the mid-to-high RPM range and emphasizing weight reduction.

Product Overview

  • Product Name: A-RM+c
  • Item Number (Part No.): 260-23118
  • Price (JPY): ¥201,960 (base ¥183,600)
  • Authorized Number: JQR30163106 FA20
  • JAN Code: 4944997224185

Vehicle Fitment

  • Application: ZC6 BRZ 2.0 (Applied A–H)
  • Chassis: DBA?4BA-ZC6
  • Engine: FA20
  • Year: H24.3–R2.9 (2012.3–2020.9)
  • Application: ZN6 86
  • Chassis: DBA?4BA-ZN6
  • Engine: FA20
  • Year: H24.4–R3.4 (2012.4–2021.4)

Notes

  • AT/MT compatible
  • DBA-ZC6? BRZ tS compatible
  • 86 GR SPORT compatible
  • Post-facelift from H28.8 (2016) compatible
  • Remark: Detailed data shown is for ZN6 AT vehicle
  • Carbon tail end model

Specifications

  • Type: Stainless + Carbon
  • Tailtip Style: ?118 Round Slash (Carbon, R/L)
  • Pipe Diameter: ?60.5–?50.8

Included Fitting Parts

  • 080-36000 O-Ring Gasket ×1
  • 080-35001 Plate Gasket ×2
  • M10×20 Flange Bolt & Nut Set ×2
  • M10×35mm Bolt ×4
  • M10 Spring Washer ×4
  • M10 Nut ×4
  • 109-00118 Carbon Tail Set (?118) ×2

Optional (Paid)

  • EXH+ Titanium Finisher ?118 (Burnt Gradient)

Performance / Test Data (STD vs FUJITSUBO)

Item STD FUJITSUBO
Acceleration (30km/h?90km/h, M2) 3.0 sec 2.6 sec
Peak Power 127.8 kW (173.8 ps) / 6640 rpm 128.4 kW (174.6 ps) / 6480 rpm
Peak Torque 194 N·m (19.8 kg·m) / 4760 rpm 195 N·m (19.9 kg·m) / 4700 rpm
Muffler Weight 18.6 kg 15.1 kg
Idling Exhaust Noise 61 dB 65 dB
Proximity Exhaust Noise (5250 rpm) 82 dB 90 dB
Exhaust Noise @ 3000 rpm 73 dB 81 dB
Exhaust Noise @ 5000 rpm 80 dB 84 dB
Exhaust Noise @ 4000–6000 rpm 87 dB 102 dB

Ground Clearance (Reference)

  • Measured Vehicle: ZC6 BRZ (Applied A–)
  • Roof Height: 1256 mm (inspection certificate: 1300 mm)
  • Measurement Point: Mid pipe section (over rear axle)
  • Minimum Ground Clearance: 122 mm

Official Link: View on Fujitsubo
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part fits:

BRZ | ZC6 APPLIED A | 2012-2013 | NA | FA20D | H4,BRZ | ZC6 APPLIED B | 2013-2014 | NA | FA20D | H4,BRZ | ZC6 APPLIED C | 2014-2015 | NA | FA20D | H4,BRZ | ZC6 APPLIED D | 2015-2016 | NA | FA20D | H4,BRZ | ZC6 APPLIED E | 2016-2018 | NA | FA20D | H4
