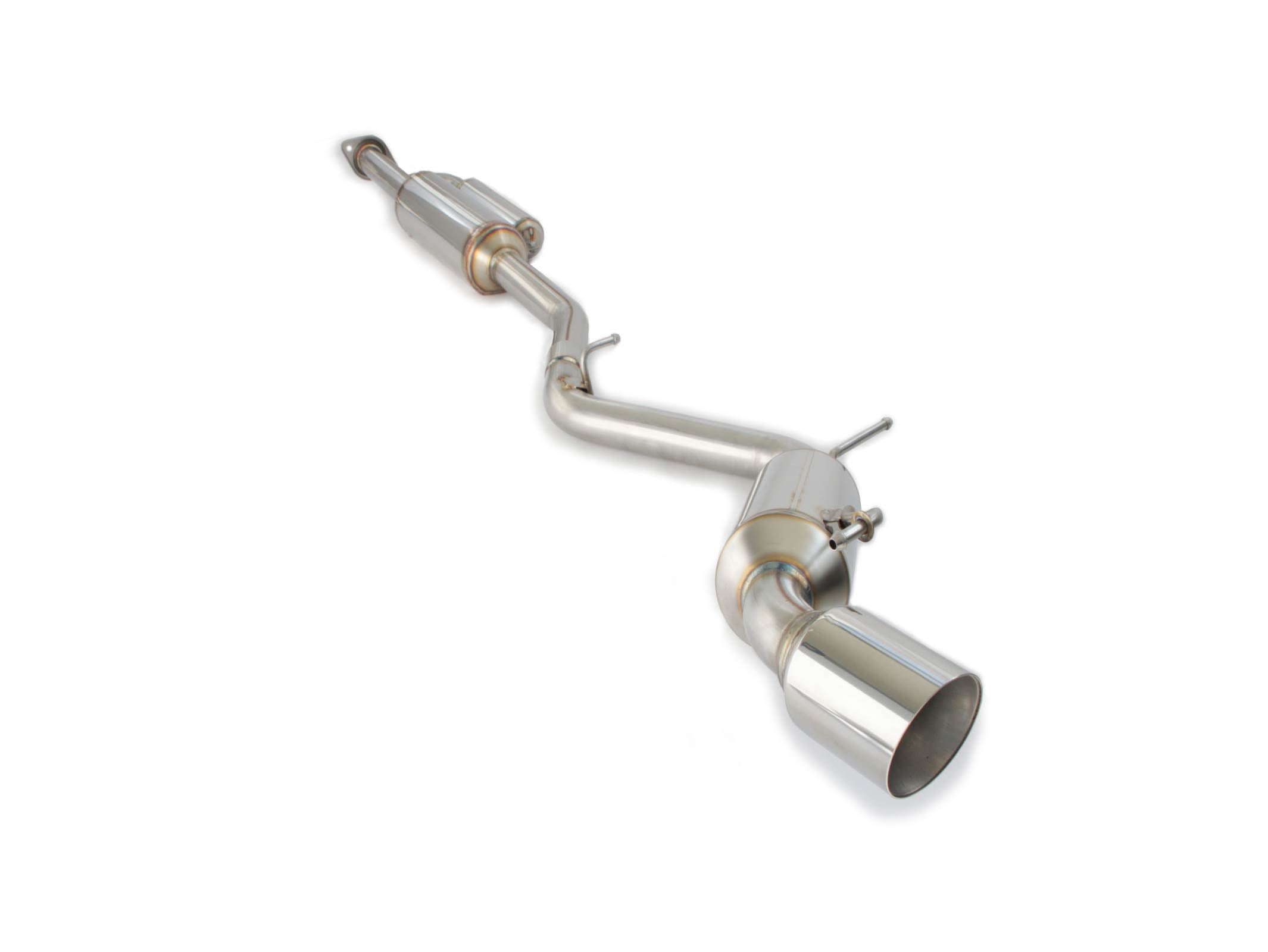

Home » FUJITSUBO A-RM Exhaust (?60) – Toyota GR86 ZN8 / Subaru BRZ ZD8 (FA24)
FUJITSUBO A-RM Exhaust (?60) – Toyota GR86 ZN8 / Subaru BRZ ZD8 (FA24) - 260-23217
FUJITSUBO A-RM Exhaust (?60) – Toyota GR86 ZN8 / Subaru BRZ ZD8 (FA24) - 260-23217

FUJITSUBO A-RM Exhaust (?60) – Toyota GR86 ZN8 / Subaru BRZ ZD8 (FA24)

Brand: Fujitsubo
SKU: 260-23217
Availability: Contact us for availability
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$1,004.20
-21% $1,264.00 $1,004.20

Description

FUJITSUBO AUTHORIZE A-RM (?60) – ZN8 GR86 / ZD8 BRZ

Model that pursues exhaust efficiency, focusing on improved power & torque in the mid-to-high RPM range and weight reduction.

Product Overview

  • Product Name: A-RM??60???
  • Item Number (Part No.): 260-23217
  • Price (JPY): ?149,600 (base ?136,000)
  • Authorized Number: JQR30242009 FA24
  • JAN Code: 4944997225175
  • Application: ZN8 GR86 / ZD8 BRZ 2.4

Vehicle Fitment

  • ZN8 GR86 — Chassis: 3BA-ZN8 / Engine: FA24 / Year: R3.10– (2021.10–)
  • ZD8 BRZ 2.4 — Chassis: 3BA-ZD8 / Engine: FA24 / Year: R3.7– (2021.7–)

Special Notes / Remarks

  • MT/AT compatible
  • Cup Car Basic compatible
  • TGR GR86/BRZ Cup (PROFESSIONAL Series) specified part (Approval No.: T.R.A.240319-181)
  • Installable with: GROW original aero rear diffuser
  • Installable with: CUSCO rear stabilizer
  • Installable with: CUSCO diff cover
  • Installable with: TRUST large-capacity diff cover
  • Installable with: CUSCO diff cooler
  • Remarks: Left-side single exit
  • Note: Measured in 4th gear due to speed limiter operation
  • Warranty note: Circuit driving / TGR GR86/BRZ Cup participation is excluded from warranty

Performance / Test Data (STD vs FUJITSUBO)

Item STD FUJITSUBO
Acceleration (50km/h?100km/h, 3rd) 5.3 sec 5.3 sec
Peak Power 165.7 kW (225.4 ps) / 7086 rpm 166.8 kW (226.8 ps) / 7083 rpm
Peak Torque 233.2 N·m (23.8 kg·m) / 3254 rpm 238.1 N·m (24.3 kg·m) / 3217 rpm
Weight 16.3 kg 10.7 kg
Idling Exhaust Noise 57 dB 69 dB
Proximity Exhaust Noise (5250 rpm) 85 dB 94 dB
Exhaust Noise @ 3000 rpm 72 dB 91 dB
Exhaust Noise @ 5000 rpm 84 dB 89 dB
Exhaust Noise @ 4000–6000 rpm 93 dB 107 dB

Ground Clearance (Reference)

  • Measured Vehicle: 3BA-ZN8 GR86 MT
  • Roof Height: 1280 mm (inspection certificate: 1310 mm)
  • Measurement Point: Rear of center muffler
  • Minimum Ground Clearance: 99 mm

*Internal test values. Results may vary by vehicle and measurement conditions.


Official Link: View on Fujitsubo
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part fits:

86 | ZN8 | 2021-2023 | NA | FA24 | H4
