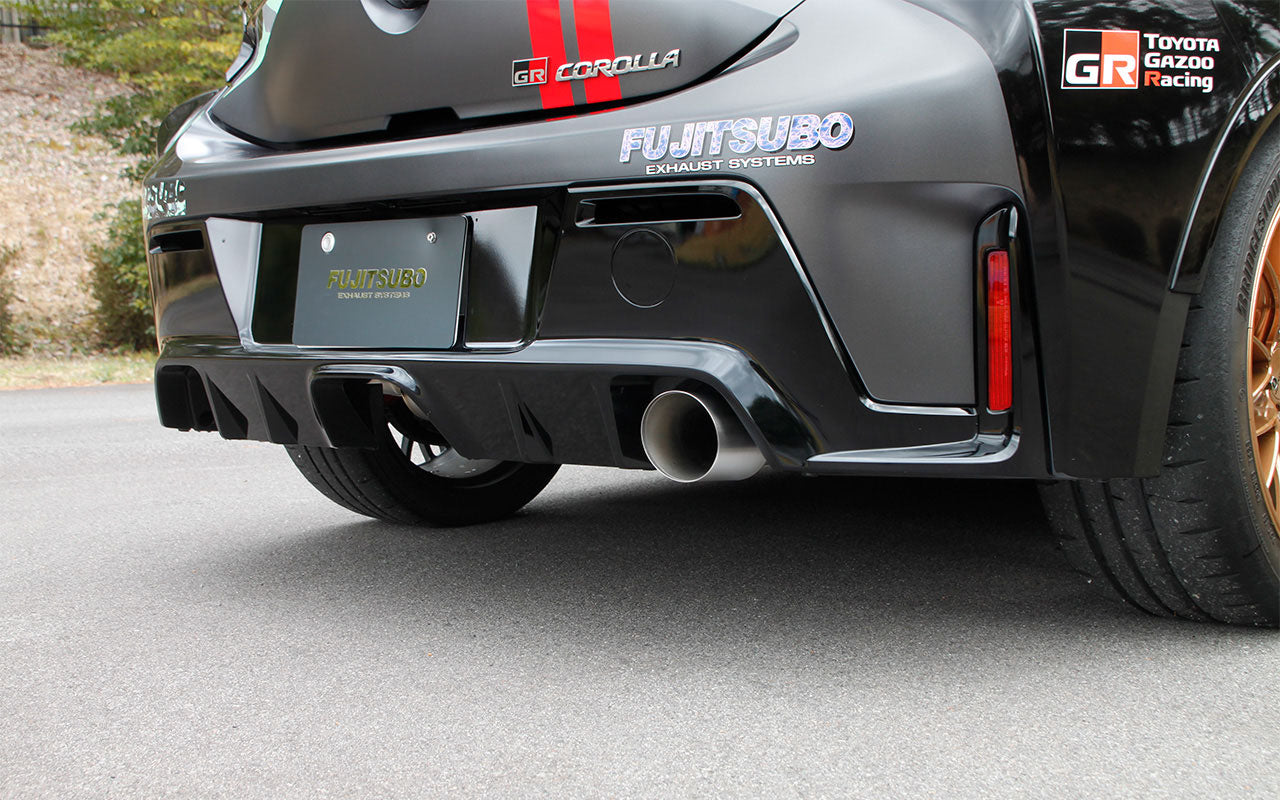

FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Corolla GZEA14H MT (G16E-GTS) - 270-22543
FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Corolla GZEA14H MT (G16E-GTS) - 270-22543

FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Corolla GZEA14H MT (G16E-GTS)

Brand: Fujitsubo
SKU: 270-22543
Availability: Contact us for availability
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$3,396.50
-21% $4,275.00 $3,396.50

Description

FUJITSUBO AUTHORIZE A-RM (Titanium Model) – GZEA14H GR Corolla MT

Model pursuing exhaust efficiency, focusing on power & torque gains in the mid-to-high RPM range and weight reduction. All-titanium specification.

Product Overview

  • Product Name: A-RM (Titanium Model)
  • Part No.: 270-22543
  • Price (JPY): ?506,000 (base ?460,000)
  • Authorized Number: JQR40253028 G16Et
  • JAN Code: 4944997227438
  • Application: GZEA14H GR Corolla MT (COROLLA)

Vehicle Fitment

  • Body: 4BA-GZEA14H
  • Engine: G16E-GTS
  • Year: R5.1– (2023.1–)

Notes

  • MT vehicles only.
  • RZ / RZ MORIZO Edition compatible (common).
  • Compatible with 2025 minor change models (common).
  • OEM electronic exhaust control valve cannot be used with this product.
  • OEM exhaust valve canceller included.
  • Proximity exhaust noise measured at max measurable 4200 rpm because the regulated rpm could not be reached.

Specifications

  • Type: All Titanium
  • Tailtip Style: ?101.6 Slash (Titanium)
  • Pipe Diameter: ?70.0
  • Optional (Paid): BG (burnt gradient) color tail change
  • Optional (Paid): EXH+ Carbon Finisher ?118 / EXH+ Titanium Finisher ?118 (burnt gradient)

Included Fitting Parts

  • M10×35 mm Bolt ×2
  • M10 Spring Washer ×2
  • Slit Clamp Install Kit: SLIT-HC70 ×1
  • Valve Canceller ×1
  • Ty-rap (medium) ×3
  • M10×70 mm 26S Bolt ×2
  • M10 Plate Washer (small) ×2
  • M10 Flange Nut ×1
  • M10 Nut ×4
  • 080-37601 Plate Gasket ×1

Performance / Test Data (STD vs FUJITSUBO)

Item STD FUJITSUBO
Acceleration (80?150 km/h, 3rd) 5.51 sec 5.50 sec
Peak Power 209.8 kW (285.3 ps) / 6448 rpm 221.1 kW (300.7 ps) / 6693 rpm
Peak Torque 406.7 N·m (41.5 kg·m) / 4019 rpm 415.5 N·m (42.4 kg·m) / 3828 rpm
Weight 15.1 kg 7.9 kg
Idling Exhaust Noise 73 dB 70 dB
Proximity Exhaust Noise (4875 rpm) 92 dB 90 dB
Exhaust Noise @ 2000 rpm 90 dB 73 dB
Exhaust Noise @ 4000 rpm 84 dB 83 dB
Exhaust Noise @ 2000–4000 rpm 94 dB 93 dB

Ground Clearance (Reference)

  • Measured Vehicle: GZEA14H GR Corolla MT
  • Roof Height: 1485 mm (inspection certificate: 1480 mm)
  • Measurement Point: Mid pipe
  • Minimum Ground Clearance: 146 mm
