Home » FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Yaris GXPA16 1.6 Turbo 4WD (2020.9–2024.3)

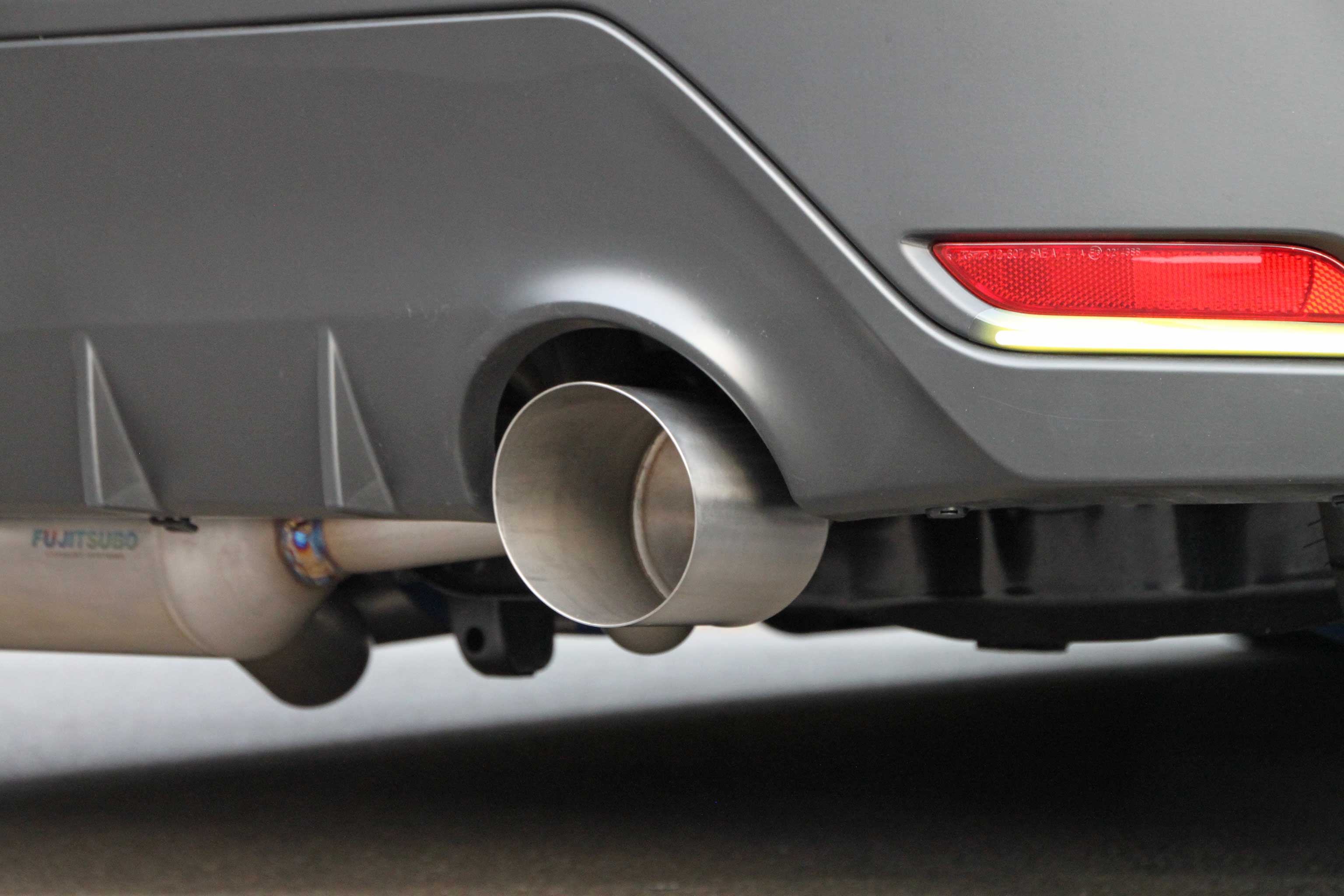

FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Yaris GXPA16 1.6 Turbo 4WD (2020.9–2024.3) - 270-21231
FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Yaris GXPA16 1.6 Turbo 4WD (2020.9–2024.3) - 270-21231

FUJITSUBO AUTHORIZE A-RM Titanium Exhaust – Toyota GR Yaris GXPA16 1.6 Turbo 4WD (2020.9–2024.3)

Brand: Fujitsubo
SKU: 270-21231
Availability: Contact us for availability
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$3,145.40
-21% $3,959.00 $3,145.40

Description

FUJITSUBO AUTHORIZE A-RM (Titanium Model) – GXPA16 GR Yaris 1.6 Turbo 4WD

Model pursuing exhaust efficiency, focusing on power & torque gains in the mid-to-high RPM range and weight reduction. All-titanium specification.

Product Overview

  • Product Name: A-RM (Titanium Model)
  • Part No.: 270-21231
  • Price (JPY): ?468,600 (base ?426,000)
  • Authorized Number: JQR30212136 G16Et
  • JAN Code: 4944997223317
  • Application: GXPA16 GR Yaris 1.6 Turbo 4WD (YARiS)

Vehicle Fitment

  • Body: 4BA-GXPA16
  • Engine: G16E-GTS
  • Year: R2.9–R6.3 (2020.9–2024.3)
  • Also listed: GXPA16 GRMN Yaris / R4.1–R6.3 (2022.1–2024.3)

Notes

  • Measured at max measurable 4200 rpm because the regulated rpm could not be reached.
  • MT vehicles only.
  • GRMN Yaris is for CIRCUIT PKG only.
  • Development vehicle grade: RZ.

Specifications

  • Type: All Titanium
  • Tailtip Style: ?101.6 Slash (Titanium 12° / R.L)
  • Pipe Diameter: ?70.0–?50.8
  • Optional (Paid): BG (burnt gradient) color tail change
  • Optional (Paid): EXH+ Carbon Finisher ?118 / EXH+ Titanium Finisher ?118 (burnt gradient)

Included Fitting Parts

  • 080-37601 Plate Gasket ×1
  • M10×20 mm Flange Bolt ×2
  • M10 Flange Nut ×2
  • 080-36601 Ring Gasket ×1

Performance / Test Data (STD vs FUJITSUBO)

Item STD FUJITSUBO
Acceleration (50?100 km/h, 3rd) 2.4 sec 2.3 sec
Peak Power 196.2 kW (266.8 ps) / 4480 rpm 206.3 kW (280.6 ps) / 4560 rpm
Peak Torque 429.2 N·m (43.8 kg·m) / 4320 rpm 448.8 N·m (45.8 kg·m) / 4140 rpm
Weight 11.9 kg 9.6 kg
Idling Exhaust Noise 59 dB 71 dB
Proximity Exhaust Noise (4875 rpm) 77 dB 89 dB
Exhaust Noise @ 2000 rpm 70 dB 83 dB
Exhaust Noise @ 4000 rpm 75 dB 82 dB
Exhaust Noise @ 1000–3000 rpm 80 dB 92 dB

Ground Clearance (Reference)

  • Measured Vehicle: GR Yaris 1.6 Turbo 4WD (RZ)
  • Roof Height: 1413 mm (inspection certificate: 1450 mm)
  • Measurement Point: Over rear axle
  • Minimum Ground Clearance: 108 mm

Official Link: View on Fujitsubo
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part fits:

Yaris GR | GXPA16 | 2020-2025 | TC | G16E-GTS | I3
