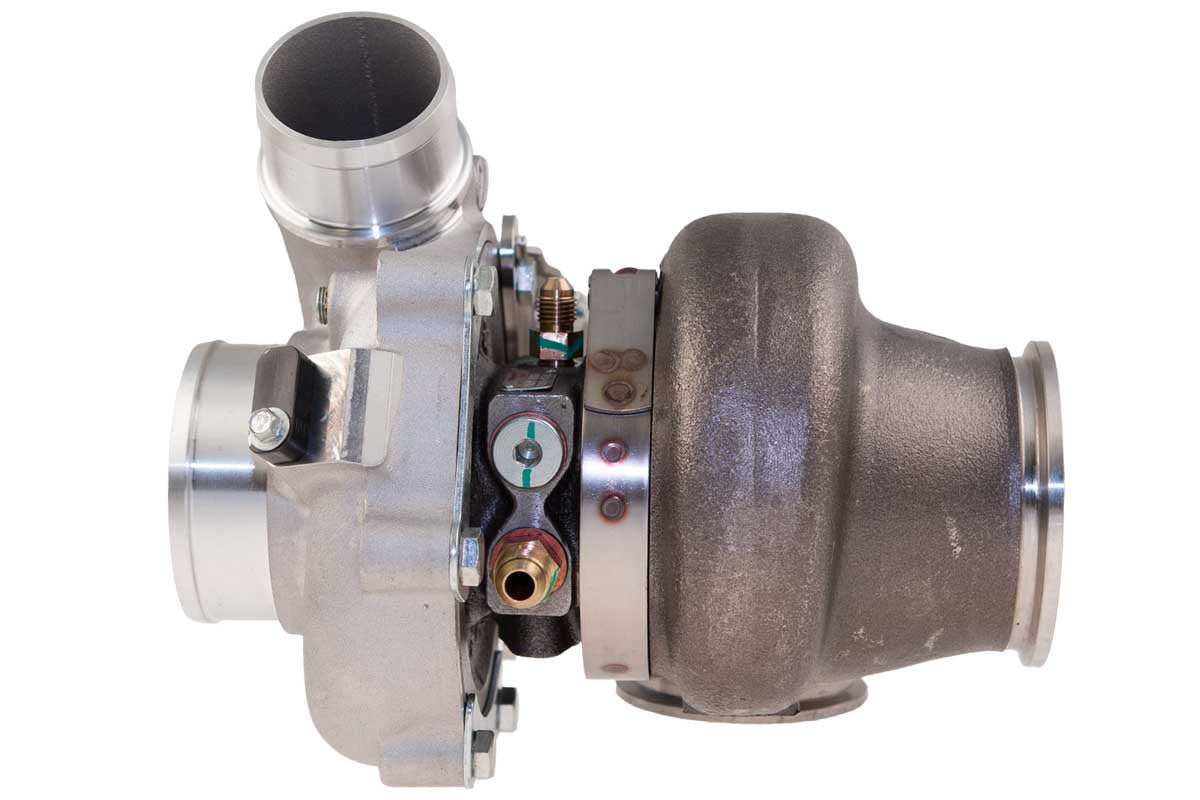

Garrett G25-700 Reverse Rotation G-Series II Turbocharger 0.92 A/R V-Band / V-Band IWG
Contact Us
Share this product on Socials
Regular price
$4,308.20
Regular price
-10%
$4,773.00
Sale price
$4,308.20
Description
Specifications:
Manufacturer: Garrett
Reference Number: 934115-5004S
Horsepower: 350 to 660hp
Displacement: 1.4Lto 3.0L
Specs:
Garrett® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
Oil restrictor and water fittings included.
Reverse rotation.
Wastegated turbine housings include actuator assembly.
Calibrated by Garrett at 1.0bar (14.7PSI)
Compressor side: TRIM 65 A/R 0.70
Compressor Air Inlet: Hose 3.00" (76.20mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Turbine side: TRIM 84 A/R 0.92 (Reverse-wastegated)
Turbine Inlet: V-Band 3.00" (76.20mm)
Turbine Outlet: V-Band 3.55" (90.16mm)
Bearing housing: Water and Oil cooled system.
Manufacturer: Garrett
Reference Number: 934115-5004S
Horsepower: 350 to 660hp
Displacement: 1.4Lto 3.0L
Specs:
Garrett® G Series Compressor Aerodynamics for maximum HP.
Fully machined Speed Sensor and pressure ports.
New Turbine Wheel Aero constructed of MAR-M alloy rated 1055ºC
Stainless Steel wastegated and non wastegated turbine housing option capable of 1050°C.
Oil restrictor and water fittings included.
Reverse rotation.
Wastegated turbine housings include actuator assembly.
Calibrated by Garrett at 1.0bar (14.7PSI)
Compressor side: TRIM 65 A/R 0.70
Compressor Air Inlet: Hose 3.00" (76.20mm)
Compressor Air Outlet: Hose 2.00" (51.15mm)
Turbine side: TRIM 84 A/R 0.92 (Reverse-wastegated)
Turbine Inlet: V-Band 3.00" (76.20mm)
Turbine Outlet: V-Band 3.55" (90.16mm)
Bearing housing: Water and Oil cooled system.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
This product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
This product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part is Universal!
