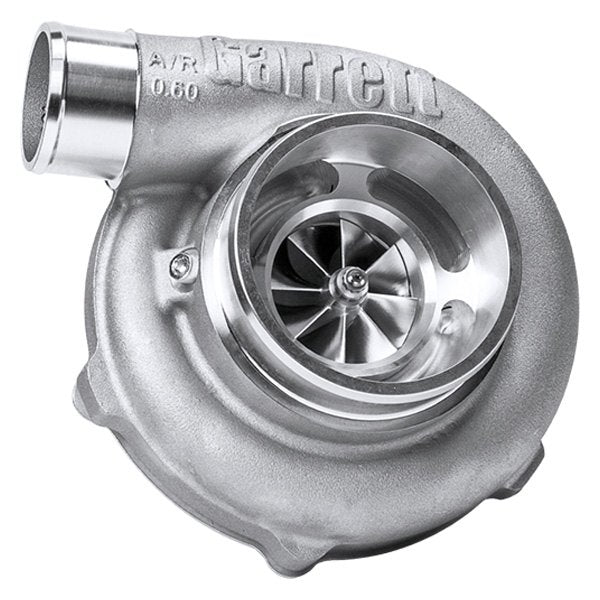

Garrett GTX3576R Gen II - V-Band / V-Band 1.01 A/R( 856801-5058S)

Check products, lead time and fitting infos in the tabs below!
Sku: 856801-5058S
Vendor: Garrett
Availability: 1 in Stock in our US Warehouse.
Shipping time is additional.
$2,936.80 $3,671.00
Maximum quantity available reached.
Specifications:
Manufacturer: Garrett
Reference Number: 856801-5058S

Horsepower: 400 - 750HP
Displacement: 2.0 - 4.5L

Gen2 Aerodynamics feature increased horsepower range
Improved ported shroud design for surge resistance
New compressor housing aesthetics
Integrated speed sensor port
Standar rotation
Actuator not include
Compressor side: TRIM 58 A/R 0.60
Compressor Air Inlet: Hose 4.00" (101.60mm)
Compressor Air Outlet: Hose 2.0" (50.80mm)
Turbine side: TRIM 84 A/R 1.01
Turbine Inlet: V-band 3.00" (76.2mm)
Turbine Outlet: V-band 3.55" (90.2mm)
Bearing housing: Water and Oil cooled system
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our US Warehouse to any global location. Shipping via DHL/Fedex within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part is Universal!
