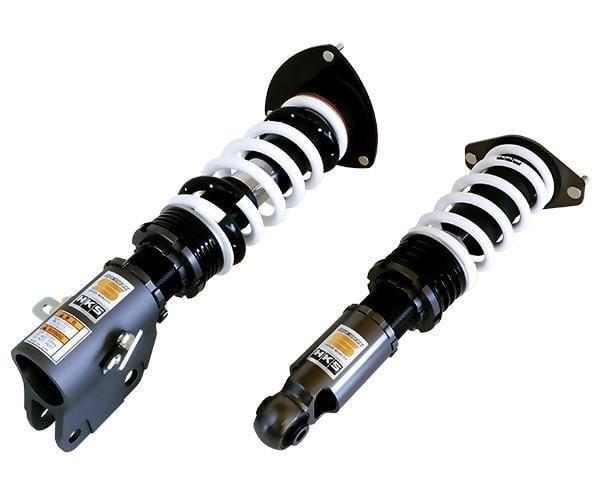

HKS - Coilover Suspension Full Kit Hipermax S - Honda Odyssey RC1 (2013-2016)
Contact Us
Share this product on Socials
Regular price
$1,956.31
Regular price
-17%
$2,357.00
Sale price
$1,956.31
Description
SPECIFICATIONS:
Manufacturer: HKS
Adjustability: Dampening and Height Adjustable
SPECIFICATIONS:
RC1 K24W
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49(5)
- Rear: 68(6.9)
Free Height (mm):
- Front: 250(Barrel)
- Rear: Special
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 554/191
- Rear: 294/162
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: -3 ～ -69
-- Rear: -10 ～- 62
-Drivable Range High - Low (mm):
-- Front: -3 ～ -66
-- Rear: -10 ～- 62
COMPATIBILITY NOTES:
- RC1: Only Absolute equipped with K24W engine 11/2013 ~ 11/2017.
- RC1 after M/C: Only Absolute equipped with LFA-H4 engine 11/2017 ~.This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance.
DISCLAIMER:
Product picture is generic. Actual shape may differ.
Manufacturer: HKS
Adjustability: Dampening and Height Adjustable
SPECIFICATIONS:
RC1 K24W
Series: Hipermax S
Spring Rate N/mm (kgf/mm):
- Front: 49(5)
- Rear: 68(6.9)
Free Height (mm):
- Front: 250(Barrel)
- Rear: Special
Recommended Range to change Spring Rate N/mm (kgf/mm):
- Front: ±10 ( 1 )
- Rear: N/A
Damper Force (Rebound/Damping):
- Front: 554/191
- Rear: 294/162
- Note: Damping force is at piston speed 0.1m/sec.
Default position of Dial:
- Front: 15
- Rear: 15
Damping Force Adjustment:
- Front: 30 Steps
- Rear: 30 Steps
Height Adjustable Lower Bracket:
- Front: Yes
- Rear: Yes
Upper Mount:
- Front: Rubber Bush
- Rear: Rubber Bush
Damper Layout:
- Front: Inverted
- Rear: Normal
Damper/Spring Layout:
- Front: Coilover
- Rear: Separate
Damping force adjustable with Wire:
- Front: N/A
- Rear: N/A
Helper Spring (Spring Rate N/mm):
- Front: N/A
- Rear: N/A
Ride Height Specification -
-Maximum Adjustable Range High - Low (mm):
-- Front: -3 ～ -69
-- Rear: -10 ～- 62
-Drivable Range High - Low (mm):
-- Front: -3 ～ -66
-- Rear: -10 ～- 62
COMPATIBILITY NOTES:
- RC1: Only Absolute equipped with K24W engine 11/2013 ~ 11/2017.
- RC1 after M/C: Only Absolute equipped with LFA-H4 engine 11/2017 ~.This set of suspension is designed to replace the factory suspension related shock absorber / dampers and springs. Building upon the 3 decades of suspension development and 9 years since the last version of Hipermax IV GT release this series has unified the many different street based Hipermax merits and further improved this new flagship series for the ultimate combination of driving performance and comfort performance, Driving Comfort. With exception of the circuit specific HIpermax IV SP series all other series will be replaced with this all-mighty spec. Specifically developed to provide the ultimate in harmony between performance handling and control with supreme ride comfort yet capable of high level performance on circuit as well. With massive adjustability in ride height and damper settings these items are an excellent choice for the daily driver to look and perform best under any kind of circumstance.
DISCLAIMER:
Product picture is generic. Actual shape may differ.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part fits:
Honda - Odyssey - RC1 (2013-2016) K24W
Honda - Odyssey - RC1 (2013-2016) K24W
Honda - Odyssey - RC1 (2013-2016) K24W
Honda - Odyssey - RC1 (2013-2016) K24W
