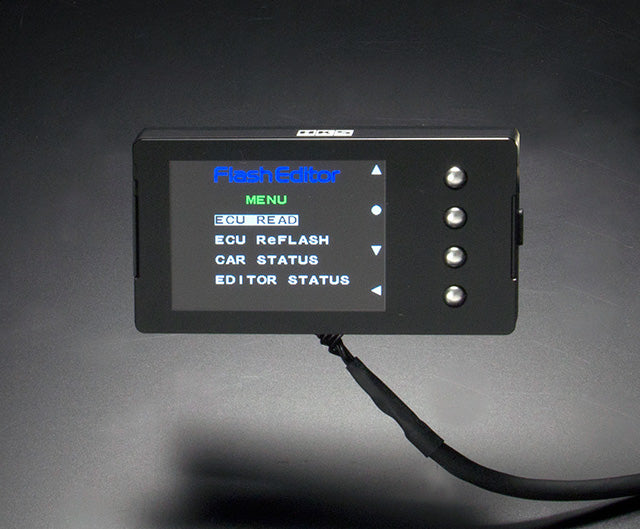

HKS - Flash Editor - Suzuki Swift Sport Zc33S

Specifications:
Manufacturer: HKS
Reference Number: 42015-AS102


Only for 6MT Vehicule with ECU ID 33980-67R0*0
The ECU can be reflashed via the vehicle's OBDII connector.
It is possible to save normal data and two custom data. Custom data is preset in the flash editor, and you can use the initialization tool to select either the genuine turbo data or the GTIII-FX data.
Original data can be created and edited at PowerWriter contracted stores.
One Flash Editor is required for each vehicle. (One Flash Editor cannot be used for multiple vehicles.)

COMPATIBILITY NOTES:
Can be used with M/T and A/T with standard turbo and standard ECU

[Main features] Connect to a computer and save the custom data in the initialization tool to the flash editor. The initialization tool is included on a USB memory stick, and using it you can select either the data for the normal turbine or the data for the GTIII-FX. After initialization, you can reflash the ECU just by operating the flash editor itself. Since the normal data is saved, it is possible to return to normal even after customization (see notes).
Your data is protected to prevent it from being lost to other tools. Two types of HKS custom data can be selected according to the vehicle specifications. *A separate USB cable (USB [A] male - USB [micro B] male) is required to connect to a computer.

High expandability unique to HKS - Power writer for flash editor
The data editing tool "PowerWriter" is available at HKS PowerWriter contracted stores.
Using a power lighter, detailed settings can be made to suit the user's needs.
The PowerWriter's protection function prevents data from being leaked to others.

[Vehicle-specific pre-data]
Genuine T/C PHASE1: Changing the speed limiter (300km/h)
Genuine T/C PHASE2: Speed ??limiter change (300km/h), rev limit change (6000rpm?6300rpm), boost up data
GTIII-FX PHASE2: Speed ??limiter change (300km/h), rev limit change (6000rpm?6300rpm), data for GTIII-FX
*When using each PHASE data, please use parts specified by HKS. If the vehicle is not specified, the setting is required at a power lighter shop.

[Notes]
ECUs that have been reprogrammed using the ZC33S flash editor will no longer be able to be reprogrammed by the manufacturer. If you require reprogramming, please contact HKS.
You cannot write to an ECU other than the ECU ID stored in the flash editor. If the ECU ID is not one that has been confirmed, please contact the support center or a power writer store.
Compatible with genuine ECU data. Not compatible with ECUs that already have custom data written.
Do not unplug the connector or turn off the vehicle's IG power supply during communication. Also, do not operate the vehicle's switches such as the air conditioner or hazard lights.
If the battery voltage is low, an error may occur during communication. In that case, please charge the battery before use.
