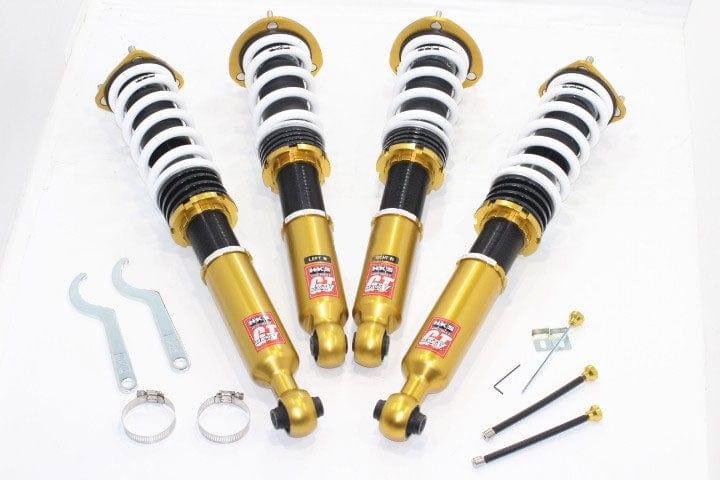

HKS - HIPERMAX IV GT Coilover Kit - Lexus RC 350 GSC10
Contact Us
Share this product on Socials
Regular price
$1,587.79
Regular price
-17%
$1,913.00
Sale price
$1,587.79
Description
Specifications:
Manufacturer: HKS
Part Number: 80230-AT005
Type: MAX IV GT
Ref: 80230-AT005
Front:
Dampening Adjustment: 30 Steps
Lowering: -9mm (Max Adjustment: 0 ~ -79
Spring Rate: 8kg
Rebound Setting: 130Nm
Compression Setting: 40Nm
Rear:
Dampening Adjustment: 30 Steps
Lowering: -11mm (Max Adjustment: -7 ~ -60
Spring Rate: F=78(8)/R=98(10)kg
Rebound Setting: 8Nm
Compression Setting: 3Nm
Remarks: Rear:Separate type.
The HKS HIPERMAX Series MAX IV GT is the ultimate sports suspension for street and track.
Single Tube Damper Design
Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
M Shaft (?46 normal type)
With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.
Adopted Pillow Ball Upper Mount
For more accurate and sharp steering.
New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
Manufacturer: HKS
Part Number: 80230-AT005
Type: MAX IV GT
Ref: 80230-AT005
Front:
Dampening Adjustment: 30 Steps
Lowering: -9mm (Max Adjustment: 0 ~ -79
Spring Rate: 8kg
Rebound Setting: 130Nm
Compression Setting: 40Nm
Rear:
Dampening Adjustment: 30 Steps
Lowering: -11mm (Max Adjustment: -7 ~ -60
Spring Rate: F=78(8)/R=98(10)kg
Rebound Setting: 8Nm
Compression Setting: 3Nm
Remarks: Rear:Separate type.
The HKS HIPERMAX Series MAX IV GT is the ultimate sports suspension for street and track.
Single Tube Damper Design
Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
M Shaft (?46 normal type)
With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.
Adopted Pillow Ball Upper Mount
For more accurate and sharp steering.
New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
