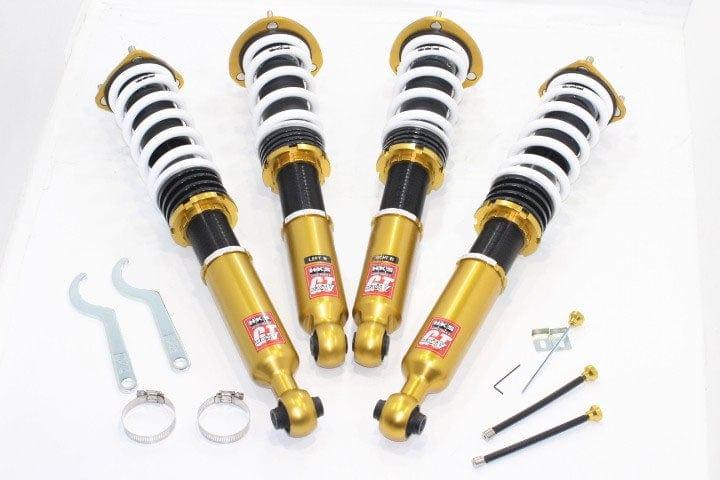

HKS - HIPERMAX IV GT Coilover Kit - Suzuki Alto HA36S

Check products, lead time and fitting infos in the tabs below!
Sku: 80230-AS003
Vendor: HKS
Availability: Usually ships within 10 to 20 days.
Shipping time is additional. Choose your option in the cart page.
$2,475.00 $2,915.00
Maximum quantity available reached.
Specifications:
Manufacturer: HKS
Part Number: 80230-AS003
Type: MAX IV GT
Ref: 80230-AS003

Front:
Dampening Adjustment: 30 Steps
Lowering: F=-34mm (Max Adjustment: 0 ~ -83
Spring Rate: 3kg
Rebound Setting: 22.6Nm
Compression Setting: 9.8Nm


Rear:
Dampening Adjustment: 30 Steps
Lowering: F=-26mm (Max Adjustment: 0 ~ -53
Spring Rate: F=29(3)/R=21(2.2)kg
Rebound Setting: 1.72Nm
Compression Setting: 0.83Nm

The HKS HIPERMAX Series MAX IV GT is the ultimate sports suspension for street and track.

Single Tube Damper Design
Mono tube dampers allow for more accurate and stable control and adjustment of dampening. Lower ride height and center of gravity gives a more stable ride.
Dust Boot
Protect the shaft from the flying stones.
PNE Coating
Using this special surface coating provides 5 times better durability over standard galvanising. This prevents build-up around the threads of the adjustment areas allowing for easier height adjustment.
M Shaft (?46 normal type)
With the new design of cylinder shaft since the HIPERMAX M-1, MAX IV increased the cylinder shaft size to have a firm damping even at a little stroke range by optimizing the oil pressure characteristic. We mainly adopted this to the rear damper that can have a better driving experience.
Adopted Pillow Ball Upper Mount
For more accurate and sharp steering.
New Design Needle
Newly designed needle has been used to revise the very low speed and middle and high speed dampening which is key to a comfort ride.
Reduction of Unsprung Weight
In order to reduce unsprung weight, bracket, ride height adjusters and lock nuts are made from aluminium. (Not for all vehicles)
30 Step Damping Force Adjustment
30 levels of dampening adjustment allow fine tune adjustment for street, circuit winding roads, highway, or the weight of the vehicle.
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

European Tva, Iva: Taxes will be calculated during checkout at our company import rate. No additional charges will be added by your local authority.

USA: If this product is shipped from our US warehouse then taxes are included. Otherwise, please refer to the rest of the world paragragh.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

Alto | HA36S | 2014-2018 | NA | R06A | I3
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
