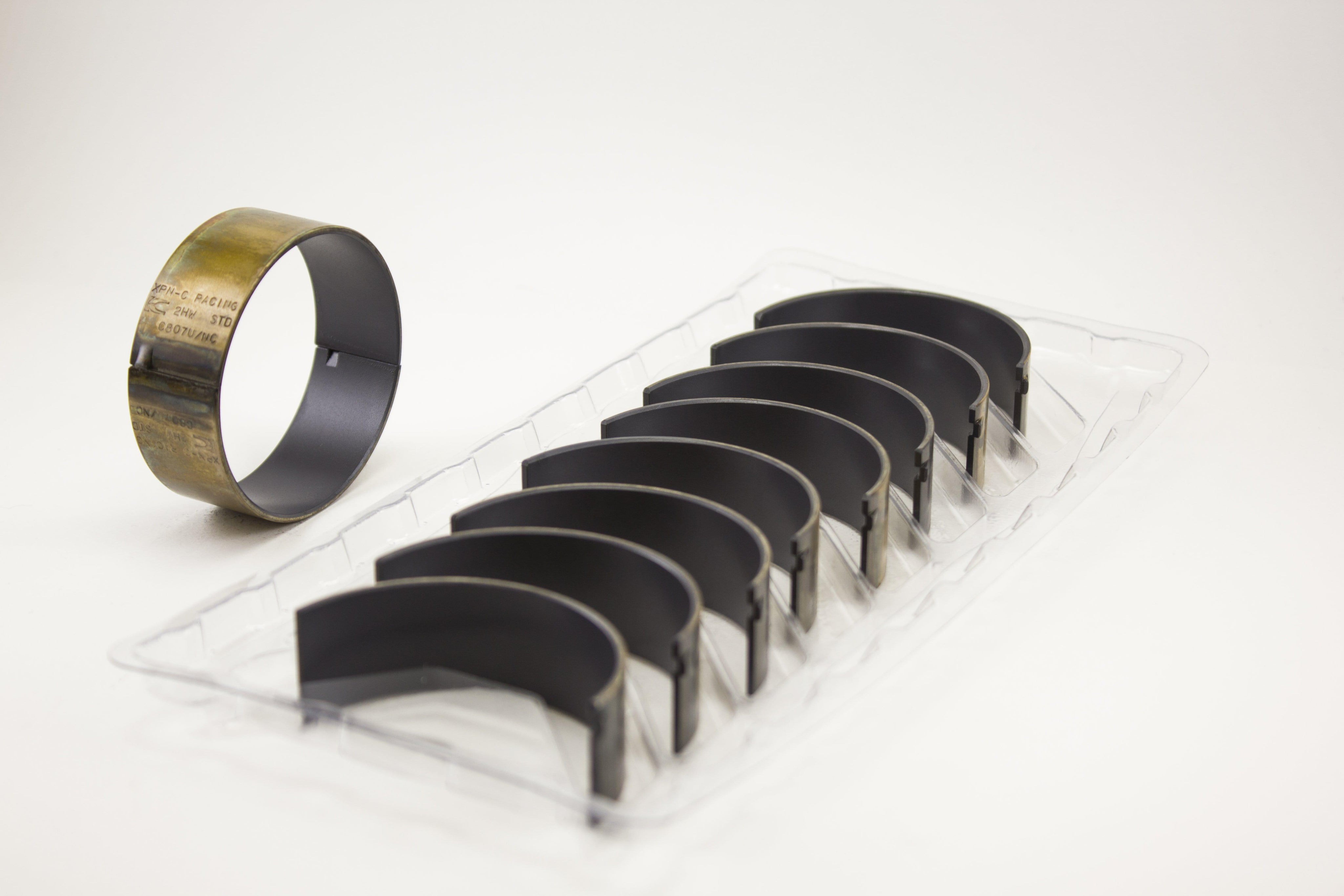

King Mazda B6/B6-T/ZM/B3/B5 (Size +.025) Main Bearing Set

Check products, lead time and fitting infos in the tabs below!
Sku: MB5304XP.026
Availability: Usually ships within 20 to 30 days.
Shipping time is additional. Choose your option in the cart page.
$137.40 $175.00
Maximum quantity available reached.
Specifications:
Manufacturer: King Bearings
Reference Number: MB5304XP.026
Notes: pMaxBlack™ tri-metal structure
Intermediate layer

The intermediate layer of a typical race bearing contains 2-3% tin, with hardness values of 90-95 HV. For a superior pMax Black™ intermediate layer, we increased the tin content to 4.5%, making it 22% harder (115 HV), with a load carrying capacity of 17,000 psi. pMaxBlack™ Overlay

The overlay of a typical high performance bearing consists of a leaded alloy that contains 2-3% copper. It achieves a hardness level of 11 – 14 HV, and a maximum load capacity of 8,000-8,500 psi.

King’s pMaxBlack™ overlay is significantly stronger than conventional overlays due to its 5% copper content and an innovative nano-scaled hardening process.



King XP & XPC race bearings have already led to new records on the race track. King’s ability to meet the continuously changing and challenging demands of the racing industry with our unique materials and geometric features are a testament to the quality and reliability of our bearings, and reinforces our commitment to developing the ultimate race bearings.

The King Racing line contains engine bearingsfor various segments. Equipped with advanced materials and construction techniques, King Racing bearings extend the limits of power, performance and durability.

To achieve the right clearance, they compensate for bearing thickness inconsistencies by grinding cranks “fat” or “thin”, adjusting the housing bore, or purchasing multiple sets to “fish” for shells. The process is time consuming, costly and tedious. King listened to its engine building customers and responded with Bull’s Eye Tolerance™

Bull’s Eye Tolerance™ is a production technology developed by King. It combines highly accurate machining, overplating, and computerized wall thickness monitoring that adjusts the process on-the-spot.
Bull’s Eye Tolerance™ outperforms the industry’s wall thickness tolerance, ensuring the least thickness variation shell-to-shell. The outcome: A new standard in bearing thickness consistency.

With Bull’s Eye Tolerance™:
• No more multiple set purchases or “fishing” for bearings to reach right clearance
• No need to grind cranks “fat” or “thin”
• No need to adjust housing diameter
• Less taper across the bearing face



Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part fits:

Check Fitment here
http://www.king-catalog.com/Catalog/Set/MB5304XP
