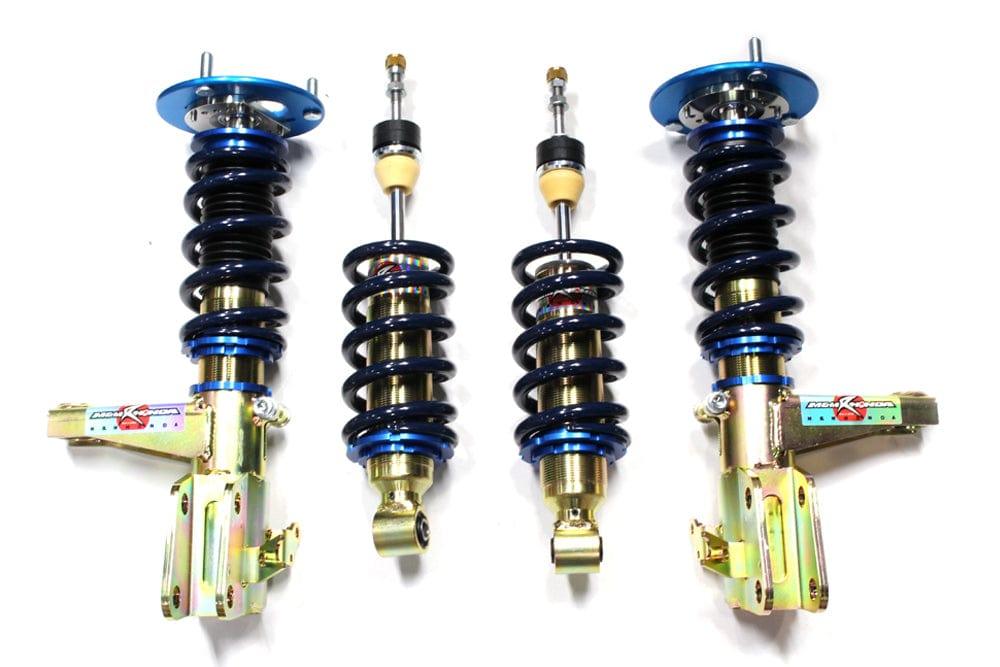

MandM Honda - Coilover Kit - Honda Integra / Type R DC5/DC5R
Contact Us
Share this product on Socials
Regular price
$3,949.00
Description
Specifications:
Manufacturer: MandM Honda
Part Number: 00200-DC5-M003
Damping force adjustment: 20-step simultaneous extension adjustment / front and back
Damping force setting: Fully made to order
Camber setting: Negative 4 degree setting
Pillow upper mount adjustment angle: ---
Vehicle height adjustment range: Possible F / -15mm to -50mm R / -15mm to -50mm (± 5mm)
Front damper structure: Inverted overall length adjustable height
Rear damper structure: Upright screw type Vehicle height adjustment type
Effective stroke: M & M setting
Bump rubber: Urethane
Shock structure: Single cylinder type
Case material: Steel (special processing)
Piston diameter: Front / 50? Rear 50?
Upper mount: ---
Spring: F / series winding 60? R / series winding 65? used Spring rate order setting
Specification change: Possible
Overhaul: Possible
Assumed driving stage: City riding-winding-circuit
The target users are those who are particular about the suspension, those who place importance on circuit settings, and those who demand a high quality ride on the street. It is a special damper that has been repeatedly tested under all conditions without compromising on all conditions such as family, sports and circuit. The biggest feature is the straight arm joint bracket. It is the ultimate form that pursues the optimum alignment when the vehicle height is lowered. M & M HONDA was one of the first to adopt this shape for INTEGRA. The front is an inverted type full length adjustment type harmonic drive, and the rear is an upright type screw type harmonic drive, both of which have a 20-step damping force adjustment function. The cylinder case is made of steel with an emphasis on durability and strength. Alignment enables change of camber angle (3 degrees) and toe-in adjustment range with steering tie rod in the direction of more sportiness.
Manufacturer: MandM Honda
Part Number: 00200-DC5-M003
Damping force adjustment: 20-step simultaneous extension adjustment / front and back
Damping force setting: Fully made to order
Camber setting: Negative 4 degree setting
Pillow upper mount adjustment angle: ---
Vehicle height adjustment range: Possible F / -15mm to -50mm R / -15mm to -50mm (± 5mm)
Front damper structure: Inverted overall length adjustable height
Rear damper structure: Upright screw type Vehicle height adjustment type
Effective stroke: M & M setting
Bump rubber: Urethane
Shock structure: Single cylinder type
Case material: Steel (special processing)
Piston diameter: Front / 50? Rear 50?
Upper mount: ---
Spring: F / series winding 60? R / series winding 65? used Spring rate order setting
Specification change: Possible
Overhaul: Possible
Assumed driving stage: City riding-winding-circuit
The target users are those who are particular about the suspension, those who place importance on circuit settings, and those who demand a high quality ride on the street. It is a special damper that has been repeatedly tested under all conditions without compromising on all conditions such as family, sports and circuit. The biggest feature is the straight arm joint bracket. It is the ultimate form that pursues the optimum alignment when the vehicle height is lowered. M & M HONDA was one of the first to adopt this shape for INTEGRA. The front is an inverted type full length adjustment type harmonic drive, and the rear is an upright type screw type harmonic drive, both of which have a 20-step damping force adjustment function. The cylinder case is made of steel with an emphasis on durability and strength. Alignment enables change of camber angle (3 degrees) and toe-in adjustment range with steering tie rod in the direction of more sportiness.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part Fits :
Integra | DC5 | 2002-2006 | NA | K20Z1 | I4
Integra type R | DC5R Kouki | 2004-2006 | NA | K20A | I4
Integra type R | DC5R Zenki | 2002-2004 | NA | K20A | I4
Integra | DC5 | 2002-2006 | NA | K20Z1 | I4
Integra type R | DC5R Kouki | 2004-2006 | NA | K20A | I4
Integra type R | DC5R Zenki | 2002-2004 | NA | K20A | I4
