Mishimoto - Toyota 86 Thermostatic Oil Cooler Kit - ZN6 - MMOC-BRZ-13T

Check products, lead time and fitting infos in the tabs below!
Sku: MMOC-BRZ-13T
Vendor: Mishimoto
Availability: 9 in Stock in our US Warehouse.
Shipping time is additional.
$1,097.49 $1,116.00
Maximum quantity available reached.
Specifications:
Manufacturer: Mishimoto
Part Number: MMOC-BRZ-13T
Transmission: MT


Direct fit f
Direct fit for the 2013+ Scion FR-S and Subaru BRZ
Application-specific mounting brackets
Premade braided stainless steel oil lines with durable –AN fittings
Billet aluminum oil sandwich plate in standard or thermostatic form
19-row stacked-plate oil cooler for optimal fluid temperature reduction
CNC-machined aluminum spacers for the oil sandwich plate
Increases oil capacity by .65 qt
Mishimoto Lifetime Warranty

Tech Specs
Material 6061 Aluminum
Core Height 5.43"
Rows 19 Cooler Construction Stacked-plate
Core Thickness 1.97"
Core Length 11"
Fitting Size -10AN
Engine Codes FA20
Chassis Codes ZN6, ZC6
Install Torque Specs Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.
Caution It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.
Increase In Oil Capacity 0.65

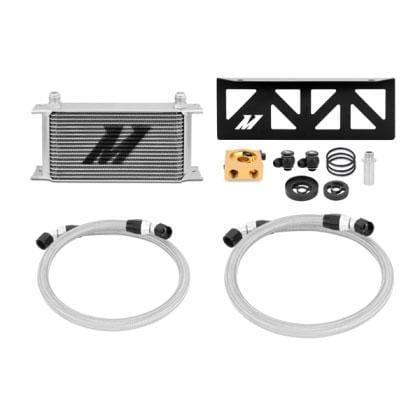

Purchase Includes
(1) Application Specific Mounting Bracket
(1) 19-Row Oil Cooler
(1) 3ft Stainless Steel Braided Hose w/ -10AN Fittings
(1) 4ft 2in Stainless Steel Braided Hose w/ -10AN Fittings
(1) Oil Sandwich Plate
(2) 6061 Aluminum CNC Sandwich Plate Spacers, Black
(1) Stainless Steel Sandwich Plate Adapter, M20
(2) Banjo Fitting w/ Bolt M20 x -10AN, Black
(2) 1/8" NPT Plugs
(3) O-rings
(1) Mounting Hardware Set

Description
Mishimoto proudly announces the all-new direct-fit oil cooler kit specifically designed for the Subaru BRZ and Scion FR-S. This direct-fit kit positions a large cooler in the front bumper for ample airflow and optimal cooling – perfect for your street or track BRZ/FR-S. Properly regulated oil temperatures ensure improved durability and longevity for your stock or modified 2.0L.

This kit features all components for seamless bolt-on fitment, including application-specific mounting brackets, stainless steel braided oil lines, a Mishimoto billet aluminum oil sandwich plate, and CNC-machined aluminum spacers for the oil sandwich plate. This oil cooler kit substantially decreases oil temperatures, making it ideal for a hot day at the track or a spirited drive in the mountains.

This oil cooler kit is available with our standard Oil Sandwich Plate or Oil Sandwich Plate with Rear-Mounted Thermostat for additional oil temperature control. It is also a perfect complement to the Mishimoto Subaru BRZ / Scion FR-S Performance Aluminum Radiator and the Mishimoto Silicone Radiator Hose Kit for the ultimate cooling solution for your vehicle.

The Mishimoto Subaru BRZ / Scion FR-S Direct-Fit Oil Cooler Kit is offered with your choice of Stealth Black or Sleek Silver coolers and includes the Mishimoto Lifetime Warranty
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

USA: Taxes are included in this product pricing.

European Tva, Iva: Taxes will be calculated during checkout at our company import rate. No additional charges will be added by your local authority.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our US Warehouse to any global location. Shipping via DHL/Fedex within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

86 | ZN6 SPEC A | 2012-2013 | NA | 4U-GSE | H4
86 | ZN6 SPEC B | 2013-2014 | NA | 4U-GSE | H4
86 | ZN6 SPEC C | 2014-2015 | NA | 4U-GSE | H4
86 | ZN6 SPEC D | 2015-2016 | NA | 4U-GSE | H4
86 | ZN6 SPEC E | 2016-2018 | NA | 4U-GSE | H4
