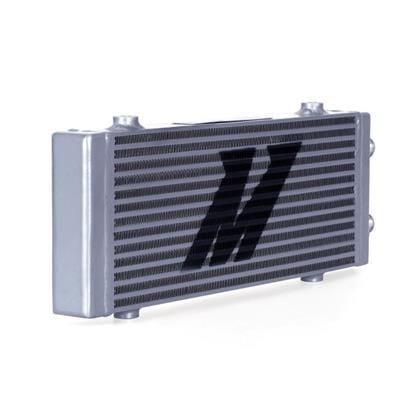

Mishimoto - Universal Dual Pass Bar & Plate Oil Cooler - Universal - MMOC-DP-MSL

Check products, lead time and fitting infos in the tabs below!
Sku: MMOC-DP-MSL
Vendor: Mishimoto
Availability: 2 in Stock in our US Warehouse.
Shipping time is additional.
$527.20 $535.00
Maximum quantity available reached.
Specifications:
Manufacturer: Mishimoto
Part Number: MMOC-DP-MSL

Features
Durable Bar & Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
10AN fittings for attaching oil lines
100% aluminum construction with CNC end tanks
Reduces oil temperatures with minimal pressure loss
Increased oil system capacity for increased cooling capability
Available in Sleek Silver or Stealth Black

Tech Specs
Material 6061 Aluminum
Core Height 5.51"
Cooler Construction Bar-and-Plate
Note For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
Core Thickness 1.57"
Overall Height 6.30"
Overall Length 17.01"
Overall Width 1.57"
Core Size 13.98" x 5.51"
Inlet -10AN
Outlet -10AN
Purchase Includes
(1) Oil Cooler
Fluid Capacity 0.65 qt

Description
As anyone who’s spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core – oil enters one side, travels around the core, and exits again on the same side. Ideal for most builds, Mishimoto’s medium-sized dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.

Features
Durable Bar & Plate cooler design for use in custom applications
Dual Pass design for optimal fluid temperature reduction
M8x1.25 Welded bungs to use for attaching brackets
10AN fittings for attaching oil lines
100% aluminum construction with CNC end tanks
Reduces oil temperatures with minimal pressure loss
Increased oil system capacity for increased cooling capability
Available in Sleek Silver or Stealth Black

Tech Specs
Material 6061 Aluminum
Core Height 5.51"
Cooler Construction Bar-and-Plate
Note For your taste, only one side of the silver oil coolers has the Mishimoto "M" Logo, the stealth black option does not have a logo
Core Thickness 1.57"
Overall Height 6.30"
Overall Length 17.01"
Overall Width 1.57"
Core Size 13.98" x 5.51"
Inlet -10AN
Outlet -10AN
Purchase Includes
(1) Oil Cooler
Fluid Capacity 0.65 qt

Description
As anyone who’s spent some time on the track will tell you, one of the most important things to keep under control while pushing the limits of your vehicle is oil temperature. Oil that gets too hot will lose its viscosity, which is the very characteristic that makes it thick, slippery, and useful for lubrication. Adding a Mishimoto race oil cooler to your ride will ensure that your oil stays cool enough to do its job, extending the life of the high-wear components within your block and letting you focus not on keeping things cool, but taking home the checkered flag. Available in your choice of sleek silver or stealth black, this particular oil cooler features a dual pass core – oil enters one side, travels around the core, and exits again on the same side. Ideal for most builds, Mishimoto’s medium-sized dual pass oil cooler will help keep temperatures in check while you shoot for the podium finish.
