MoonFace - Gen B High Performance Damper Standard Body - Toyota Hiace Van TRH/KDH/GDH200 series

Brand: MoonFace
SKU: SPD01H
Availability: Usually ships from the manufacturer within 10 to 20 days.
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$1,350.00

Description

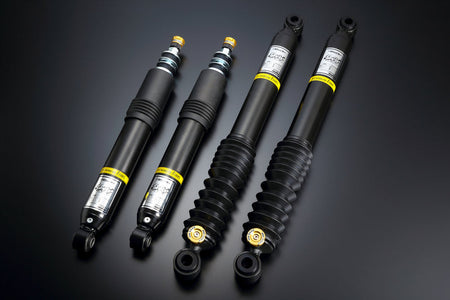

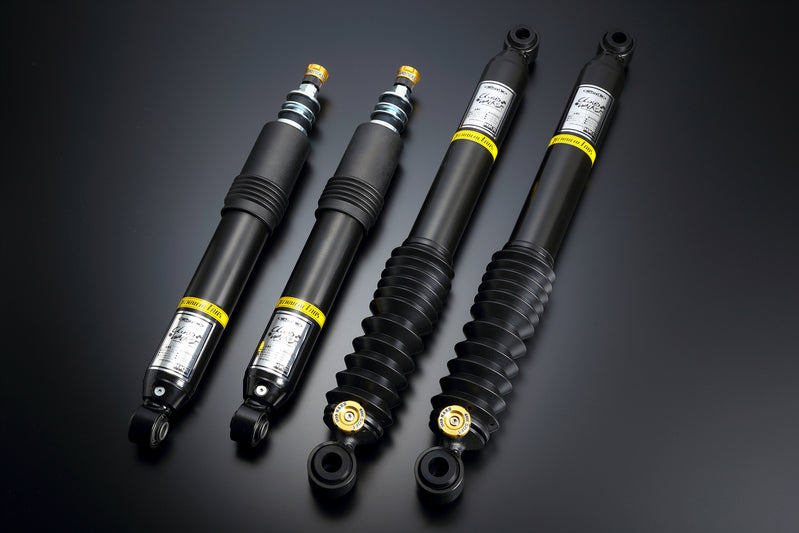

Genb (Standard) High Performance Damper — SPD01H

Developed specifically for the 200-series Toyota Hiace (Standard Body only), the Genb High Performance Damper is tuned to transform the Hiace into a sharper, more stable cornering machine. By focusing damping values exclusively on the standard-body chassis (including body rigidity, chassis dimensions, and tread width), it delivers more linear handling while reducing rear “bounce” for a sportier, more controlled feel. :contentReference[oaicite:0]{index=0}

Key Features

  • Monotube design for stable damping force from very low-speed movement (?50mm/sec), improving response and control in real driving conditions. :contentReference[oaicite:1]{index=1}
  • 10-step damping force adjustment to match different vehicle weights, passenger loads, and driving preferences. :contentReference[oaicite:2]{index=2}
  • Developed with total suspension balance in mind, inspired by the “Skyhook theory” concept used in active suspension logic—designed to work as a system with related bump/rebound components. :contentReference[oaicite:3]{index=3}
  • JAPAN MADE by HKS. :contentReference[oaicite:4]{index=4}
  • Meets Japanese safety standards (note: final inspection/roadworthiness judgment may vary by inspector). :contentReference[oaicite:5]{index=5}

Vehicle Fitment

  • Compatible models: Hiace TRH / KDH / GDH 200-series
  • Body type: Standard Body only

:contentReference[oaicite:6]{index=6}

Supported Ride Height

  • Supported: Standard ride height to 2.0" down (approx. -50mm) :contentReference[oaicite:7]{index=7}
  • Up to 2.5" down (approx. -62.5mm) is possible when used with RC Joint, as lower arm angle correction helps maintain suspension stroke. :contentReference[oaicite:8]{index=8}

Important Notes

  • No overhaul support (non-serviceable / overhaul not available). :contentReference[oaicite:9]{index=9}
  • Warranty: 2 years / 40,000 km (based on HKS warranty program; manufacturing defects repaired free of charge). :contentReference[oaicite:10]{index=10}
  • If your vehicle is equipped with a resonator, damping adjustment work may be difficult. For easier adjustment access, Genb recommends using a “Resonator Canceller” together. :contentReference[oaicite:11]{index=11}
  • This product is intended for use with OEM leaf springs or Genb “REAL FORCE” Tuned Leaf Springs. It is not compatible with modified/custom leaf springs. :contentReference[oaicite:12]{index=12}

Product Information

  • Product Name: High Performance Damper
  • Product Code: SPD01H

:contentReference[oaicite:13]{index=13}

Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
This part Fits :

Hiace Van | TRH200K | 2004-2004 | NA | 1TR-FE | I4
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
