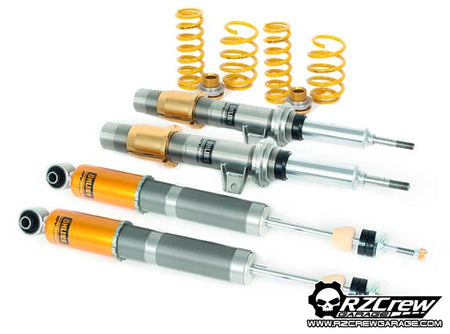

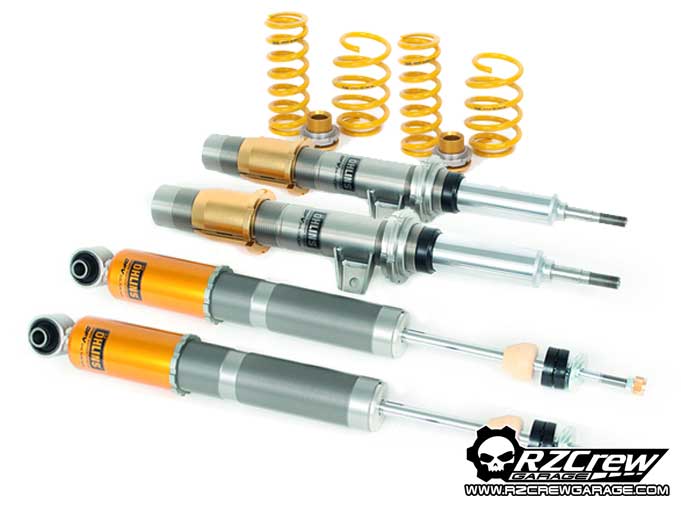

Öhlins - Road & Track DFV Coilover Kit - BMW 3 Series M3 E90 / E92 / E93
Contact Us
Share this product on Socials
Regular price
$4,557.20
Regular price
-11%
$5,138.00
Sale price
$4,557.20
Description
Specifications:
Manufacturer: Öhlins
Part Number: BMS MI40S1
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Use Original Top Mounts
- Vehicle Height: -20mm
- Height Adjustment Range: -5mm ~ -35mm
- Spring Rate: 6kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Use Original Top Mounts
- Vehicle Height: -20mm
- Height Adjustment Range: -5mm ~ -35mm
- Spring Rate: 12kg

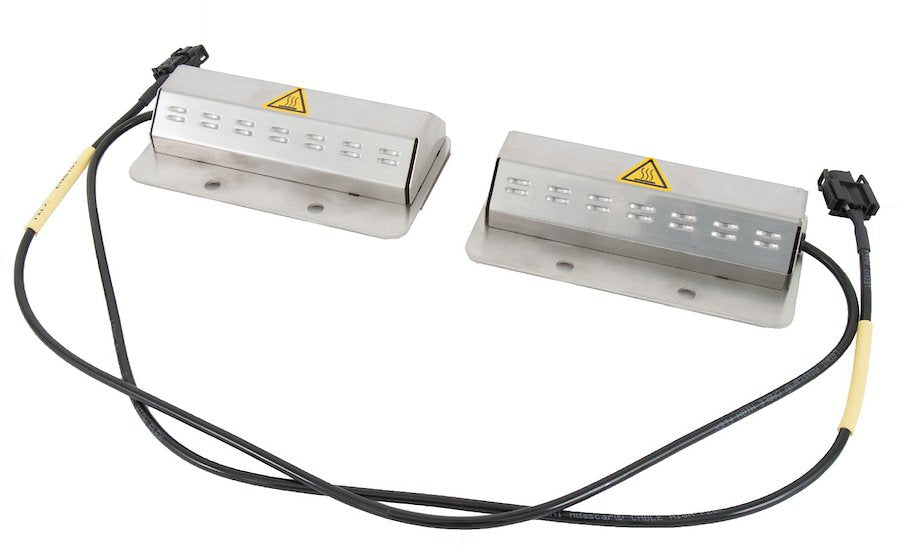

EDC Cancellation Kit (35020-04) deactivates the error light on the dashboard when the electronically adjustable OEM suspensions is replaced by the Öhlins mechanical system.
The cancellation kit is plugged into the original suspension controls. No further programming is needed.Performance Suspension for the Road & Track
Öhlins Road & Track Suspension Kits have been designed and developed from over 30 years of motorsport success.
With these kits you can now have a track focused kit that gives a ride smooth enough be used on the road. Never before have such high end performance dampers been available for road cars at a reasonable cost.
The damping rate on the Öhlins Road & Track units is fully adjustable and ties compression and rebound together as a matched setting. In 99 percent of cases, Öhlins dampers will suit the customers needs straight from the box, although the Öhlins approved fully trained service centre can provide further assistance if required.
Many of the applications available are ride height adjustable without affecting the fitted length and preload of the spring, although spring preload can also be adjusted.
A unique feature on the Öhlins Road & Track dampers is the Dual Flow Valve (DFV) technology. This additional valve supports the basic function of the main piston by allowing increased oil flow through ports in the DFV with sudden damper accelerations, which translates into a more supple ride on uneven road surfaces. The DFV responds automatically to increased shaft speeds, therefore ensuring the adjustability of the shock absorber is not over complicated and instead can easily be set between firm and soft settings via a single adjuster (32 settings).
Backed by a 2 year limited warranty, Öhlins Road&Track is designed to improve the performance and comfort of your car. With Öhlins DNA integrated throughout, this suspension is the must have upgrade for your automobile.
Manufacturer: Öhlins
Part Number: BMS MI40S1
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Use Original Top Mounts
- Vehicle Height: -20mm
- Height Adjustment Range: -5mm ~ -35mm
- Spring Rate: 6kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Use Original Top Mounts
- Vehicle Height: -20mm
- Height Adjustment Range: -5mm ~ -35mm
- Spring Rate: 12kg
EDC Cancellation Kit (35020-04) deactivates the error light on the dashboard when the electronically adjustable OEM suspensions is replaced by the Öhlins mechanical system.
The cancellation kit is plugged into the original suspension controls. No further programming is needed.Performance Suspension for the Road & Track
Öhlins Road & Track Suspension Kits have been designed and developed from over 30 years of motorsport success.
With these kits you can now have a track focused kit that gives a ride smooth enough be used on the road. Never before have such high end performance dampers been available for road cars at a reasonable cost.
The damping rate on the Öhlins Road & Track units is fully adjustable and ties compression and rebound together as a matched setting. In 99 percent of cases, Öhlins dampers will suit the customers needs straight from the box, although the Öhlins approved fully trained service centre can provide further assistance if required.
Many of the applications available are ride height adjustable without affecting the fitted length and preload of the spring, although spring preload can also be adjusted.
A unique feature on the Öhlins Road & Track dampers is the Dual Flow Valve (DFV) technology. This additional valve supports the basic function of the main piston by allowing increased oil flow through ports in the DFV with sudden damper accelerations, which translates into a more supple ride on uneven road surfaces. The DFV responds automatically to increased shaft speeds, therefore ensuring the adjustability of the shock absorber is not over complicated and instead can easily be set between firm and soft settings via a single adjuster (32 settings).
Backed by a 2 year limited warranty, Öhlins Road&Track is designed to improve the performance and comfort of your car. With Öhlins DNA integrated throughout, this suspension is the must have upgrade for your automobile.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our UK Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our UK Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part Fits :
3 Series M3 | E90 | 2008-2013 | NA | S65B40 | V8
3 Series M3 | E92 | 2008-2013 | NA | S65B40 | V8
3 Series M3 | E93 | 2008-2013 | NA | S65B40 | V8
3 Series M3 | E90 | 2008-2013 | NA | S65B40 | V8
3 Series M3 | E92 | 2008-2013 | NA | S65B40 | V8
3 Series M3 | E93 | 2008-2013 | NA | S65B40 | V8
RZCREW Tech!!
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
