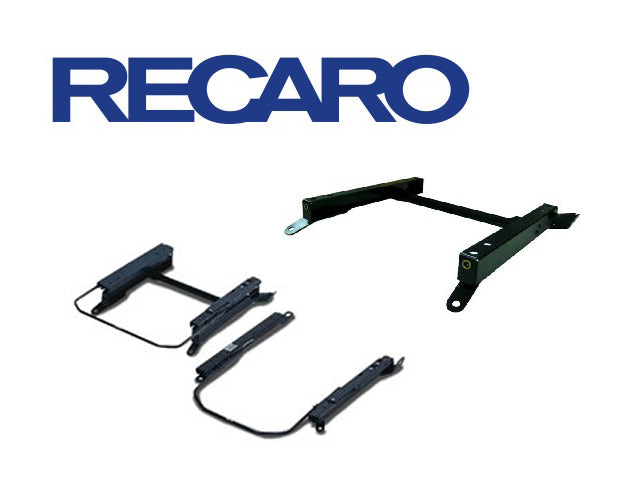

Recaro Japan - Base Frame Right Seat Rail Standard - Toyota - 86 ZN8
Contact Us
Share this product on Socials
Regular price
$247.00
Description
Specifications:
Manufacturer: Recaro Japan
Reference Number: 2080.042.2/
Position:
(Note) This product cannot be installed on any seats other than those listed in the matching information below. Driver's seat frame (right seat). Side airbag canceller included.
Notes and Remarks:
Type: New-type frame. One-position type.
The factory seat's built-in side airbag function will be lost. The airbag warning light must be turned off. The seating position is approximately 5 mm higher than the lowest position of the factory seat's height adjustment function (when using the New LX-F). The Recaro seat's steering wheel offset is approximately 8 mm closer to the door from the center of the steering wheel. The sliding distance is 20 mm shorter than the factory seat.
When installing the RS-G/TS-G, if you are more concerned about steering wheel offset than seating height in the driver's seat, you can adjust it using the separately sold offset adapter (product number 1700001J). For the RMS, please use the separately sold RMS side adapter to adjust to the optimal position (front/rear height, left/right offset 0/5/10mm). For the RCS, please use the separately sold RCS side adapter to adjust to the optimal position (front/rear height, left/right offset 0/5/10mm).
Seat Fitting:
(Note) This product cannot be installed on seats other than those listed in the matching information below. The Demio was replaced with the Mazda2 in September 2019. Side airbag cancellers are included. Compatibility with vehicles equipped with optional seat accessories has not been confirmed.
Fits the following seats:<
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
Manufacturer: Recaro Japan
Reference Number: 2080.042.2/
Position:
(Note) This product cannot be installed on any seats other than those listed in the matching information below. Driver's seat frame (right seat). Side airbag canceller included.
Notes and Remarks:
Type: New-type frame. One-position type.
The factory seat's built-in side airbag function will be lost. The airbag warning light must be turned off. The seating position is approximately 5 mm higher than the lowest position of the factory seat's height adjustment function (when using the New LX-F). The Recaro seat's steering wheel offset is approximately 8 mm closer to the door from the center of the steering wheel. The sliding distance is 20 mm shorter than the factory seat.
When installing the RS-G/TS-G, if you are more concerned about steering wheel offset than seating height in the driver's seat, you can adjust it using the separately sold offset adapter (product number 1700001J). For the RMS, please use the separately sold RMS side adapter to adjust to the optimal position (front/rear height, left/right offset 0/5/10mm). For the RCS, please use the separately sold RCS side adapter to adjust to the optimal position (front/rear height, left/right offset 0/5/10mm).
Seat Fitting:
(Note) This product cannot be installed on seats other than those listed in the matching information below. The Demio was replaced with the Mazda2 in September 2019. Side airbag cancellers are included. Compatibility with vehicles equipped with optional seat accessories has not been confirmed.
Fits the following seats:<
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part fits:
86 | ZN8 | 2021-2023 | NA | FA24 | H4
86 | ZN8 | 2021-2023 | NA | FA24 | H4
