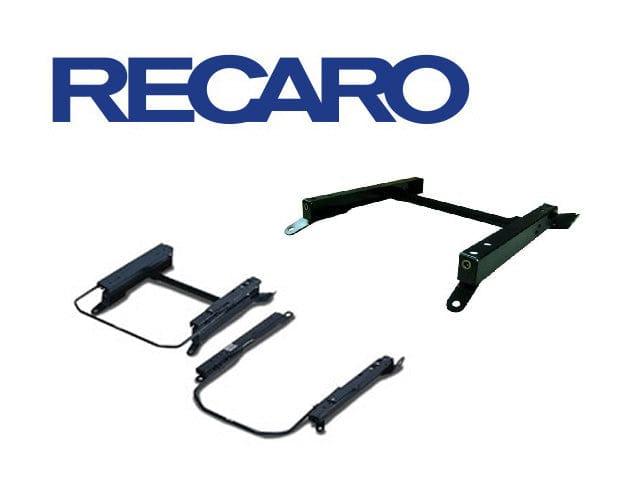

Recaro Japan - Base Frame Seat Rail Standard Left - Honda Shuttle GK8/GK9 (2015-2021)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS:
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller. Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.) Seating position: Height is 9mm higher than OEM lowest position.(A case of New LX-F) Handle offset is 9mm to door side compared to OEM seat.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. i-side airbag car can be used.Including safety package car.Attached a side airbag canceller. Sports frame type.Spacer includes 2WD-4WDIncluding a hybrid car
- Due to large size center console, there is interference between seat cushion side and center console. Orthopad、SPORT/STYLE/TREND, SR-6/7/11=10-15mm. SR-7F, LX-F, Sportster, Old LX, Ergomed=0-5mm, RS/TS-# series need RS/TS-G offset adapter(PN 1700001J.1700001J is adjustable offset (5mm/10mm/15mm). Racer, SP-# need SP-G offset adapter (PN 1600094J.RS/TS-# series need RS/TS-G offset adapter(PN 1700001J.1700001J is adjustable offset (5mm/10mm/15mm).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller. Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.) Seating position: Height is 9mm higher than OEM lowest position.(A case of New LX-F) Handle offset is 9mm to door side compared to OEM seat.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. i-side airbag car can be used.Including safety package car.Attached a side airbag canceller. Sports frame type.Spacer includes 2WD-4WDIncluding a hybrid car
- Due to large size center console, there is interference between seat cushion side and center console. Orthopad、SPORT/STYLE/TREND, SR-6/7/11=10-15mm. SR-7F, LX-F, Sportster, Old LX, Ergomed=0-5mm, RS/TS-# series need RS/TS-G offset adapter(PN 1700001J.1700001J is adjustable offset (5mm/10mm/15mm). Racer, SP-# need SP-G offset adapter (PN 1600094J.RS/TS-# series need RS/TS-G offset adapter(PN 1700001J.1700001J is adjustable offset (5mm/10mm/15mm).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Honda - Shuttle - GK8 (2015-2017) L15B
Honda - Shuttle - GK8 (2017-2021) L15B
Honda - Shuttle - GK9 (2015-2017) L15B
Honda - Shuttle - GK9 (2017-2021) L15B
Honda - Shuttle - GK8 (2015-2017) L15B
Honda - Shuttle - GK8 (2017-2021) L15B
Honda - Shuttle - GK9 (2015-2017) L15B
Honda - Shuttle - GK9 (2017-2021) L15B
