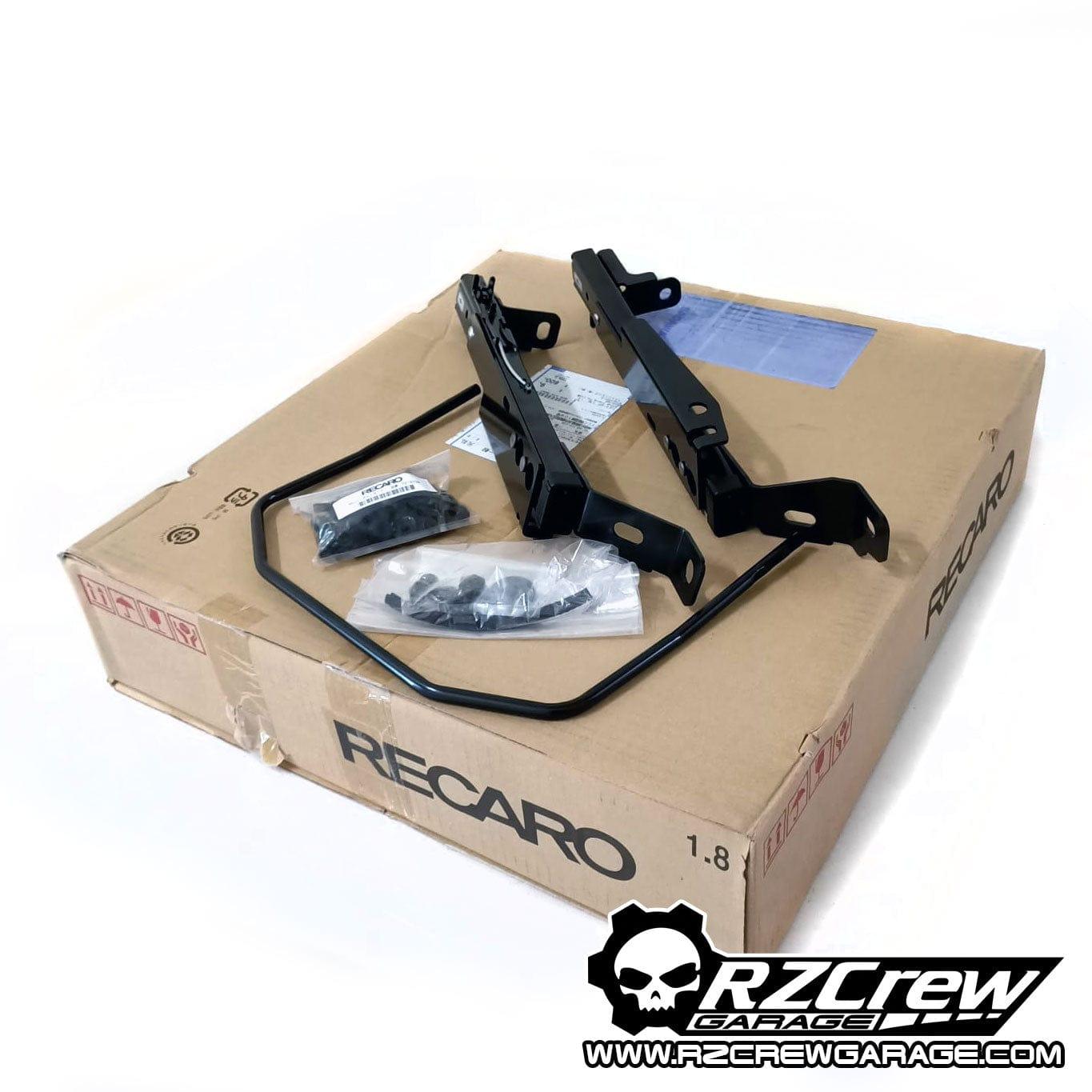

Recaro Japan - Base Frame Seat Rail Standard Left - Nissan Leaf ZE1 (2017-2025)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Seating position: 6mm lower than the lowest height of OEM seat. (A case of New LX-F) Seat offset is same as OEM seat. The length of slider is 20 mm shorter than OEM slider.Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Attached a side airbag canceller. Modification is needed to replace rear heating switch from passenger seat to another place. Optional equipment car is unconfirmed.
- IS-84 LX(Including JP ERGOMED series),LS,LT need thin type recliner dial(PN 1600090J) need to replace standard recliner dial on inner side to reduce interference on console side. There is interference between seat recliner and floor carpet on the most rear position. => Sportster,Cross Sportster. There is a few mm interference between seat backrest side and door trim=>TREND. SP-#,Racer needs SP-G offset adapter (PN 1600094J).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure): Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#: Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Seating position: 6mm lower than the lowest height of OEM seat. (A case of New LX-F) Seat offset is same as OEM seat. The length of slider is 20 mm shorter than OEM slider.Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Attached a side airbag canceller. Modification is needed to replace rear heating switch from passenger seat to another place. Optional equipment car is unconfirmed.
- IS-84 LX(Including JP ERGOMED series),LS,LT need thin type recliner dial(PN 1600090J) need to replace standard recliner dial on inner side to reduce interference on console side. There is interference between seat recliner and floor carpet on the most rear position. => Sportster,Cross Sportster. There is a few mm interference between seat backrest side and door trim=>TREND. SP-#,Racer needs SP-G offset adapter (PN 1600094J).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure): Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#: Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
