Recaro Japan - Base Frame Seat Rail Standard Left - Nissan March K13/K13 NISMO/NK13 (2010-2018)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position).
PRODUCT NOTES:
- Seat position: height is same as lowermost OEM seat. (Middle position of 3 position rail with ST-JJ) 15mm to door from OEM seat.The length of slider is 20mm shorter than OEM seat on front side.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.For non-side airbag car only. 2WD.
- CS,CSEfor back rest side and Doorarm rest interfere,seat height is raised due to use of spacers.SR-3,4,5for back rest side and DoorArm Rest approximately 10mm interfere,seat cushion side and Doorinterfere.new A-8,A-8はshoulder area andB-Pillarinterfere.Trend-J,JJ,JC,D,DCfor back rest side and DoorArm Rest approximately10-5mm interfere.Style-J,JJ,JC,D,DCfor back rest side and Doorarm rest interfere.Sport-J,JJ,JC,D,DCfor back rest side and DoorArm Rest approximately 10mm interfere.RS/TS-# series need RS/TS-G offset adapter(PN 1700001J/1700001J is adjustable offset (5mm/10mm/15mm).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- CS / CR / CG / COMFOMED
- CSE
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Late model A-8
- Early model A-8
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
- Armrest: 2 or 3
DISCLAIMER:

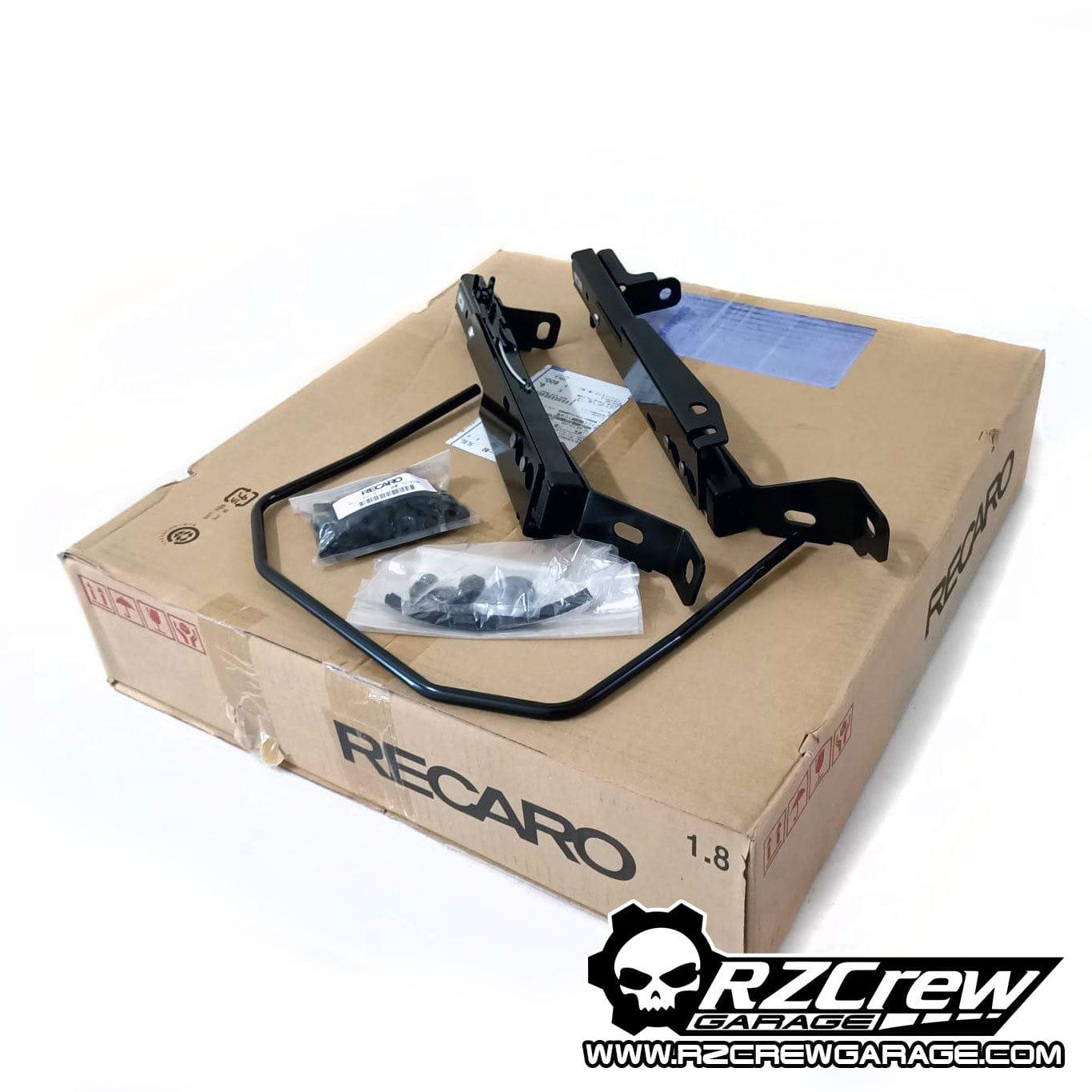

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position).
PRODUCT NOTES:
- Seat position: height is same as lowermost OEM seat. (Middle position of 3 position rail with ST-JJ) 15mm to door from OEM seat.The length of slider is 20mm shorter than OEM seat on front side.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.For non-side airbag car only. 2WD.
- CS,CSEfor back rest side and Doorarm rest interfere,seat height is raised due to use of spacers.SR-3,4,5for back rest side and DoorArm Rest approximately 10mm interfere,seat cushion side and Doorinterfere.new A-8,A-8はshoulder area andB-Pillarinterfere.Trend-J,JJ,JC,D,DCfor back rest side and DoorArm Rest approximately10-5mm interfere.Style-J,JJ,JC,D,DCfor back rest side and Doorarm rest interfere.Sport-J,JJ,JC,D,DCfor back rest side and DoorArm Rest approximately 10mm interfere.RS/TS-# series need RS/TS-G offset adapter(PN 1700001J/1700001J is adjustable offset (5mm/10mm/15mm).RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- CS / CR / CG / COMFOMED
- CSE
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Late model A-8
- Early model A-8
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
- Armrest: 2 or 3
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Nissan - March - K13 (2010-2018) HR12DE
Nissan - March - K13 NISMO (2013-2018) HR15DE
Nissan - March - NK13 (2010-2018) HR12DE
Nissan - March - K13 (2010-2018) HR12DE
Nissan - March - K13 NISMO (2013-2018) HR15DE
Nissan - March - NK13 (2010-2018) HR12DE
