Recaro Japan - Base Frame Seat Rail Standard Left - Subaru Levorg VM4 Applied A-D (2014-2021)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller.Seating position: in case using adapter frame, 12mm higher than the lowest height of OEM seat. Without adapter frame: 26mm lower. (A case of STYLE-JJ) Seat offset is 5mm to door side from OEM seat. The length of slider is 20 mm shorter than OEM slider.Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.Sport frame. Attached a side airbag canceller.
- For passenger side: SP-#,Racer: There is some interference between seat shoulder and B-pillar. Racer, SP-# needs SP-G offset adapter (PN 1600094J. SR-3.4.5, old Orthopad, SPORT-JC: seat cushion interferes with center console at the front most on seat slider.( a few mm). RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:

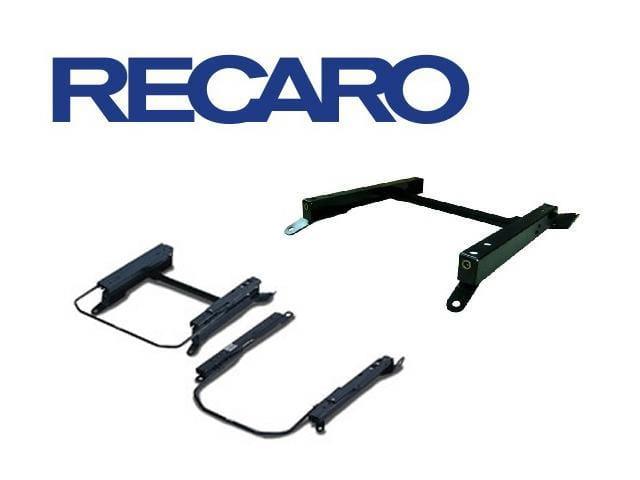

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Left
Type: New-type frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller.Seating position: in case using adapter frame, 12mm higher than the lowest height of OEM seat. Without adapter frame: 26mm lower. (A case of STYLE-JJ) Seat offset is 5mm to door side from OEM seat. The length of slider is 20 mm shorter than OEM slider.Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.Sport frame. Attached a side airbag canceller.
- For passenger side: SP-#,Racer: There is some interference between seat shoulder and B-pillar. Racer, SP-# needs SP-G offset adapter (PN 1600094J. SR-3.4.5, old Orthopad, SPORT-JC: seat cushion interferes with center console at the front most on seat slider.( a few mm). RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Subaru - Levorg - VM4 Applied A (2014-2015) FB16
Subaru - Levorg - VM4 Applied B (2015-2016) FB16
Subaru - Levorg - VM4 Applied C (2016-2017) FB16
Subaru - Levorg - VM4 Applied D (2017-2021) FB16
Subaru - Levorg - VM4 Applied A (2014-2015) FB16
Subaru - Levorg - VM4 Applied B (2015-2016) FB16
Subaru - Levorg - VM4 Applied C (2016-2017) FB16
Subaru - Levorg - VM4 Applied D (2017-2021) FB16
