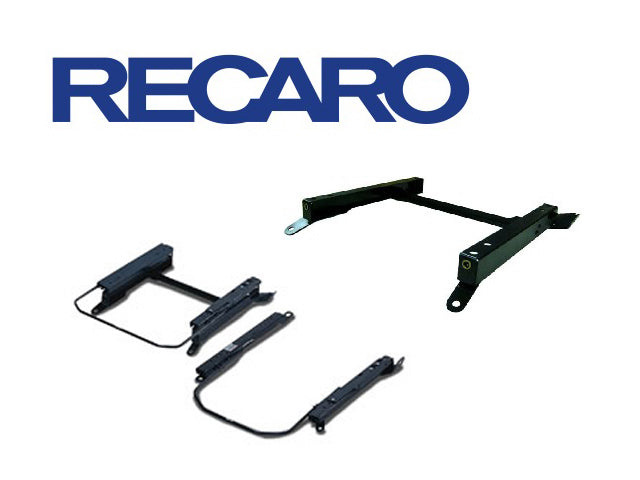

Recaro Japan - Base Frame Seat Rail Standard - Mazda - 2 Demio DJ3FS

Specifications:
Manufacturer: Recaro Japan
Reference Number: 2082.004.1/ 2082.004.2

Position:
Base Frame Seat Rail Standard Type Left - DJ3AS DJ3FS DJ5FS DJ3AS DJLFS CX-3 DK5AW DK5FW
Notes and Remarks:


New frame structure. Three height settings available. (Some vehicle models require the legs of the slide rail to be cut depending on the installation position. Please test fit before installation.)


The side airbags built into the factory seats will no longer function. Vehicles equipped with side airbags require the airbag warning light to be turned off. When a Recaro seat is installed in the passenger seat, the occupant detection sensor will no longer function, and the seatbelt warning light will no longer illuminate. The seating position will be approximately 6mm higher when the factory seat's three-stage height adjustment is set to the center position (adjustable 13mm up and 13mm down) compared to the lowest position (when using the New LX-F). The Recaro seat's lateral position is approximately 6mm closer to the door compared to the factory seat. The sliding position is 20mm shorter forward compared to the factory seat. Please carefully read the notes below for each seat.

For the IS-05 series SR-6, 7 (excluding 7F), 11, and AM19 series (STYLE, TREND, SPORT), the seat cushion interferes with the center console by 5-10mm at the front end of the slide rail. For the Sportster and Cross Sportster, the seat cushion interferes with the center console by 5-10mm (passenger side) at the front end of the slide rail. For the IS-84 series old LX (including Ergomed), LS, and LT, there is approximately 1-5mm of interference, so the recliner dial (triangular) on the center console must be replaced with a thin recliner dial (product number 1600090J). For the RS-G and TS-G, the shoulder section interferes with the B-pillar by approximately 1mm (driver's side). Regarding the SP-#, compatibility is not possible due to excessive interference with the B-pillar, but it can be installed with the SP-G Offset Adapter Set (product number 1600094J), assuming approximately 3-5mm of interference. For RMS, please use the separately sold RMS side adapters to adjust the position (front/rear height, left/right offset 0/5/10mm) before installation. Any interference with the interior can also be alleviated by adjustment. For RCS, please use the separately sold RCS side adapters to adjust the position (front/rear height, left/right offset 0/5/10mm) before installation.

Seat Fitting:
(Note) This product cannot be installed on seats other than those listed in the matching information below. The Demio was replaced with the Mazda2 in September 2019. Side airbag cancellers are included. Compatibility with vehicles equipped with optional seat accessories has not been confirmed.
Fits the following seats:<
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure): Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#: Replace with a thin recliner dial (sold separately; 2200Yen) to avoid (alleviate) interference with the car.
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
