Recaro Japan - Base Frame Seat Rail Standard Right - Nissan Cedric/Gloria HY34/MY34 (1999-2004)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Right
Type: Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position)
PRODUCT NOTES:
- Function of side airbag loses.Need to cancel airbag warning indicator. Please use airbag canceller
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.Attached a side airbag canceller. 2WD. (The car type which has auto-driving-position seat and auto-seat-slide function is not checked whether can be installed.)
- LS,SR-3,4,5,Style-J,JJ,JC,D,DC= there is 5-10mm interference between backrest side and door armrest on the frontmost position and there is interference between seat cushion and console on the frontmost position. Old Orthopad= thaere is big interference between dial for width adjustment and door armrest and there is 5-10mm interference between backrest side and door armrest. In case of old Orthopad, there is 5-10mm interference between backrest side and door armrest. Trend,Sport J,JJ,JC,D,DC= there is interference between backrest side and door armrest and there is 5-10mm interference between backrest side and door armrest on the frontmost position. SR-1,2=there is 15-20mm interference between backrest side and door armrest on the frontmost position. there is 15-20mm interference between seat cushion and console on the frontmost position. RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Rally Special / First Generation SR / SR-2 early model
- Late model A-8
- Early model A-8
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:

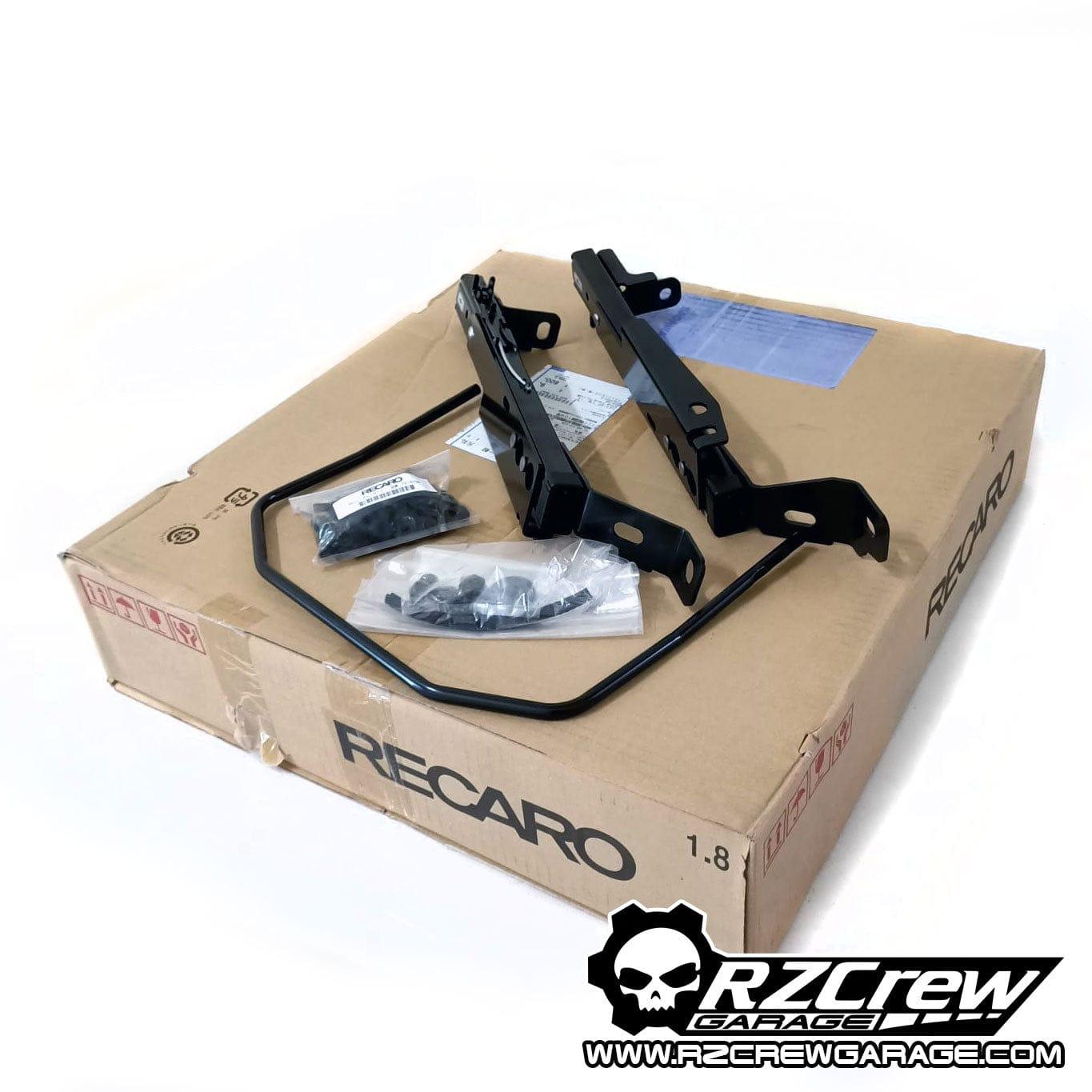

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Right
Type: Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position)
PRODUCT NOTES:
- Function of side airbag loses.Need to cancel airbag warning indicator. Please use airbag canceller
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car.Attached a side airbag canceller. 2WD. (The car type which has auto-driving-position seat and auto-seat-slide function is not checked whether can be installed.)
- LS,SR-3,4,5,Style-J,JJ,JC,D,DC= there is 5-10mm interference between backrest side and door armrest on the frontmost position and there is interference between seat cushion and console on the frontmost position. Old Orthopad= thaere is big interference between dial for width adjustment and door armrest and there is 5-10mm interference between backrest side and door armrest. In case of old Orthopad, there is 5-10mm interference between backrest side and door armrest. Trend,Sport J,JJ,JC,D,DC= there is interference between backrest side and door armrest and there is 5-10mm interference between backrest side and door armrest on the frontmost position. SR-1,2=there is 15-20mm interference between backrest side and door armrest on the frontmost position. there is 15-20mm interference between seat cushion and console on the frontmost position. RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Rally Special / First Generation SR / SR-2 early model
- Late model A-8
- Early model A-8
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Nissan - Cedric/Gloria - HY34 (1999-2001) VQ30DD
Nissan - Cedric/Gloria - HY34 (2001-2004) VQ30DD
Nissan - Cedric/Gloria - HY34 (1999-2001) VQ30DET
Nissan - Cedric/Gloria - HY34 (2001-2004) VQ30DET
Nissan - Cedric/Gloria - MY34 (1999-2001) VQ25DD
Nissan - Cedric/Gloria - MY34 (2001-2004) VQ25DD
Nissan - Cedric/Gloria - HY34 (1999-2001) VQ30DD
Nissan - Cedric/Gloria - HY34 (2001-2004) VQ30DD
Nissan - Cedric/Gloria - HY34 (1999-2001) VQ30DET
Nissan - Cedric/Gloria - HY34 (2001-2004) VQ30DET
Nissan - Cedric/Gloria - MY34 (1999-2001) VQ25DD
Nissan - Cedric/Gloria - MY34 (2001-2004) VQ25DD
