Recaro Japan - Base Frame Seat Rail Standard Right - Suzuki Jimny JB64W (2018-2021)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Right
Type: New-type frame. Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position).
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.) Seating position: 6mm higher than OEM seat.(A case of New LX-F using middle position of 3 position baseframe. The height can be adjustable. 19mm higher than OEM seat or 7mm lower than OEM seat.) Seat offset is same as OEM seat. The length of slider is 20mm shorter than OEM slider.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Attached a side airbag canceller. Optional equipment car is unconfirmed.
- SP-#,Racer needs SP-G offset adapter (PN 1600094J). RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-JS
- AM19 SPORT-JS
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Armrest: 2 or 3
DISCLAIMER:

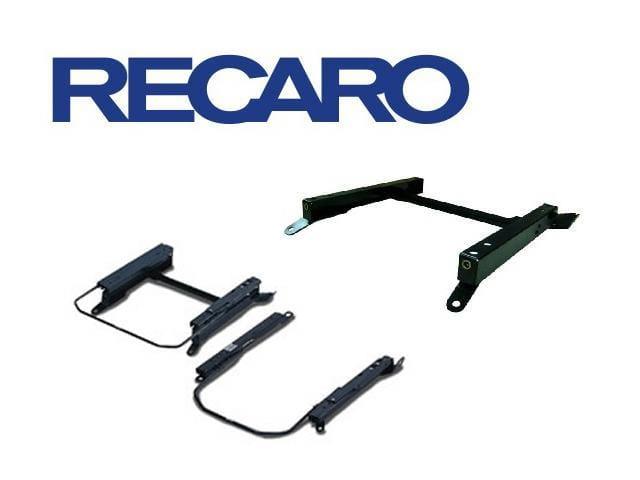

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Right
Type: New-type frame. Can be adjusted in three height settings (in some car makes, the legs of the slide rail must be cut, depending on the installation position).
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Function of seat belt reminder loses on passenger seat. (Warning lights of the seat belt will not light.) Seating position: 6mm higher than OEM seat.(A case of New LX-F using middle position of 3 position baseframe. The height can be adjustable. 19mm higher than OEM seat or 7mm lower than OEM seat.) Seat offset is same as OEM seat. The length of slider is 20mm shorter than OEM slider.
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Attached a side airbag canceller. Optional equipment car is unconfirmed.
- SP-#,Racer needs SP-G offset adapter (PN 1600094J). RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX-F (Based on IS-05 structure)
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-JS
- AM19 SPORT-JS
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Armrest: 2 or 3
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Suzuki - Jimny - JB64W (2018-2021) R06A
Suzuki - Jimny - JB64W (2018-2021) R06A
