Recaro Japan - Base Frame Seat Rail Standard Right - Suzuki Swift Sport ZC33S (2017-2020)
Contact Us
Share this product on Socials
Regular price
$227.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Right
Type: New-type frame.
PRODUCT NOTES:
- The side airbag function with a built-in genuine seat will be lost. Vehicles equipped with side airbags need to turn off the airbag warning light. When the RECARO seat is attached to the passenger seat, the occupant detection sensor will not function and the warning light on the seat belt will not light up. The seating position is about 18mm higher than the lowermost position of the genuine seat height adjustment function at the standard position with the attached 20mm (6 + 7 + 7mm) spacer. (When using New LX-F). The steering wheel offset is from the steering wheel center, and RECARO is about 7mm closer to the door side (3mm door side than the genuine seat). The amount of seat slide is reduced by about 20 mm compared to the genuine product.
The console and seat cushion interfere with each other in the front position of the seat slide. SPORT and Orthopedo are about 5mm. SP- # and racer require SP-G offset adapter set (6600 yen). Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold side adapter for RMS. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter. Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold side adapter for RMS. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- CS / CR / CG / COMFOMED: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- CSE: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- CT: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- C-Classic: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Rally Special / First Generation SR / SR-2 early model
- Late model A-8
- Early model A-8
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
- Armrest: 2 or 3
DISCLAIMER:

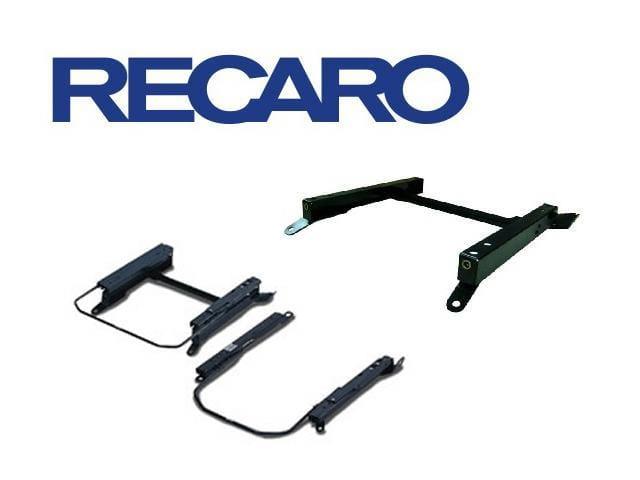

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Right
Type: New-type frame.
PRODUCT NOTES:
- The side airbag function with a built-in genuine seat will be lost. Vehicles equipped with side airbags need to turn off the airbag warning light. When the RECARO seat is attached to the passenger seat, the occupant detection sensor will not function and the warning light on the seat belt will not light up. The seating position is about 18mm higher than the lowermost position of the genuine seat height adjustment function at the standard position with the attached 20mm (6 + 7 + 7mm) spacer. (When using New LX-F). The steering wheel offset is from the steering wheel center, and RECARO is about 7mm closer to the door side (3mm door side than the genuine seat). The amount of seat slide is reduced by about 20 mm compared to the genuine product.
The console and seat cushion interfere with each other in the front position of the seat slide. SPORT and Orthopedo are about 5mm. SP- # and racer require SP-G offset adapter set (6600 yen
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- CS / CR / CG / COMFOMED: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- CSE: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- CT: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- C-Classic: Remove the side cover (recliner cover), to avoid (alleviate) interference with the car.
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SR-2 late model / SR-3 / SR-4 / SR-5
- Rally Special / First Generation SR / SR-2 early model
- Late model A-8
- Early model A-8
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
- Armrest: 2 or 3
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Suzuki - Swift Sport - ZC33S (2017-2018) K14C
Suzuki - Swift Sport - ZC33S (2017-2020) K14C
Suzuki - Swift Sport - ZC33S (2017-2018) K14C
Suzuki - Swift Sport - ZC33S (2017-2020) K14C
