Recaro Japan - Base Frame Seat Rail Standard Right - Toyota Prius PHV ZVW52 (2017-2018)
Contact Us
Share this product on Socials
Regular price
$246.00
Description
SPECIFICATIONS
Manufacturer: Recaro Japan
Position: Right
DISCLAIMER:

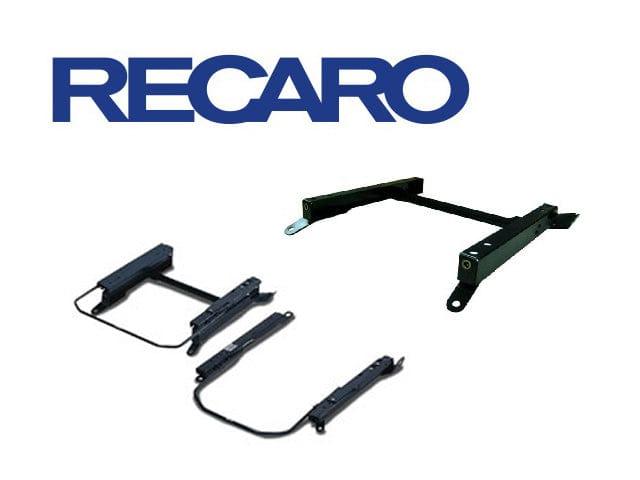

Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Manufacturer: Recaro Japan
Position: Right
Brand: Recaro
Product: Base Frame Seat Rail Sports Frame Type Right - ZYX10 NGX50 NGX10 AXVH70 Corolla Sport E21# NRE210 ZWE211 ZRE212 ZWE214 ZVW5# Yaris GXPA16 KSP210 MXPA1# MXPH1#
Part Num: 2080.024.2
SPECIFICATIONS:
Made to Order: Leadtime 3 ~ 4 Weeks
Type: Sports frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller. Seating position: Height is 17mm higer than OEM lowest position.(A case of New LX-F using adapter frame. If you remove adapter frame, height is 21mm lower than OEM lowest seat.) Handle offset is 13mm to door side. The length of slider is 40 mm shorter than OEM slider. Function of seat belt reminder loses on passenger seat.(Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Sports frame type.（with the adapter frame. ) Attached a side airbag canceller. Optional equipment car is unconfirmed.
- On passenger seat (Japanese cars left side), there is interference between seat side cushion and center console at most front position of slider. SPORT,STYLE,TREND JJ,JC,DC=3-10mm. SR-6,7,11=5mm.RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
Product: Base Frame Seat Rail Sports Frame Type Right - ZYX10 NGX50 NGX10 AXVH70 Corolla Sport E21# NRE210 ZWE211 ZRE212 ZWE214 ZVW5# Yaris GXPA16 KSP210 MXPA1# MXPH1#
Part Num: 2080.024.2
SPECIFICATIONS:
Made to Order: Leadtime 3 ~ 4 Weeks
Type: Sports frame. One-position type.
PRODUCT NOTES:
- Function of side airbag loses. Need to cancel airbag warning indicator. Please use airbag canceller. Seating position: Height is 17mm higer than OEM lowest position.(A case of New LX-F using adapter frame. If you remove adapter frame, height is 21mm lower than OEM lowest seat.) Handle offset is 13mm to door side. The length of slider is 40 mm shorter than OEM slider. Function of seat belt reminder loses on passenger seat.(Warning lights of the seat belt will not light.)
- Cautionary note: After install RECARO seat, side airbag is not available.Only the seats which are mentioned in the list are allowed to install. This baseframe is designed for Japanese market car. Sports frame type.（with the adapter frame. ) Attached a side airbag canceller. Optional equipment car is unconfirmed.
- On passenger seat (Japanese cars left side), there is interference between seat side cushion and center console at most front position of slider. SPORT,STYLE,TREND JJ,JC,DC=3-10mm. SR-6,7,11=5mm.RMS:RMS can be adjusted seat position by RMS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.RCS:RCS can be adjusted seat position by RCS side adapter.(Height:front and rear, Offset: 0/5/10mm). Interference can be reduced by adjustment.
COMPATIBILITY NOTES:
Fits the following seats:
- LX / LX-# / LX-VS / LX-VF / ERGOMED / ERGOMED C/ ERGOMED D/ ERGOMED E / ERGOMED LD / ERGOMED MV (Based on IS-84 structure)
- LX-F (Based on IS-05 structure)
- LS / LS-# / LT-#
- RMS2600A / 2700G: A separate side adapter must be provided.
- New Orthopead (with RECARO Vent)
- RCS: A separate side adapter must be provided.
- SP-G / SP-A: A separate side adapter must be provided.
- SP-GN / SP-AN: A separate side adapter must be provided.
- RACER SP-G/A: A separate side adapter must be provided.
- AM19 TREND-J AM19 TREND-JJ AM19 TREND-JC
- AM19 STYLE-J AM19 STYLE-JJ AM19 STYLE-JC
- AM19 SPORT-J AM19 SPORT-JJ AM19 SPORT-JC
- AM19 TREND-JS
- AM19 STYLE-JS
- AM19 SPORT-JS
- AM19 TREND-D AM19 TREND-DC
- AM19 STYLE-D AM19 STYLE-DC
- AM19 SPORT-D AM19 SPORT-DC MAGNIFICA CL222HV
- TS-# / RS-#: A separate side adapter must be provided.
- SP-X
- SR-6 / SR-7 / SR-7F / SR-11
- Sportster / Cross Sportster
DISCLAIMER:
Product picture is generic. Actual Seat rail shape may differ. Seat rails are sold per piece. Please ensure to choose the right position (Right/Left).
Car Fitment may change depending on the year, ABS equipped and trim. Please contact us if you are unsure.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Fitting information
This part fits:
Toyota - Prius PHV - ZVW52 (2017-2018) 2ZR-FXE
Toyota - Prius PHV - ZVW52 (2017-2018) 2ZR-FXE
