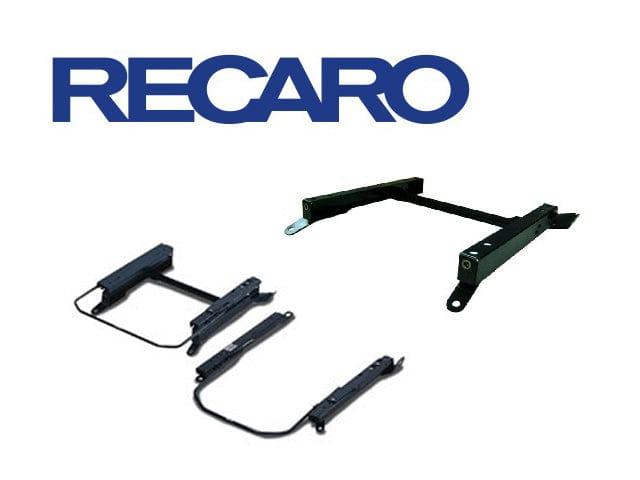

Recaro Japan - Base Frame Seat Rail Standard - Volkswagen - Sirocco 3 13(SCI)
Contact Us
Share this product on Socials
Regular price
$265.00
Description
Specifications:
Manufacturer: Recaro Japan
Reference Number: 2011.028.1/ 2011.028.2
Position:
New structure frame. One position type.
Notes and Remarks:
The side airbag function with a built-in genuine seat will be lost. Airbag warning light needs to be turned off. Approximately 10mm lower than the bottom edge of the genuine sheet (when using ST-JJ). Approximately 20mm from the steering center to the door side (RECARO is the door side) = There are individual differences, but it is at the same level as the genuine seat. The amount of forward slide is reduced by about 35 mm compared to the genuine product.
(Caution) It can only be attached to the seats listed in the matching information below. Includes side airbag canceller.
Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RMS side adapter. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter.
Seat Fitting:
This seat rail fits:
LX / LX- # / LX-VS / LX-VF / LX-VL / Ergomed / Ergomed C / Ergomed D / Ergomed E / Ergomed LD / Ergomed MV (IS-84 base)
LX-F (based on IS-05)
LS / LS- # / LT- #
RMS2600A / 2700G You need to prepare the side adapter separately.
New Orthopedo (with Recaro Vent)
RCS You need to prepare the side adapter separately.
SR-2 late model / SR-3 / SR-4 / SR-5 / SR-VF / SR-IMPACT / SR-IMPACT Pro
Rally Special / First SR / SR-2 Early Type
Late model A-8
Early model A-8
SP-A / SP-G / SP-G2 / SP-G3 / SP-GT / SP-GT2 You need to prepare the side adapter separately.
SP-AN / SP-GN / SP-GN 2 You need to prepare the side adapter separately.
RACER SP-G / A You need to prepare the side adapter separately.
AM19 TREND-J
AM19 TREND-JJ
AM19 TREND-JC
AM19 STYLE-J
AM19 STYLE-JJ
AM19 STYLE-JC
AM19 SPORT-J
AM19 SPORT-JJ
AM19 SPORT-JC
AM19 TREND-JS
AM19 STYLE-JS
AM19 SPORT-JS
AM19 TREND-D
AM19 TREND-DC
AM19 STYLE-D
AM19 STYLE-DC
AM19 SPORT-D
AM19
SPORT-DC
MAGNIFICA CL222HV
TS-G / RS-G / TS-W / RS-W You need to prepare the side adapter separately.
SP-X
SR-6 / SR-7 / SR-7F / SR-11
Sportster / Cross Sportster
Manufacturer: Recaro Japan
Reference Number: 2011.028.1/ 2011.028.2
Position:
New structure frame. One position type.
Notes and Remarks:
The side airbag function with a built-in genuine seat will be lost. Airbag warning light needs to be turned off. Approximately 10mm lower than the bottom edge of the genuine sheet (when using ST-JJ). Approximately 20mm from the steering center to the door side (RECARO is the door side) = There are individual differences, but it is at the same level as the genuine seat. The amount of forward slide is reduced by about 35 mm compared to the genuine product.
(Caution) It can only be attached to the seats listed in the matching information below. Includes side airbag canceller.
Adjust the RMS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RMS side adapter. Also, if there is interference with the interior, it can be alleviated by adjustment. Adjust the RCS to the optimum position (front-back height, left-right offset 0/5/10 mm) with the separately sold RCS side adapter.
Seat Fitting:
This seat rail fits:
LX / LX- # / LX-VS / LX-VF / LX-VL / Ergomed / Ergomed C / Ergomed D / Ergomed E / Ergomed LD / Ergomed MV (IS-84 base)
LX-F (based on IS-05)
LS / LS- # / LT- #
RMS2600A / 2700G You need to prepare the side adapter separately.
New Orthopedo (with Recaro Vent)
RCS You need to prepare the side adapter separately.
SR-2 late model / SR-3 / SR-4 / SR-5 / SR-VF / SR-IMPACT / SR-IMPACT Pro
Rally Special / First SR / SR-2 Early Type
Late model A-8
Early model A-8
SP-A / SP-G / SP-G2 / SP-G3 / SP-GT / SP-GT2 You need to prepare the side adapter separately.
SP-AN / SP-GN / SP-GN 2 You need to prepare the side adapter separately.
RACER SP-G / A You need to prepare the side adapter separately.
AM19 TREND-J
AM19 TREND-JJ
AM19 TREND-JC
AM19 STYLE-J
AM19 STYLE-JJ
AM19 STYLE-JC
AM19 SPORT-J
AM19 SPORT-JJ
AM19 SPORT-JC
AM19 TREND-JS
AM19 STYLE-JS
AM19 SPORT-JS
AM19 TREND-D
AM19 TREND-DC
AM19 STYLE-D
AM19 STYLE-DC
AM19 SPORT-D
AM19
SPORT-DC
MAGNIFICA CL222HV
TS-G / RS-G / TS-W / RS-W You need to prepare the side adapter separately.
SP-X
SR-6 / SR-7 / SR-7F / SR-11
Sportster / Cross Sportster
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part fits:
Sirocco 3 | 13 | TC | CAXA | I4
Sirocco 3 | 13 | TC | CAXA | I4
