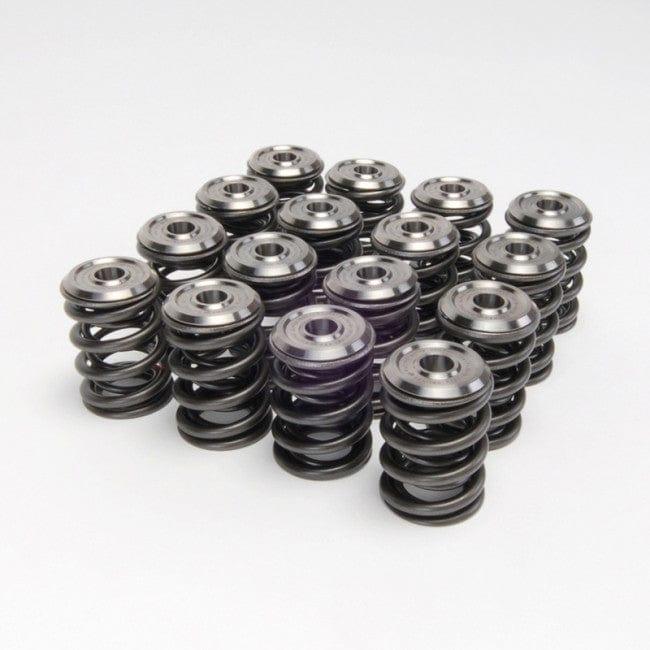

{"id":753119133793,"title":"Skunk 2 - Alpha Valve Springs and Ti Valves Springs,Retainers Kit - Honda - H22A","handle":"skunk-2-alpha-valve-springs-and-ti-valves-springs-retainers-kit-honda-h22a-344-05-1360-344-05-1360","description":"\u003cstrong\u003eSpecifications:\u003c\/strong\u003e\u003cbr\u003eManufacturer: Skunk 2\u003cbr\u003eReference Number: 344-05-1360\u003cbr\u003eSpecs duration (Lift in mm): \u003cbr\u003eSeat Pressure: 50 lbs at 1.400”\u003cbr\u003e\nOpen Pressure: 205 lbs at 0.900”\u003cbr\u003e\nCoil Bind: 0.880”\u003cbr\u003e\u003cbr\u003eManufacturer Brief:\u003cbr\u003eAlpha Valve Springs\nManufactured exclusively from super-clean, chrome-silicone wire milled in Japan, Skunk2’s Alpha Valve Springs for Honda’s F, H-series VTEC engines are a product of the company’s years of racing and engine building experiences. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.\n \n \nAlpha Retainers\nAlpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Similar to Skunk2’s already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.\n \n \nAlpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that’s been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eAlpha Valve Springs\nManufactured exclusively from super-clean, chrome-silicone wire milled in Japan, Skunk2’s Alpha Valve Springs for Honda’s F, H-series VTEC engines are a product of the company’s years of racing and engine building experiences. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.\n \n \nAlpha Retainers\nAlpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Similar to Skunk2’s already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.\n \n \nAlpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that’s been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.\u003c!--split--\u003e\u003cstrong\u003eTaxes:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eSingapore and Malaysia: \u003c\/strong\u003eAll import taxes are included in our pricing.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eEuropean Tva, Iva: \u003c\/strong\u003eTaxes will be calculated during checkout at our company import rate. No additional charges will be added by your local authority.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eUSA:\u003c\/strong\u003e If this product is shipped from our US warehouse then taxes are included. Otherwise, please refer to the rest of the world paragragh.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eRest of the World:\u003c\/strong\u003e Other countries may have to pay their local import tax depending on your country's regulations.\u003chr\u003e\u003cstrong\u003eShipping: \u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eThis product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.\u003cbr\u003eEvery Monday our team keeps you in the loop by sending out an \"estimated time of arrival\" email.\u003c!--split--\u003eThis part fits:\u003cbr\u003e\u003cbr\u003eH22A | 2200cc | DOHC | 16v | NA | I4\u003c!--split--\u003e","published_at":"2018-05-09T17:27:05+08:00","created_at":"2018-05-09T17:27:06+08:00","vendor":"Skunk 2","type":"Build Your Head","tags":["build-your-head","h22a-2200cc-dohc-16v-na-i4","honda","retainers-kit","skunk-2","us1","valves-springs","ws17"],"price":46407,"price_min":46407,"price_max":46407,"available":true,"price_varies":false,"compare_at_price":49900,"compare_at_price_min":49900,"compare_at_price_max":49900,"compare_at_price_varies":false,"variants":[{"id":8162034942049,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"344-05-1360","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Skunk 2 - Alpha Valve Springs and Ti Valves Springs,Retainers Kit - Honda - H22A","public_title":null,"options":["Default Title"],"price":46407,"weight":5089,"compare_at_price":49900,"inventory_quantity":13,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/rzcrewgarage.com\/cdn\/shop\/products\/344-05-1300_50228bb9-c4ba-4fff-80a3-329bc055d209.jpg?v=1710155532"],"featured_image":"\/\/rzcrewgarage.com\/cdn\/shop\/products\/344-05-1300_50228bb9-c4ba-4fff-80a3-329bc055d209.jpg?v=1710155532","options":["Title"],"media":[{"alt":"Skunk 2 - Alpha Valve Springs and Ti Valves Springs,Retainers Kit - Honda - H22A - 344-05-1360 - 344-05-1360","id":24741047337142,"position":1,"preview_image":{"aspect_ratio":1.0,"height":650,"width":650,"src":"\/\/rzcrewgarage.com\/cdn\/shop\/products\/344-05-1300_50228bb9-c4ba-4fff-80a3-329bc055d209.jpg?v=1710155532"},"aspect_ratio":1.0,"height":650,"media_type":"image","src":"\/\/rzcrewgarage.com\/cdn\/shop\/products\/344-05-1300_50228bb9-c4ba-4fff-80a3-329bc055d209.jpg?v=1710155532","width":650}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cstrong\u003eSpecifications:\u003c\/strong\u003e\u003cbr\u003eManufacturer: Skunk 2\u003cbr\u003eReference Number: 344-05-1360\u003cbr\u003eSpecs duration (Lift in mm): \u003cbr\u003eSeat Pressure: 50 lbs at 1.400”\u003cbr\u003e\nOpen Pressure: 205 lbs at 0.900”\u003cbr\u003e\nCoil Bind: 0.880”\u003cbr\u003e\u003cbr\u003eManufacturer Brief:\u003cbr\u003eAlpha Valve Springs\nManufactured exclusively from super-clean, chrome-silicone wire milled in Japan, Skunk2’s Alpha Valve Springs for Honda’s F, H-series VTEC engines are a product of the company’s years of racing and engine building experiences. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.\n \n \nAlpha Retainers\nAlpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Similar to Skunk2’s already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.\n \n \nAlpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that’s been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.\u003cbr\u003e\u003cbr\u003e\u003cbr\u003e\u003cbr\u003eAlpha Valve Springs\nManufactured exclusively from super-clean, chrome-silicone wire milled in Japan, Skunk2’s Alpha Valve Springs for Honda’s F, H-series VTEC engines are a product of the company’s years of racing and engine building experiences. By using inner and outer springs mated together through a slight interference fit and with differing frequencies, Alpha Valve Springs are able to prevent valve float and maintain valvetrain stability at engine speeds in excess of 10,000 rpm.\n \n \nAlpha Retainers\nAlpha Titanium Retainers are designed to significantly reduce valvetrain mass, resulting in more horsepower and improved valvetrain stability. Similar to Skunk2’s already popular Pro Series Titanium Retainers, Alpha Titanium Retainers feature radius-cut edges for additional rocker arm clearance and reduced weight, strategically positioned lightening grooves, and reduced overall heights for better valve seal clearance and even further weight reduction.\n \n \nAlpha Titanium Retainers are manufactured using the latest 3D CAD (Computer Aided Design) and FEA (Finite Element Analysis) to ensure that each is optimized for strength as well as for reduced weight. Skunk2 engineers then test and prove their designs on the engine dyno as well as the race track. Once approved for manufacturing, only medical-grade titanium that’s been ultrasonically inspected and certified is used. Following CNC machining, each retainer is then individually inspected to ensure proper hole diameter, taper, and that each are free from machining defects to ensure proper installed valve spring heights and pressures. Finally, each retainer is serialized for your protection, including valuable information, like material batch specifics as well as production and inspection dates.\u003c!--split--\u003e\u003cstrong\u003eTaxes:\u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eSingapore and Malaysia: \u003c\/strong\u003eAll import taxes are included in our pricing.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eEuropean Tva, Iva: \u003c\/strong\u003eTaxes will be calculated during checkout at our company import rate. No additional charges will be added by your local authority.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eUSA:\u003c\/strong\u003e If this product is shipped from our US warehouse then taxes are included. Otherwise, please refer to the rest of the world paragragh.\u003cbr\u003e\u003cbr\u003e\u003cstrong\u003eRest of the World:\u003c\/strong\u003e Other countries may have to pay their local import tax depending on your country's regulations.\u003chr\u003e\u003cstrong\u003eShipping: \u003c\/strong\u003e\u003cbr\u003e\u003cbr\u003eThis product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.\u003cbr\u003eEvery Monday our team keeps you in the loop by sending out an \"estimated time of arrival\" email.\u003c!--split--\u003eThis part fits:\u003cbr\u003e\u003cbr\u003eH22A | 2200cc | DOHC | 16v | NA | I4\u003c!--split--\u003e"}
