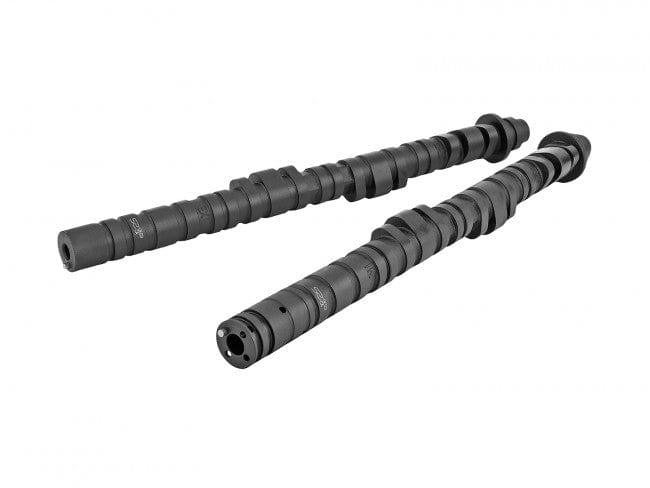

Skunk 2 - Tuner Series stage 2 Camshaft - Honda - K20A/A2/Z3 K24A2
Contact Us
Share this product on Socials
Regular price
$975.60
Regular price
-0%
$979.00
Sale price
$975.60
Description
Specifications:
Manufacturer: Skunk 2
Reference Number: 305-05-0225
Skunk2 Racing's "Tuner Stage 2" Camshafts are designed as a performance upgrade to lightly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform HOT factory cam swaps (mixing OEM cams) and Skunk2 Tuner Stage 1 camshafts from idle to redline with no loss in drivability. A great match for vehicles with intake manifold swaps, light cylinder head work, small changes in compression, intake, header, and exhaust, or motors that have been turbo/supercharged and running up to 14 psi of boost. Tuner Stage 2's require a simple valve spring and retainer upgrade due to the additional lift, duration, and increased RPM range. Ideal for hot street cars and road race cars.
Our Tuner Stage 2's incorporates Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing an unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!
Required - Alpha Valve Springs (Upgrade to Pro Valve Springs Under Boost), Alpha Titanium Retainers, and Engine Management.
Camshafts Specifications
Intake - Lift: 13.58mm/ Duration 272°
Exhaust - Lift: 12.59mm/ Duration 276°
Intake Centerline - Variable
Exhaust Centerline - 107°
Valve Clearance (Intake / Exhaust) - .008” / .010”
RPM Range: 1,500 - 8,800
HP Gains: 22-25
Torque Gains: 18-20
i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
VTEC Crossover - 5,500 to 6,500 RPM
Manufacturer: Skunk 2
Reference Number: 305-05-0225
Skunk2 Racing's "Tuner Stage 2" Camshafts are designed as a performance upgrade to lightly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform HOT factory cam swaps (mixing OEM cams) and Skunk2 Tuner Stage 1 camshafts from idle to redline with no loss in drivability. A great match for vehicles with intake manifold swaps, light cylinder head work, small changes in compression, intake, header, and exhaust, or motors that have been turbo/supercharged and running up to 14 psi of boost. Tuner Stage 2's require a simple valve spring and retainer upgrade due to the additional lift, duration, and increased RPM range. Ideal for hot street cars and road race cars.
Our Tuner Stage 2's incorporates Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing an unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!
Required - Alpha Valve Springs (Upgrade to Pro Valve Springs Under Boost), Alpha Titanium Retainers, and Engine Management.
Camshafts Specifications
Intake - Lift: 13.58mm/ Duration 272°
Exhaust - Lift: 12.59mm/ Duration 276°
Intake Centerline - Variable
Exhaust Centerline - 107°
Valve Clearance (Intake / Exhaust) - .008” / .010”
RPM Range: 1,500 - 8,800
HP Gains: 22-25
Torque Gains: 18-20
i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
VTEC Crossover - 5,500 to 6,500 RPM
