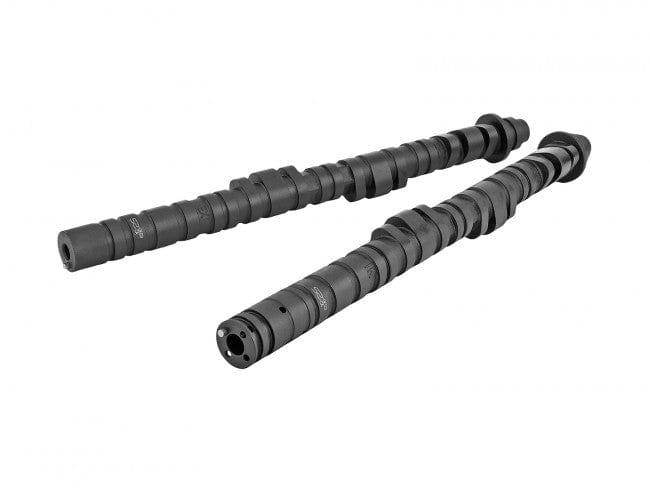

Skunk 2 - Tuner Series stage 3 Camshaft - Honda - K20A/A2/Z3 K24A2
Contact Us
Share this product on Socials
Regular price
$975.60
Regular price
-0%
$979.00
Sale price
$975.60
Description
Specifications:
Manufacturer: Skunk 2
Reference Number: 305-05-0230
kunk2 Racing's "Tuner Stage 3" Camshafts are designed as a performance upgrade to mildly to highly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform all other Skunk2 Tuner offerings from idle to redline with no loss in drivability. A great match for vehicles with aftermarket intake manifolds, light to heavy cylinder head work, large changes in compression, intake, big-tube header, and large exhaust. Tuner Stage 3's require a simple valve spring and retainer upgrade due to the additional lift, duration, and increased RPM range. Considered the go-to cam for cracking that 300hp on pump gas for years... ideal for street cars that aren't street cars and entry-level drag race cars.
Our Tuner Stage 3's incorporates Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing an unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!
Required - Alpha Valve Springs, Alpha Titanium Retainers, and Engine Management.Required - Alpha Valve Springs, Alpha Titanium Retainers, and Engine Management.
Camshafts Specifications
Intake - Lift: 14mm/ Duration 278°
Exhaust - Lift: 13mm/ Duration 282°
Intake Centerline - Variable
Exhaust Centerline - 107°
Valve Clearance (Intake / Exhaust) - .008” / .010”
RPM Range: 1,500 - 9,400
HP Gains: 30-33
Torque Gains: 24-26
i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
VTEC Crossover - 5,500 to 6,500 RPM
Manufacturer: Skunk 2
Reference Number: 305-05-0230
kunk2 Racing's "Tuner Stage 3" Camshafts are designed as a performance upgrade to mildly to highly modified vehicles running the 3 Lobe VTEC K20A/ K20A2/ K20Z1/ K20Z3 and K24A2 engines or cylinder heads. These camshafts will outperform all other Skunk2 Tuner offerings from idle to redline with no loss in drivability. A great match for vehicles with aftermarket intake manifolds, light to heavy cylinder head work, large changes in compression, intake, big-tube header, and large exhaust. Tuner Stage 3's require a simple valve spring and retainer upgrade due to the additional lift, duration, and increased RPM range. Considered the go-to cam for cracking that 300hp on pump gas for years... ideal for street cars that aren't street cars and entry-level drag race cars.
Our Tuner Stage 3's incorporates Skunk2 Racing's cutting-edge Fast Ramp and AMAX features, which are responsible for increasing overall performance, producing an unmatched response from idle to redline. You can expect optimized mid-range and top-end horsepower/torque with peak power moved up the RPM band, producing a seamless VTEC crossover!
Required - Alpha Valve Springs, Alpha Titanium Retainers, and Engine Management.Required - Alpha Valve Springs, Alpha Titanium Retainers, and Engine Management.
Camshafts Specifications
Intake - Lift: 14mm/ Duration 278°
Exhaust - Lift: 13mm/ Duration 282°
Intake Centerline - Variable
Exhaust Centerline - 107°
Valve Clearance (Intake / Exhaust) - .008” / .010”
RPM Range: 1,500 - 9,400
HP Gains: 30-33
Torque Gains: 24-26
i-VTEC Settings - Small Lobe 35° Advance/ Big Lobe 40° to 30° Advance
VTEC Crossover - 5,500 to 6,500 RPM
