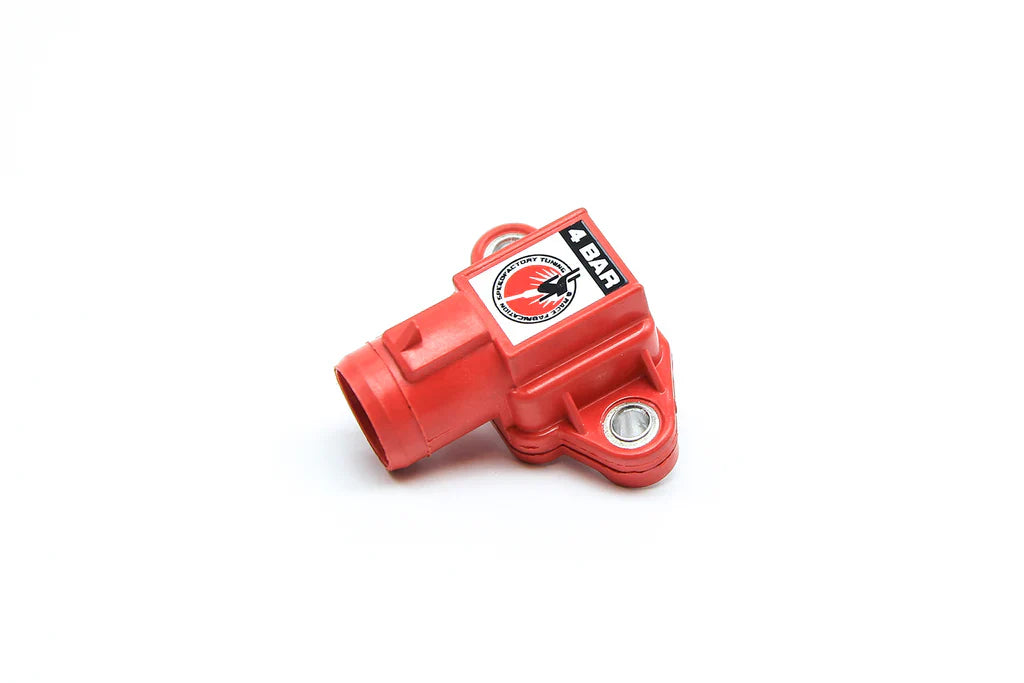

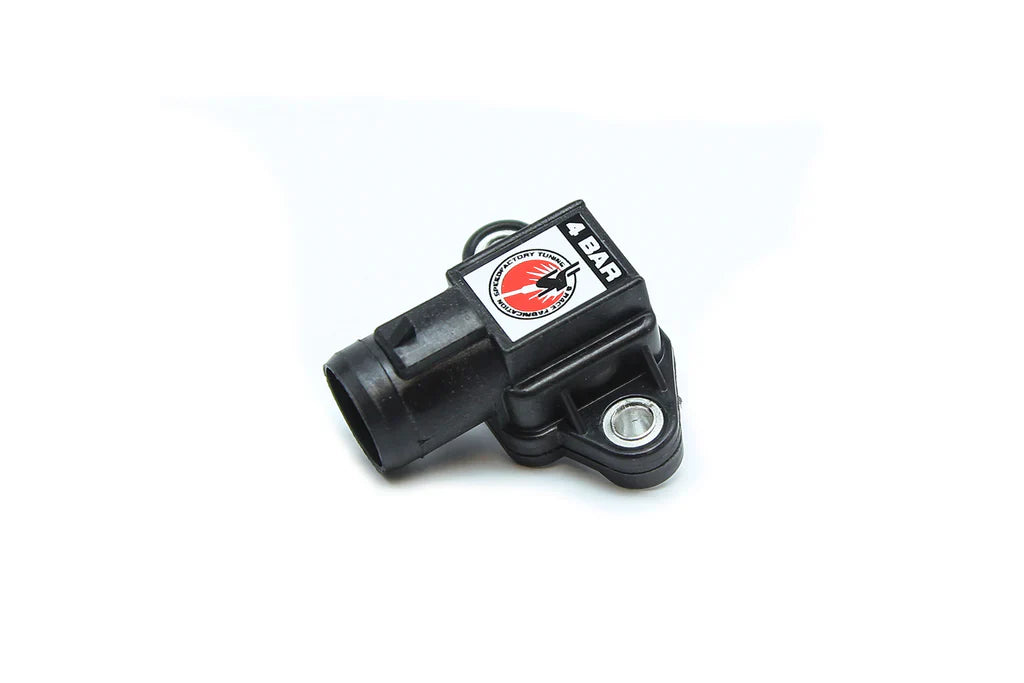

SpeedFactory y MAP Sensor 4 BAR B,D,F,H Series - Honda - Civic B, D, H, F Series - SF-01-015
SpeedFactory y MAP Sensor 4 BAR B,D,F,H Series - Honda - Civic B, D, H, F Series - SF-01-015
SpeedFactory y MAP Sensor 4 BAR B,D,F,H Series - Honda - Civic B, D, H, F Series - SF-01-015
SpeedFactory y MAP Sensor 4 BAR B,D,F,H Series - Honda - Civic B, D, H, F Series - SF-01-015

SpeedFactory y MAP Sensor 4 BAR B,D,F,H Series - Honda - Civic B, D, H, F Series

Brand: SpeedFactory
SKU: SF-01-015
Availability: Usually ships from the manufacturer within 20 to 30 days.
Shipping time is additional. Choose your option in the cart page.
(0)

Contact Us

Share this product on Socials

$146.00
Colour

Description

Specifications:
Manufacturer: SpeedFactory
Reference Number: SF-01-015
Intake Type: Throttle Bodies

SpeedFactory 4 Bar MAP (Manifold Absolute Pressure) sensors use state of the art bipolar op amp circuitry with thin film resistor networks built into each micro chip.

Pressure changes are calculated on a true linear 0-5 volt scale via a specially designed silicon pressure sensor that also compensates for temperature changes. The unique ability to compensate for temperature changes allows our MAP sensor to remain a minimum of 99% accurate from 32 degrees F to 180 degrees F through out its range of scale. With the true linear pressure vs. voltage scale there is never a need to re-tune at different altitudes as with other sensors.

Key Features: * 40 to 260 degrees Fahrenheit temperature operating range
* Able to respond from 10% of the pressure scale to 90% of the pressure scale in .001 seconds (the fastest response time of any MAP sensor on the market).
* Automatic temperature compensation.
* True linear scaling for perfect drivability at all boost and vacuum levels.
* Compatible with all aftermarket engine management systems.
* Minimum of 99% accurate over full scale range under all conditions including temperature, altitude, and humidity changes.
* Allows smoother engine operation, higher boost levels, and better drivability than competitors turbo MAP sensors.
* Direct plug and play for an easy install and an OEM look. Dimensionally identical to the stock MAP sensor.
* Each sensor is hand assembled, pressure, and function checked in the USA for unparalleled quality control prior to shipping

NOTE: Requires proper sensor calibration with a programmable engine management system.

Hondata & Neptune: Scalar: 838 Offset: 31

Fitments: B/D/F/H Series Engines
94-01 Acura Integra
90-93 Acura Integra (will require 94-01 Integra Throttle Body)
97-99 Acura CL All Models
01-03 Acura CL V6 (premium only)
99-03 Acura TL All Models
88-00 Honda Civic All Models
92-01 Honda Prelude All Models
00-05 Honda S2000
94-02 Honda Accord All 4 cyl Models
93-97 Honda Del Sol All Models
97-01 Honda CR-V All Models
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.


This product will be shipped from our US Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part fits:

Civic | EF9 | 1989-1991 | NA | B16A | I4
Civic | EE9 | 1989-1991 | NA | B16A | I4
CR-X | EF8 | 1989-1992 | NA | B16A | I4
CR-X | EE8 | 1989-1992 | NA | B16A | I4
Civic | EG6 | 1992-1995 | NA | B16A | I4
Civic Ferio | EG9 | 1992-1995 | NA | B16A | I4
Civic | EK4 | 1995-2000 | NA | B16A | I4
Civic Type R | EK9 | 1997-2000 | NA | B16B | I4
Civic Ferio | EK4 | 1995-2000 | NA | B16A | I4
CR-X DELSOL | EG2 | 1992-1997 | NA | B16A | I4
Integra type R | DB8 | 1996-2001 | NA | B18C | I4
Integra type R | DC2 Zenki | 1996-1998 | NA | B18C | I4
Integra type R | DC2 Kouki | 1998-2001 | NA | B18C | I4
Civic | EF3 | 1988-1991 | NA | ZC DOHC | I4
Civic | EF5 | 1988-1991 | NA | ZC DOHC | I4
Civic | ED7 | 1988-1991 | NA | D16A9 | I4
CR-X | EF7 | 1988-1992 | NA | ZC DOHC | I4
CR-X | ED9 | 1988-1992 | NA | D16A9 | I4
Civic | EG4 | 1992-1995 | NA | D15B | I4
Civic | EG5 | 1992-1995 | NA | D16Z6 | I4
Civic Ferio | EG8 | 1992-1995 | NA | D15B | I4
Civic | EK3 | 1995-2000 | NA | D15B | I4
Civic Ferio | EK3 | 1995-2000 | NA | D15B | I4
Civic | EU3 | 2000-2002 | NA | D17A | I4
Civic | EU4 | 2000-2002 | NA | D17A | I4
Civic Coupe | EJ1 | 1991-1995 | NA | D16A | I4
Civic Coupe | EJ7 | 1996-2000 | NA | D16A | I4
Civic Ferio | ES3 | 2000-2003 | NA | D17A | I4
Civic Ferio | ET2 | 2000-2003 | NA | D17A | I4
CR-X DELSOL | EJ4 | 1995-1997 | NA | D16A | I4
CR-X DELSOL | EG1 | 1992-1997 | NA | D15B | I4
Accord | CD6 | 1994-1997 | NA | H22A | I4
Accord | CL3 | 1997-2001 | NA | H22A | I4
Accord Torneo Euro R | CL1 | 2000-2002 | NA | H22A | I4
Accord Euro R | CD8R | 1994-1997 | NA | H22A | I4
Accord Wagon | CF2 | 1997-2001 | NA | H22A | I4
Accord Wagon | CH9 | 1999-2002 | NA | H22A | I4
Accord Wagon | CL2 | 2000-2002 | NA | H22A | I4
Prelude | BB1 | 1991-1996 | NA | H22A | I4
Prelude | BB4 | 1991-1996 | NA | H22A | I4
Prelude | BB6 | 1996-2001 | NA | H22A | I4
Prelude | BB8 | 1996-2001 | NA | H22A | I4
Accord | CD4 | 1994-1997 | NA | F20B | I4
Accord | CD5 | 1994-1997 | NA | F22B | I4
Accord | CF5 | 1997-2001 | NA | F20B | I4
Accord Torneo | CF3 | 1997-2001 | NA | F18B | I4
Accord Torneo | CF4 | 1997-2001 | NA | F20B | I4
Accord Torneo | CF5 | 1997-2001 | NA | F20B | I4
Accord Torneo | CL3 | 1997-2001 | NA | F20B | I4
Accord Coupe | CB6 | 1990-1994 | NA | F20A | I4
Accord Coupe | CB7 | 1990-1994 | NA | F22A | I4
Accord Euro R | CD7 | 1994-1997 | NA | F22B | I4
Accord Wagon | CB9 | 1991-1994 | NA | F22A | I4
Accord Wagon | CE1 | 1994-1997 | NA | F22B | I4
Accord Wagon | CF6 | 1997-2001 | NA | F23A | I4
Accord Wagon | CF7 | 1997-2001 | NA | F23A | I4
Prelude | BB5 | 1996-2001 | NA | F22B | I4
Prelude | BB7 | 1996-2001 | NA | F22B | I4
