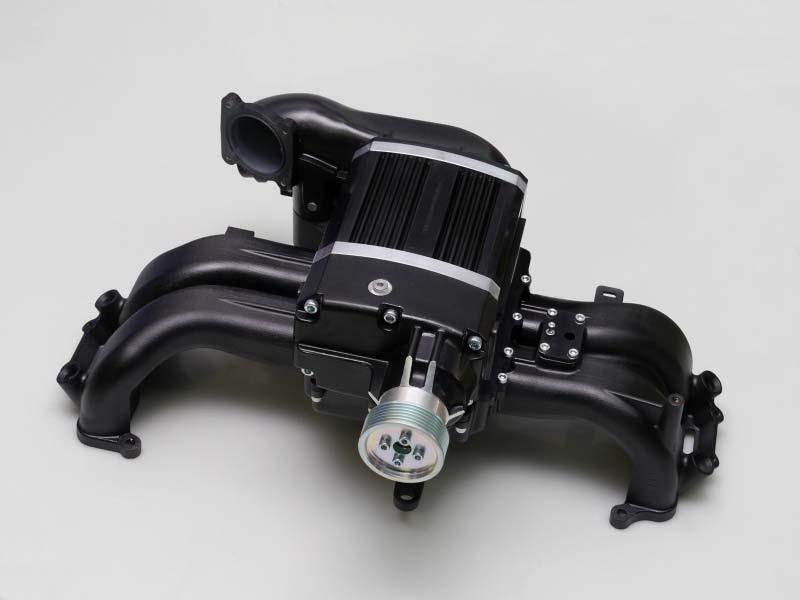

Cusco Japan Super Charger Kit - Toyota - 86 ZN6
Contact Us
Share this product on Socials
Regular price
$6,564.77
Regular price
-6%
$6,983.80
Sale price
$6,564.77
Description
Specifications:
Manufacturer: Cusco Japan
Reference Number: 965 720 B
The Cusco Supercharger Kit was developed exclusively for the ultra high compression naturally aspirated FA20 engine to further enhance the responsiveness and torque to match that of a 3.0 liter engine.
The end result is a Supercharger Kit that is completely bolt-on developed by using a highly efficient Sprintex unit as a base along with Cusco's product engineering knowledge.
Increased torque similar to that of a 3.0 liter engine
Twin screw type supercharger
Intercooled & Non-intercooled kits available
Completely bolt-on. No modifications necessary.
Power Data
Over a 30% increase in power output as compared to factory figures with a plentiful torque band that is usable in a dynamic range of conditions.
Cusco Supercharger Kit (Intercooled)
Peak Power: 208PS/7400rpm - 32.4% gain over factory
Peak Torque: 24.6kg-m/5600rpm - 43.0% gain over factory
ECU modification not included with kit
ECU MAP calibration (fuel, ignition) required after installation. May require additional components depending on varying conditions of vehicle setup. (Please inquire within for more details)
Pressure sensor included with kit (replaces factory unit)
Kit contents:
Supercharger Body (Intake manifold design)
Inlet pipe
Silicone band
Throttle body extension wiring
Air pressure sensor assembly
Air pressure sensor extension connector
Idle pulley
Drive belt (6PK-2615)
Cap bolt M14xP1.5x40
Idle pulley bracket
O ring intake manifold assembly flange
O ring throttle body assembly
Vacuum switching valve assembly
Bolt clip
0
Manufacturer: Cusco Japan
Reference Number: 965 720 B
The Cusco Supercharger Kit was developed exclusively for the ultra high compression naturally aspirated FA20 engine to further enhance the responsiveness and torque to match that of a 3.0 liter engine.
The end result is a Supercharger Kit that is completely bolt-on developed by using a highly efficient Sprintex unit as a base along with Cusco's product engineering knowledge.
Increased torque similar to that of a 3.0 liter engine
Twin screw type supercharger
Intercooled & Non-intercooled kits available
Completely bolt-on. No modifications necessary.
Power Data
Over a 30% increase in power output as compared to factory figures with a plentiful torque band that is usable in a dynamic range of conditions.
Cusco Supercharger Kit (Intercooled)
Peak Power: 208PS/7400rpm - 32.4% gain over factory
Peak Torque: 24.6kg-m/5600rpm - 43.0% gain over factory
ECU modification not included with kit
ECU MAP calibration (fuel, ignition) required after installation. May require additional components depending on varying conditions of vehicle setup. (Please inquire within for more details)
Pressure sensor included with kit (replaces factory unit)
Kit contents:
Supercharger Body (Intake manifold design)
Inlet pipe
Silicone band
Throttle body extension wiring
Air pressure sensor assembly
Air pressure sensor extension connector
Idle pulley
Drive belt (6PK-2615)
Cap bolt M14xP1.5x40
Idle pulley bracket
O ring intake manifold assembly flange
O ring throttle body assembly
Vacuum switching valve assembly
Bolt clip
0
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part fits:
86 | ZN6 (Spec A to E) | 2012-2018 | NA | 4U-GSE | H4
86 | ZN6 (Spec A to E) | 2012-2018 | NA | 4U-GSE | H4
RZCREW Tech!!
86 | ZN6 (Spec A to E) | 2012-2018 | NA | 4U-GSE | H4
