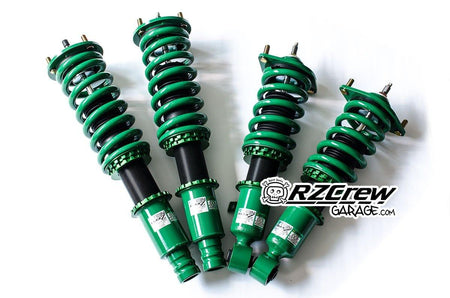

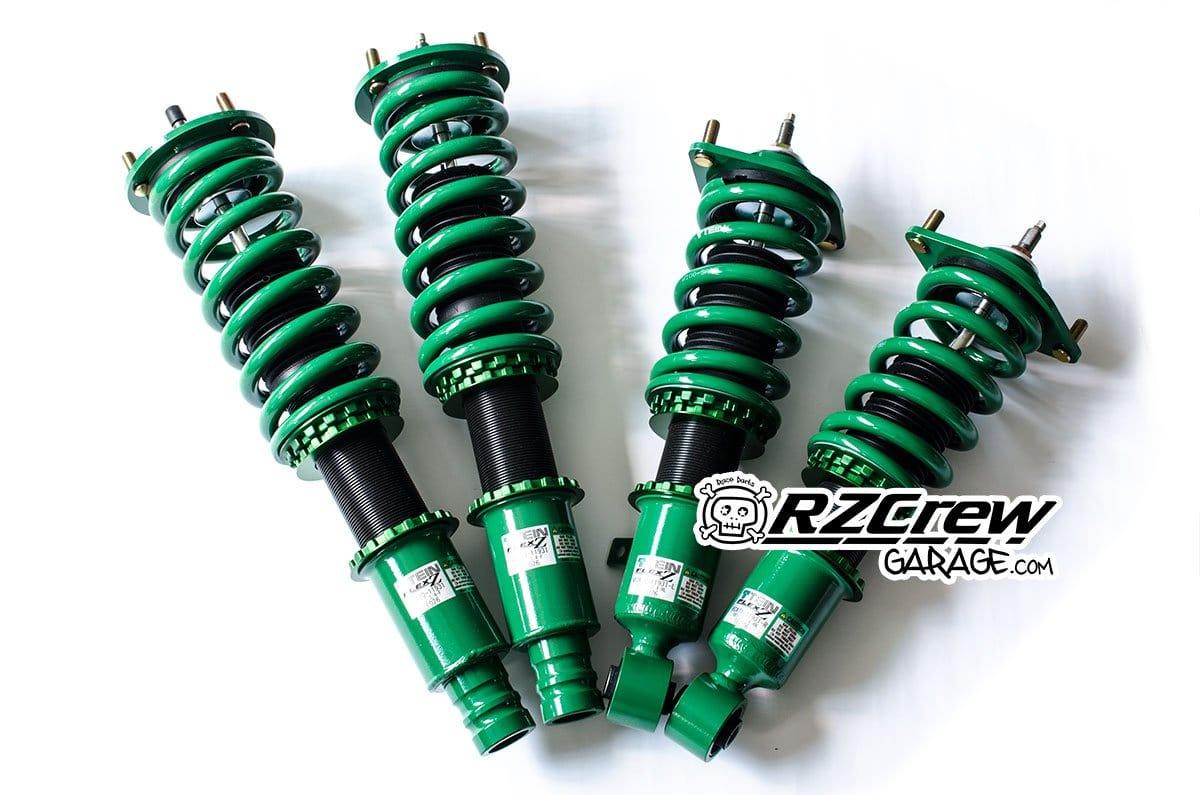

Tein Flex Z Coilover Kit - Honda Odyssey RB4
Contact Us
Share this product on Socials
Regular price
$1,052.33
Regular price
-6%
$1,125.00
Sale price
$1,052.33
Description
Specifications:
Manufacturer: Tein Japan
Part Number: VSA70-C1SS3
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -122mm ~ 17mm
- Recommended Height Adjustment Range: -55mm ~ -35mm
- Spring Rate: 10kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -128mm ~ -4mm
- Recommended Height Adjustment Range: -50mm ~ -30mm
- Spring Rate: 10kg
[Remarks] Remove the positioning bracket from the genuine shock absorber and use it with FT. As RR needs to remove the interior when adjusting the damping force, we recommend simultaneous installation of EDFC series. January 2006 has been fog lamps mounted vehicle production on or after 1 day, when the fog lamp lower edge height is less than the ground 250MM, you violate the safety standards. Please be sure to check the fog lamp height before purchasing.
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: FT: Cowl Top cover needs to be removed or processed. [EDFC Remarks]: After installing the motor on the shock absorber and checking the operation, installation on the vehicle is necessary. Waterproof processing is necessary for the motor, cable and coupling part with silicone sealant etc. Mounting is required so that the motor and the body are parallel.The Flex-Z uses the latest tech advancement by Tein to deliver a high-end, top quality ride with height and dampening adjustable coilovers, at an affordable price.
These coilovers are ideal for street and track use.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Twin tube structure for strength and comfort
- Complete kit with Tein upper mounts (except some models)
The Flex-Z adopts Tein's new "Sealed Structure", which has faster production time and costs, allowing the sales cost of the coilovers to be as low as possible.
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Tein Replacement Service:
As the sealed structure does not allow for rebuilding on the damper, Tein set up the Replacement Service, which allows you to get the damper only. Furthermore, you can request custom settings for the damping force specifications and/or stroke length, to the extent possible.
Because the original damper does not have to be returned, you can purchase and stock several replacement shock absorbers in different specifications for various purposes, not just as replacements for worn-out ones.
Warranty:
Manufacturer's 3 years warranty from purchase, within the range of 60,000Km from installation.
Strut Kits may not be available for your application. It is only included in your kit if available.
Manufacturer: Tein Japan
Part Number: VSA70-C1SS3
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -122mm ~ 17mm
- Recommended Height Adjustment Range: -55mm ~ -35mm
- Spring Rate: 10kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -128mm ~ -4mm
- Recommended Height Adjustment Range: -50mm ~ -30mm
- Spring Rate: 10kg
[Remarks] Remove the positioning bracket from the genuine shock absorber and use it with FT. As RR needs to remove the interior when adjusting the damping force, we recommend simultaneous installation of EDFC series. January 2006 has been fog lamps mounted vehicle production on or after 1 day, when the fog lamp lower edge height is less than the ground 250MM, you violate the safety standards. Please be sure to check the fog lamp height before purchasing.
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: FT: Cowl Top cover needs to be removed or processed. [EDFC Remarks]: After installing the motor on the shock absorber and checking the operation, installation on the vehicle is necessary. Waterproof processing is necessary for the motor, cable and coupling part with silicone sealant etc. Mounting is required so that the motor and the body are parallel.The Flex-Z uses the latest tech advancement by Tein to deliver a high-end, top quality ride with height and dampening adjustable coilovers, at an affordable price.
These coilovers are ideal for street and track use.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Twin tube structure for strength and comfort
- Complete kit with Tein upper mounts (except some models)
The Flex-Z adopts Tein's new "Sealed Structure", which has faster production time and costs, allowing the sales cost of the coilovers to be as low as possible.
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Tein Replacement Service:
As the sealed structure does not allow for rebuilding on the damper, Tein set up the Replacement Service, which allows you to get the damper only. Furthermore, you can request custom settings for the damping force specifications and/or stroke length, to the extent possible.
Because the original damper does not have to be returned, you can purchase and stock several replacement shock absorbers in different specifications for various purposes, not just as replacements for worn-out ones.
Warranty:
Manufacturer's 3 years warranty from purchase, within the range of 60,000Km from installation.
Strut Kits may not be available for your application. It is only included in your kit if available.
