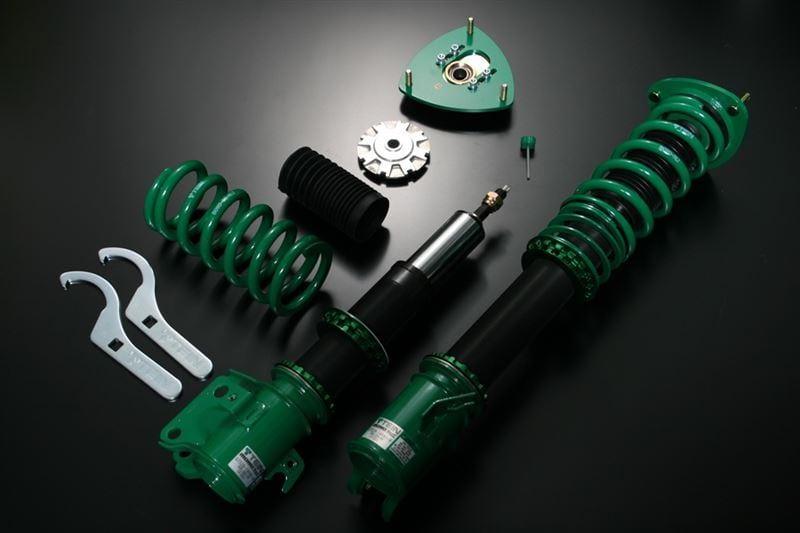

Tein Mono Sport Coilover Kit - Honda Integra DC5
Contact Us
Share this product on Socials
Regular price
$2,057.14
Regular price
-8%
$2,234.00
Sale price
$2,057.14
Description
Specifications:
Manufacturer: Tein Japan
Part Number: GSA02-71SS1
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: CAMBER ADJ
- Vehicle Height: -30mm
- Max Height Adjustment Range: -53mm ~ -2mm
- Recommended Height Adjustment Range: -40mm ~ -20mm
- Spring Rate: 12kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: P/U
- Vehicle Height: -30mm
- Max Height Adjustment Range: -66mm ~ 2mm
- Recommended Height Adjustment Range: -40mm ~ -20mm
- Spring Rate: 14kg
[Remarks] Adjustment range of camber is limited by vehicle characteristics. Please adjust the camber in the proper adjustment range of toe. FT: Since the left spring seat lock is the left screw, care must be taken in the tightening direction.
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: FT: It is necessary to remove or cut a bonnet insulator. When the clearance between the motor and the body side is small, it is necessary to install it as parallel to the body surface as possible.The Mono Sport is Tein's top of the line coilover.
These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Strut Kits may not be available for your application. It is only included in your kit if available.
Manufacturer: Tein Japan
Part Number: GSA02-71SS1
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: CAMBER ADJ
- Vehicle Height: -30mm
- Max Height Adjustment Range: -53mm ~ -2mm
- Recommended Height Adjustment Range: -40mm ~ -20mm
- Spring Rate: 12kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: P/U
- Vehicle Height: -30mm
- Max Height Adjustment Range: -66mm ~ 2mm
- Recommended Height Adjustment Range: -40mm ~ -20mm
- Spring Rate: 14kg
[Remarks] Adjustment range of camber is limited by vehicle characteristics. Please adjust the camber in the proper adjustment range of toe. FT: Since the left spring seat lock is the left screw, care must be taken in the tightening direction.
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: FT: It is necessary to remove or cut a bonnet insulator. When the clearance between the motor and the body side is small, it is necessary to install it as parallel to the body surface as possible.The Mono Sport is Tein's top of the line coilover.
These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Strut Kits may not be available for your application. It is only included in your kit if available.
Taxes & Shipping
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
Fitting information
This part Fits :
Integra | DC5 | 2002-2006 | NA | K20Z1 | I4
Integra | DC5 | 2002-2006 | NA | K20Z1 | I4
RZCREW Tech!!
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
