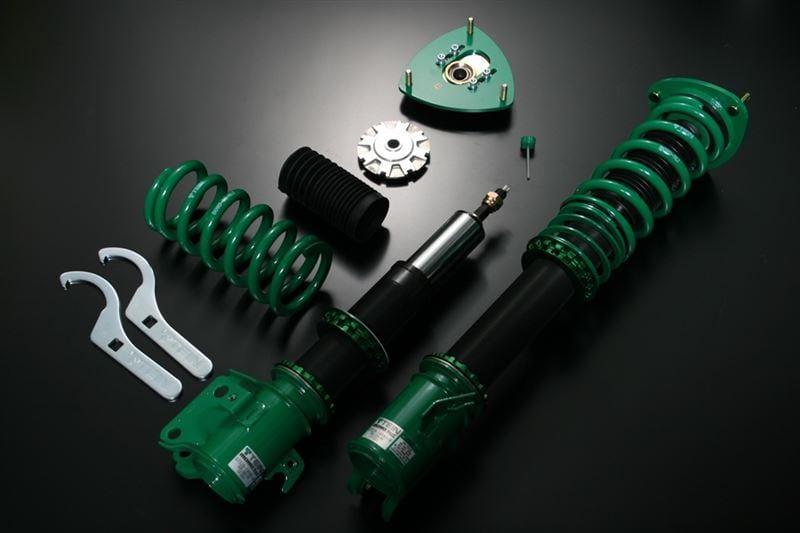

Tein Mono Sport Coilover Kit - Suzuki Swift Sport ZC32S
Specifications:
Manufacturer: Tein Japan
Part Number: GSU86-61AS2
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: STD
- Vehicle Height: -35mm
- Max Height Adjustment Range: -79mm ~ -9mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 8kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: STD
- Vehicle Height: -35mm
- Max Height Adjustment Range: -55mm ~ 0mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 5kg
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: It is necessary to remove or process the interior service hole cover.The Mono Sport is Tein's top of the line coilover.
These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Strut Kits may not be available for your application. It is only included in your kit if available.
Manufacturer: Tein Japan
Part Number: GSU86-61AS2
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: STD
- Vehicle Height: -35mm
- Max Height Adjustment Range: -79mm ~ -9mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 8kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: STD
- Vehicle Height: -35mm
- Max Height Adjustment Range: -55mm ~ 0mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 5kg
EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: It is necessary to remove or process the interior service hole cover.The Mono Sport is Tein's top of the line coilover.
These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.
Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Strut Kits may not be available for your application. It is only included in your kit if available.
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :
Swift | ZC72S | 2010-2018 | NA | K12B | I4
Swift | ZC72S | 2010-2018 | NA | K12B | I4
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
