Tein Mono Sport Coilover Kit - Toyota Vellfire ANH25W(Vellfire)

Check products, lead time and fitting infos in the tabs below!
Sku: GSC86-71AS3
Vendor: Tein
Availability: Usually ships within 10 to 20 days.
Shipping time is additional. Choose your option in the cart page.
$1,959.70 $2,158.00
Maximum quantity available reached.
Specifications:
Manufacturer: Tein Japan
Part Number: GSC86-71AS3
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: R/U
- Vehicle Height: -35mm
- Max Height Adjustment Range: -77mm ~ 25mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 6kg

Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: Yes
- Mount: STD
- Vehicle Height: -40mm
- Max Height Adjustment Range: -62mm ~ -19mm
- Recommended Height Adjustment Range: -50mm ~ -30mm
- Spring Rate: 8kg

[Remarks] Processing of genuine dust boots is necessary.  When adjusting the height of the car, it is necessary to remove the HAS from the vehicle once.

EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: It is necessary to remove or process the interior service hole cover. Installation is necessary so that the motor and the body are parallel. When using the third seat, care must be taken because the clearance with the motor is small.The Mono Sport is Tein's top of the line coilover.

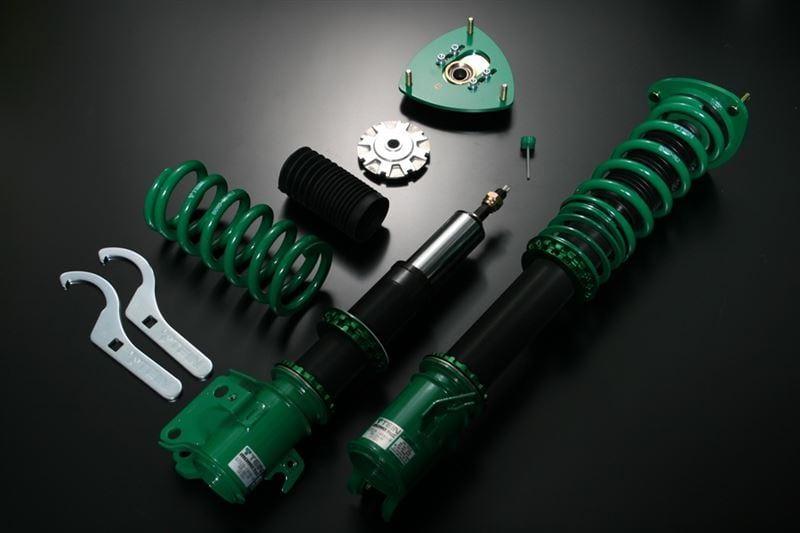

These coilovers are made by analysing the handling characteristics of each model to come up with the best possible settings for each individual model. They are the ultimate weapon for both street and track.

Features:
- Full Length Ride Adjustment with little or no change in ride quality
- 16-level dampening force adjustment system
- Mono tube structure for linear damping force and better road feedback
- Complete kit with Tein upper mounts (except some models)
- Rebuildable coilovers

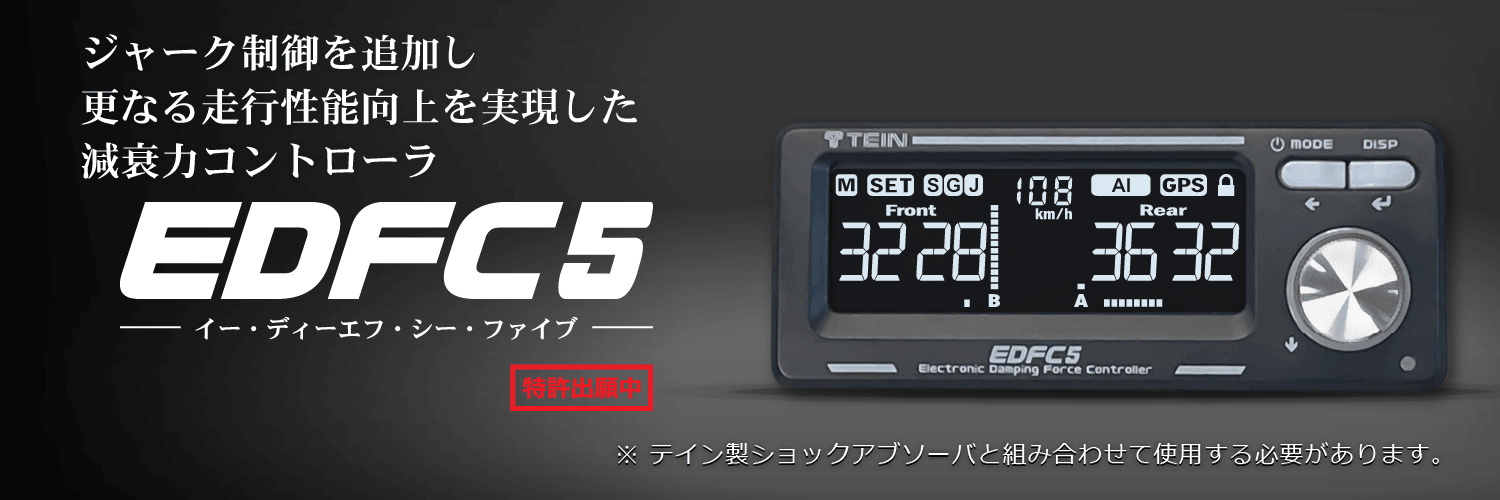

EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Strut Kits may not be available for your application. It is only included in your kit if available.
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

Alphard | ANH25W | 2008-2015 | NA | 2AZ-FE | I4
