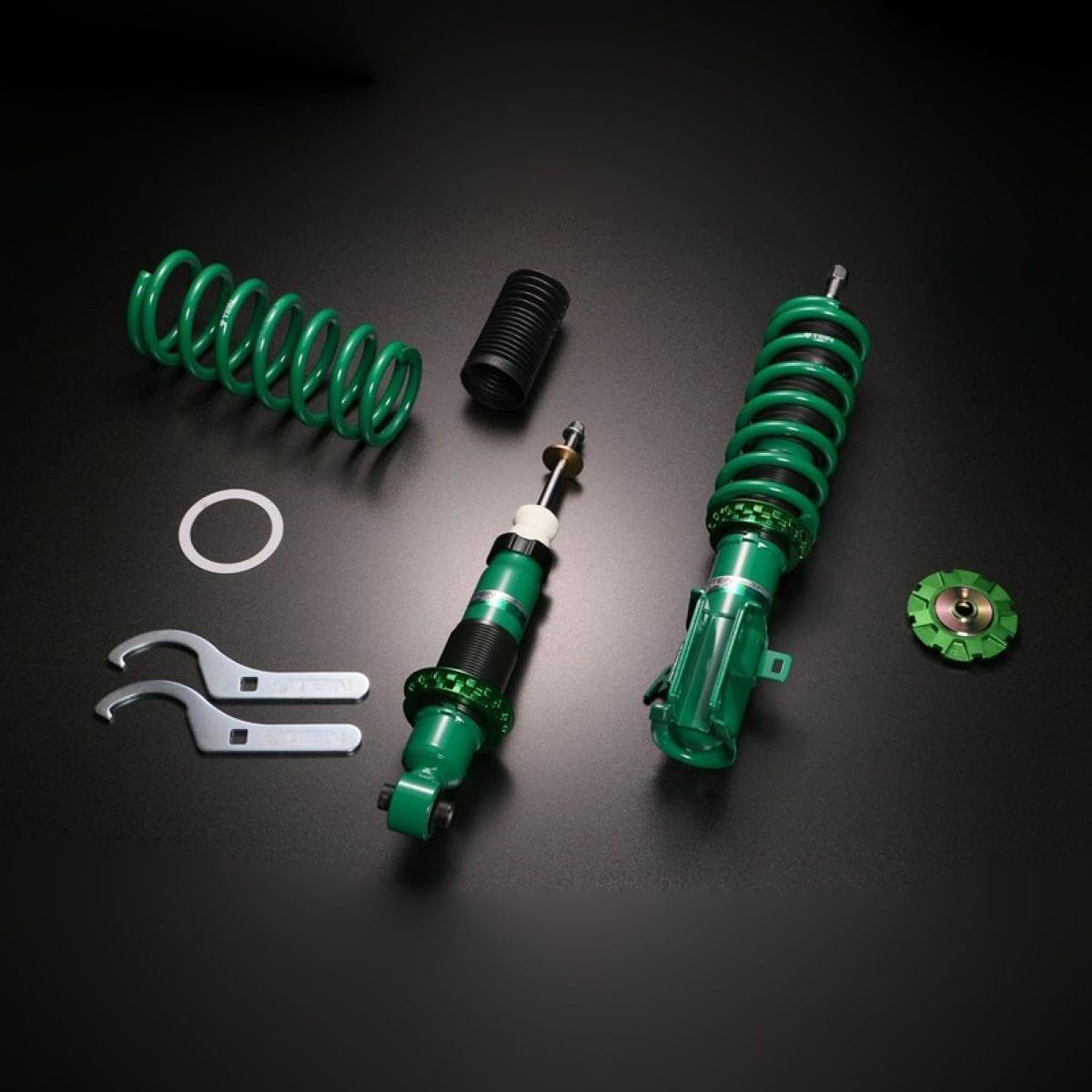

Tein Street Advance Z Coilover Kit - Mazda 2 Demio DE5FS
Specifications:
Manufacturer: Tein Japan
Part Number: GSM90-91AS3
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Standard
- Vehicle Height: -45mm
- Max Height Adjustment Range: -80mm ~ -37mm
- Recommended Height Adjustment Range: -55mm ~ -37mm
- Spring Rate: 2.5kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -54mm ~ -13mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 1.9kg
[Remarks] Processing of spring insulator is necessary.
EDFC Compatible: Position Not Confirmed
[EDFC Remarks]: Waterproof processing is necessary for the motor, cable and coupling part with silicone sealant etc.The Street Advance Z uses the latest tech advancement by Tein to deliver a comfortable ride with height and dampening adjustable coilovers, at an affordable price.
These coilovers are made for comfortable street use, and spirited road driving.
Features:
- Thread Type Ride Adjustment
- 16-level dampening force adjustment system
- Twin tube structure for strength and comfort
- Uses OE mounts (not included in the kit)
The Street Advance Z adopts Tein's new "Sealed Structure", which has faster production time and costs, allowing the sales cost of the coilovers to be as low as possible.

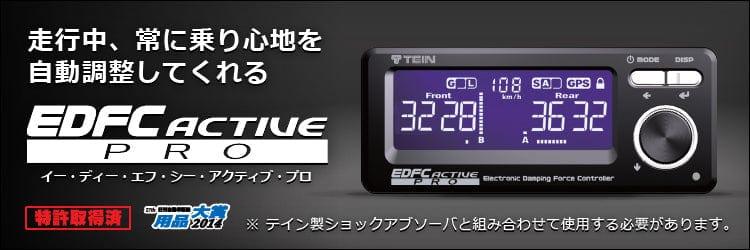

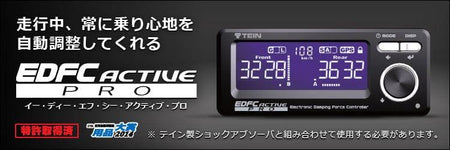

EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Warranty:
Manufacturer's 3 years warranty from purchase, within the range of 60,000Km from installation.
Strut Kits may not be available for your application. It is only included in your kit if available.
Manufacturer: Tein Japan
Part Number: GSM90-91AS3
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Standard
- Vehicle Height: -45mm
- Max Height Adjustment Range: -80mm ~ -37mm
- Recommended Height Adjustment Range: -55mm ~ -37mm
- Spring Rate: 2.5kg
Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Reinforced Rubber
- Vehicle Height: -35mm
- Max Height Adjustment Range: -54mm ~ -13mm
- Recommended Height Adjustment Range: -45mm ~ -25mm
- Spring Rate: 1.9kg
[Remarks] Processing of spring insulator is necessary.
EDFC Compatible: Position Not Confirmed
[EDFC Remarks]: Waterproof processing is necessary for the motor, cable and coupling part with silicone sealant etc.The Street Advance Z uses the latest tech advancement by Tein to deliver a comfortable ride with height and dampening adjustable coilovers, at an affordable price.
These coilovers are made for comfortable street use, and spirited road driving.
Features:
- Thread Type Ride Adjustment
- 16-level dampening force adjustment system
- Twin tube structure for strength and comfort
- Uses OE mounts (not included in the kit)
The Street Advance Z adopts Tein's new "Sealed Structure", which has faster production time and costs, allowing the sales cost of the coilovers to be as low as possible.
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.
Warranty:
Manufacturer's 3 years warranty from purchase, within the range of 60,000Km from installation.
Strut Kits may not be available for your application. It is only included in your kit if available.
Taxes:
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Singapore and Malaysia: All import taxes are included in our pricing.
Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :
2 Demio | DEJFS | 2011-2014 | NA | P3-VPS | I4
2 Demio | DEJFS | 2011-2014 | NA | P3-VPS | I4
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
