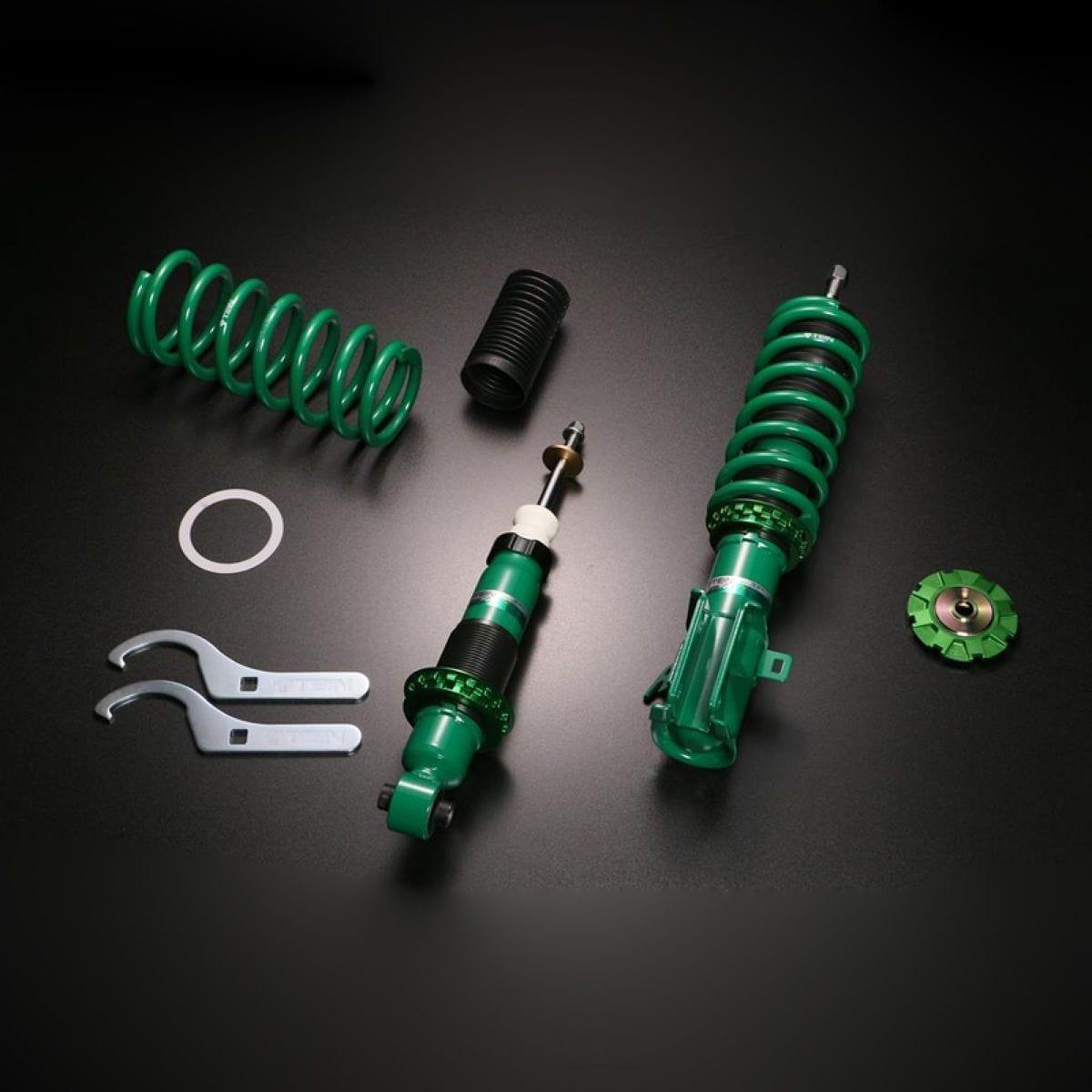

Tein Street Advance Z Coilover Kit - Toyota Esquire ZRR80G(Esquire)

Check products, lead time and fitting infos in the tabs below!
Sku: GSQ98-91AS2
Vendor: Tein
Availability: Usually ships within 10 to 20 days.
Shipping time is additional. Choose your option in the cart page.
$1,002.40 $1,104.00
Maximum quantity available reached.
Specifications:
Manufacturer: Tein Japan
Part Number: GSQ98-91AS2
Front:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Standard
- Vehicle Height: -45mm
- Max Height Adjustment Range: -80mm ~ -32mm
- Recommended Height Adjustment Range: -55mm ~ -35mm
- Spring Rate: 4kg

Rear:
- Damping Adjustable: Yes
- Full Length Adjustable: No
- Mount: Standard
- Vehicle Height: -55mm
- Max Height Adjustment Range: -77mm ~ -41mm
- Recommended Height Adjustment Range: -65mm ~ -45mm
- Spring Rate: 6kg



EDFC Compatible: Yes, available as an option above.
[EDFC Remarks]: When not using themotor extension kit,[EDFC Remarks]:[EDFC Remarks]: It is necessary to remove or cut the service hole cover. Installation is necessary so that the motor and the body are parallel.The Street Advance Z uses the latest tech advancement by Tein to deliver a comfortable ride with height and dampening adjustable coilovers, at an affordable price.
These coilovers are made for comfortable street use, and spirited road driving.

Features:
- Thread Type Ride Adjustment
- 16-level dampening force adjustment system
- Twin tube structure for strength and comfort
- Uses OE mounts (not included in the kit)

The Street Advance Z adopts Tein's new "Sealed Structure", which has faster production time and costs, allowing the sales cost of the coilovers to be as low as possible.
EDFC compatible (EDFCII, ACTIVE and ACTIVE PRO) for remote electronic adjustment of the dampening via commands in the cabin.
Powder-coated with Tein's signature green, and coated with "ZT-Coating" to keep rust at bay, making them ideal for people living in snowy areas or near the sea.

Warranty:
Manufacturer's 3 years warranty from purchase, within the range of 60,000Km from installation.
Strut Kits may not be available for your application. It is only included in your kit if available.
Taxes:

Singapore and Malaysia: All import taxes are included in our pricing.

Rest of the World: Other countries may have to pay their local import tax depending on your country's regulations.
Shipping:

This product will be shipped from our Japanese Warehouse to any global location. Shipping via DHL within 3 to 7 days depending on location and local custom check. Allow two additional days for order processing.
Every Monday our team keeps you in the loop by sending out an "estimated time of arrival" email.
This part Fits :

Esquire | ZRR80G | 2014-2018 | NA | 3ZR-FE | I4
The RZCrew team listed this item for its performance and trusted reliability.
Reliable coilovers are important for your safety, don't settle for cheap parts that fail. Buy original!
