Trust Greddy Sirius Vision Gauge - 68mm

Check products, lead time and fitting infos in the tabs below!
Sku: 16001720
Vendor: Trust Greddy
Availability: Usually ships within 20 to 30 days.
Shipping time is additional. Choose your option in the cart page.
$444.70 $549.30
Maximum quantity available reached.
Specifications:
Manufacturer: Trust Greddy
Part Number: 16001720
Information Displayed: Boost,Water temperature,Oil Temperature,Oil Pressure,Fuel Pressure
Type: Sirius System
Comunication: Analog
Dimension: 68mm
Illumination Colour: Yellow
Reading limitation :
Unit: Metric

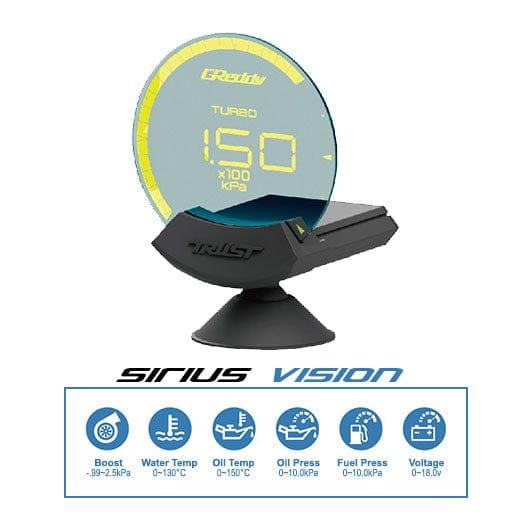

TRUST SIRIUS VISION is designed around an advanced thin-film electro luminescent display. The unique clear screen with intense lighting allows the unit to be used as a heads up display or to be combined with a Sirius Meter to overlay additional information. The vision system is a 66mm sleek gauge sold simply as it is (Only battery voltage is displayed as basic information). Sensors kits are sold separetly and read up to 6 different type of informations:
Boost meter
Water temperature gauge
Oil temperature gauge
Oil pressure gauge
Fuel pressure gauge

The vision system includes a dimmer function that can change the screen brightness according to the headlight ON / OFF. Similar to the Defi advance Link system the Sirius gauges line up needs an external control unit to function. The Sirius control unit is available in our shop reference: 16001721. The Sirius control unit is able to accepts 7 unique informations and create the daisy chain.

To display different information on the vision system and create a dual display, you could buy a sensor kit & harness kit separetly, they are listed in our shop ( Sold separetly). References as follow:
Boost sensor kit: 16401940
Temperature Sensor kit: 16401941
Pressure sensor kit: 16401942
Temperature Harness kit: 16401932
Pressure harness kit: 16401931 (To be used with boost and pressure sensor)

Reading Specification:
Boost pressure: -0.99 to 2.5 Bars
Water temp: 0 to 130 degree celcius
Oil temp: 0 to 150 degree celcius
Oil pressure: 0 to 10 Kpa/ Bars
Fuel pressure: 0 to 10 Kpa/ Bars

This part is universal yet please check the below size diagram to ensure a perfect fitting:
